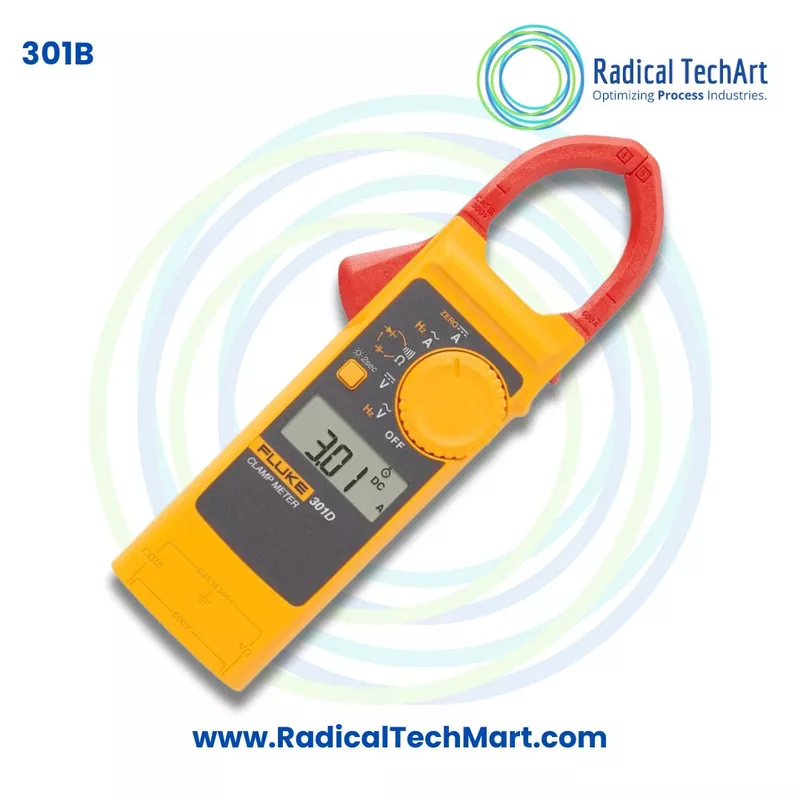

Fluke 301B 600A AC Clamp Meter with Test Leads

A. Product Overview

The Fluke 301B 600A AC Clamp Meter with Test Leads is a portable electrical measuring instrument suitable for technicians, electricians and maintenance professionals. Its clamp design allows AC current to be measured without disconnecting or opening the conductor.

The meter can measure:

• AC current up to 600A
• AC voltage up to 600V
• DC voltage up to 600V
• Resistance up to 60 kΩ
• Capacitance up to 999.9 µF
• Voltage frequency up to 99.99 kHz
• AC current frequency from 45 Hz to 400 Hz
• Continuity with audible indication
• Diode forward voltage

The Fluke 301B includes a backlit display for use in poorly illuminated panels and work areas. Its slim body measures approximately 190 mm by 52 mm by 16 mm, weighs about 132 g with batteries and has a 34 mm jaw opening.

Additional functions include:

• 6000-count LCD display
• Data Hold
• Hazardous-voltage warning
• Automatic power-off after approximately 20 minutes
• Backlight automatic shut-off
• Low-battery indication
• Two AAA battery operation
• CAT III 300V measurement safety rating

B. Working Principle

AC Current Measurement

The Fluke 301B measures AC current through the clamp jaw. When the jaw is positioned around a single current-carrying conductor, the meter senses the magnetic field generated by the alternating current and converts it into a current reading.

The circuit does not normally need to be disconnected for clamp-current measurement. Only one conductor should be enclosed inside the jaw for accurate measurement.

AC and DC Voltage Measurement

For voltage testing, the black test lead is connected to the COM terminal and the red test lead is connected to the voltage and resistance input terminal. The probes are then placed across the required circuit or test points.

The meter displays the measured AC or DC voltage according to the selected rotary-switch position.

Resistance and Continuity Measurement

During resistance measurement, the meter applies a small internal test signal through the component and calculates its resistance.

For continuity testing, the meter checks whether a complete electrical path exists. When the resistance is below approximately 30 Ω, the audible buzzer sounds continuously.

Capacitance Measurement

The meter measures capacitance by charging the capacitor with a known current, measuring the resulting voltage and calculating the capacitance value. The capacitor must be disconnected and safely discharged before testing.

Frequency Measurement

Frequency can be measured through the test leads while measuring AC voltage or through the clamp jaw while measuring AC current. This helps technicians check the operating frequency of electrical supplies, machines and equipment.

C. Why the Fluke 301B Is Used

The Fluke 301B is used to inspect, diagnose and maintain electrical systems without requiring separate instruments for every basic measurement.

Non-Intrusive AC Current Measurement

The clamp jaw allows technicians to measure AC current without disconnecting the wire. This makes current measurement quicker and reduces interruption to operating equipment.

Electrical Fault Detection

Voltage, resistance and continuity functions help identify problems such as:

• Open circuits
• Loose connections
• Broken wires
• Failed components
• Incorrect supply voltage
• Overloaded circuits
• Abnormal motor current
• Faulty capacitors
• Defective diodes

Industrial and Commercial Maintenance

The meter is useful for checking electrical panels, distribution boards, motors, pumps, compressors, HVAC equipment, control panels and general electrical machinery.

Improved Visibility

The Fluke 301B has a backlit display that improves reading visibility in dimly lit control panels, electrical rooms and machine areas.

Safer Voltage Identification

A hazardous-voltage symbol appears when the meter detects voltage above approximately 30V or a voltage overload condition. This warning can remain active even when the Data Hold function is being used.

D. Suitable Buyers

The Fluke 301B is suitable for:

• Industrial electricians
• Electrical maintenance engineers
• Electrical contractors
• HVAC and refrigeration technicians
• Control-panel manufacturers
• Facility maintenance teams
• Machine maintenance technicians
• Motor and pump service technicians
• Electrical inspection professionals
• Technical training institutes
• Manufacturing plants
• Commercial building maintenance departments
• Solar and electrical installation technicians
• Field-service engineers

It is especially suitable for users who need a compact meter for regular AC current, voltage, continuity, resistance, frequency, capacitance and diode testing.

Frequently Asked Questions

1. What is the maximum AC current range of the Fluke 301B?

The Fluke 301B can measure AC current up to 600A using its clamp jaw. Its AC current ranges are 60A and 600A.

2. Can the Fluke 301B measure DC current?

No. The Fluke 301B clamp jaw is designed for AC current measurement. It can measure DC voltage through the supplied test leads, but it does not measure DC current through the jaw.

3. Can it measure AC and DC voltage?

Yes. The meter supports AC voltage and DC voltage measurements up to 600V through the test leads.

4. Is the Fluke 301B a True RMS clamp meter?

No. According to the Fluke 301A, 301B and 301C manual, the True RMS feature applies to the Fluke 301C model. The Fluke 301B is not specified as a True RMS model.

5. Does the Fluke 301B have a backlit display?

Yes. The Fluke 301B has a display backlight for improved readability in dark or poorly illuminated work areas. The backlight normally switches off automatically after approximately two minutes of inactivity.

6. What is the jaw-opening size?

The Fluke 301B has a maximum jaw opening of approximately 34 mm.

7. Does the meter have a Data Hold function?

Yes. The Data Hold function freezes the displayed measurement so that the reading can be viewed after the meter is removed from the test position.

8. Can the Fluke 301B test continuity?

Yes. It provides audible continuity testing. The buzzer sounds continuously when the measured resistance is below approximately 30 Ω.

9. Can it measure capacitance?

Yes. The Fluke 301B can measure capacitance from the microfarad range up to 999.9 µF. The capacitor must be disconnected and discharged before measurement.

10. Can it test diodes?

Yes. The meter includes a diode-test function with a measurement range up to 3.000V.

11. Does the Fluke 301B measure frequency?

Yes. It can measure frequency through the voltage test leads and can also measure AC current frequency through the clamp jaw.

12. What batteries are required?

The Fluke 301B operates using two AAA alkaline batteries. The specified battery life is approximately 500 hours under stated operating conditions.

13. Does it have automatic power-off?

Yes. The meter automatically switches off after approximately 20 minutes without use to conserve battery power.

14. What is the safety rating of the Fluke 301B?

The Fluke 301B is specified according to IEC 61010 standards and carries a CAT III 300V measurement-category rating.

15. Where can the Fluke 301B be used?

It can be used for electrical panels, control systems, motors, pumps, compressors, HVAC equipment, commercial buildings, manufacturing plants and general electrical troubleshooting.
