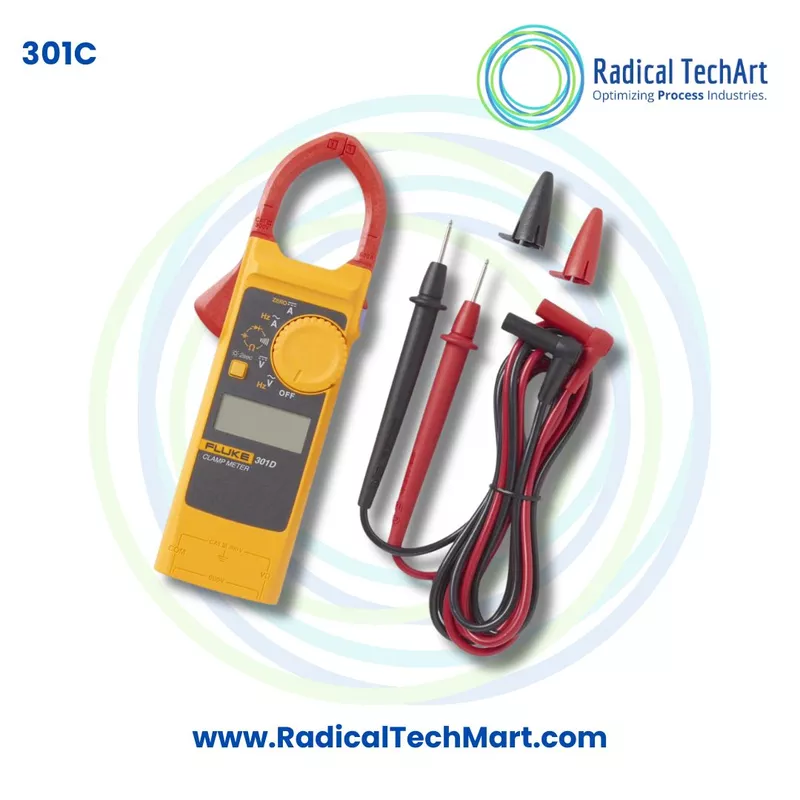

Fluke 301C 1000A AC True RMS Clamp Meter with Test Leads
Customize
Share :
A. Product Overview
The Fluke 301C 1000A AC True RMS Clamp Meter with Test Leads is designed for electricians, maintenance engineers, panel technicians and industrial service professionals who need to measure high AC current without disconnecting the conductor.
The Fluke 301C uses a clamp jaw for current measurement and supplied test leads for voltage, resistance, continuity, capacitance, frequency and diode testing. The meter supports True RMS measurement, making it suitable for measuring AC waveforms that may be distorted by modern electrical equipment.
The Fluke 301C measures:
- AC current up to 1000 A
- AC voltage up to 600 V
- DC voltage up to 600 V
- Resistance up to 60 kΩ
- Capacitance up to 999.9 µF
- Voltage frequency from 1 Hz to 99.99 kHz
- AC current frequency from 45 Hz to 400 Hz
- Diode forward voltage up to 3 V
- Continuity with an audible beeper
The instrument has a 6000-count LCD that updates approximately three times per second. It also includes a display backlight, display hold function, hazardous-voltage indicator, low-battery indication and automatic power-off after approximately 20 minutes of inactivity.
Its compact body measures approximately 190 mm long, 52 mm wide and 16 mm thick. The meter weighs about 132 g with batteries and has a 34 mm jaw opening for clamping around individual conductors.
Main Technical Features
Model: Fluke 301C
Measurement type: True RMS
Maximum AC current: 1000 A
Maximum AC voltage: 600 V
Maximum DC voltage: 600 V
Resistance range: Up to 60 kΩ
Capacitance range: Up to 999.9 µF
Voltage frequency range: 1 Hz to 99.99 kHz
AC current frequency range: 45 Hz to 400 Hz
Jaw opening: 34 mm
Display: 6000-count LCD
Backlight: Available
Display hold: Available
Continuity threshold: Approximately 30 Ω
Safety rating: CAT III 300 V
Ingress protection: IP30 when not operating
Power supply: Two AAA alkaline batteries
Specified battery life: Up to approximately 500 hours
Automatic power-off: Approximately 20 minutes
Operating temperature: Minus 10°C to 50°C
Weight with batteries: Approximately 132 g
Compatible test leads: Fluke TL75 test leads
B. Working Principle
AC Current Measurement Using the Clamp Jaw
The Fluke 301C measures AC current by detecting the magnetic field produced around a current-carrying conductor.
When alternating current flows through a wire, it produces a changing magnetic field. After the clamp jaw is positioned around one conductor, the meter senses this magnetic field and converts it into an electrical signal. The internal measuring circuit processes the signal and displays the current value in amperes.
This method allows current to be measured without:
- Disconnecting the conductor
- Cutting the wire
- Opening the circuit
- Connecting the meter in series
For correct current measurement, the clamp should normally be placed around only one conductor. Clamping around both the live and neutral conductors may cause their magnetic fields to cancel each other, producing an incorrect or near-zero reading.
The test leads should be removed from the input terminals before measuring current with the clamp jaw.
True RMS Measurement Principle
True RMS stands for True Root Mean Square. It represents the effective value of an AC voltage or current based on its equivalent heating effect.
Basic averaging meters are generally most accurate on clean sinusoidal waveforms. However, many modern electrical loads produce distorted or non-sinusoidal waveforms. These loads may include:
- Variable frequency drives
- Electronic power supplies
- Motor speed controllers
- LED lighting systems
- Inverters
- Switching equipment
- Industrial control systems
The Fluke 301C samples the AC waveform and calculates its effective RMS value. This provides more reliable measurements on distorted AC signals than a conventional average-responding meter.
AC and DC Voltage Measurement
Voltage is measured using the supplied test leads.
The black test lead is connected to the COM terminal, while the red test lead is connected to the voltage and resistance terminal. The test probes are then placed across the two circuit test points.
The meter can measure:
- AC voltage up to 600 V
- DC voltage up to 600 V
A hazardous-voltage symbol appears when the meter detects a voltage above approximately 30 V or an input overload in a voltage-measurement function.
Resistance Measurement
In resistance mode, the meter applies a small internal test signal through the test leads. It measures the circuit response and calculates the resistance value.
The circuit must be switched off before resistance testing. The Fluke 301C measures resistance up to 60 kΩ.
Continuity Testing
Continuity testing checks whether an uninterrupted low-resistance electrical path exists between two points.
When the measured resistance is below approximately 30 Ω, the meter produces a continuous audible tone. This function helps technicians quickly identify:
- Broken wires
- Open fuses
- Loose connections
- Damaged switches
- Incomplete circuits
- Faulty cable connections
Power must be removed from the circuit before performing a continuity test.
Capacitance Measurement
The Fluke 301C measures capacitance by charging the capacitor using a known internal current, measuring the resulting voltage and calculating the capacitance value.
Before capacitance testing:
- Switch off the circuit.
- Remove the capacitor from the circuit where necessary.
- Confirm that the capacitor is not energized.
- Safely discharge the capacitor.
- Connect the test leads across its terminals.
The Fluke 301C supports capacitance measurements up to 999.9 µF.
Frequency Measurement
The meter can measure frequency in two ways:
- Through the test leads while measuring AC voltage
- Through the clamp jaw while measuring AC current
The voltage frequency range extends from 1 Hz to 99.99 kHz. AC current frequency can be measured from 45 Hz to 400 Hz.
Diode Testing
The diode-test function measures the forward-bias voltage of a diode.
The red test probe is connected to the diode anode and the black test probe to the cathode. The displayed forward voltage helps the technician assess the diode and identify its polarity. Reversing the test leads should normally produce an open-circuit indication for a functioning diode.
C. Why Is the Fluke 301C Used?
High-Current AC Measurement
The Fluke 301C measures AC current up to 1000 A, making it suitable for testing high-current electrical feeders, large motors, distribution systems, industrial machinery and power equipment.
Non-Intrusive Current Testing
The clamp design allows current to be measured without disconnecting wiring. This makes electrical testing faster and reduces unnecessary interruption of equipment.
Accurate Measurement of Distorted AC Waveforms
True RMS measurement is useful when testing non-linear electrical loads that do not produce a clean sine wave. This improves measurement reliability when working with drives, inverters, switching power supplies and electronic loads.
Electrical Troubleshooting
The Fluke 301C can help identify:
- Excessive current draw
- Motor overload
- Incorrect supply voltage
- Open circuits
- Broken conductors
- High-resistance connections
- Defective capacitors
- Faulty diodes
- Frequency problems
- Abnormal equipment operation
Preventive Maintenance
Regular current and voltage measurements help maintenance teams identify unusual operating conditions before equipment failure occurs.
For example, an unexpected rise in motor current may indicate mechanical loading, bearing wear, phase problems or developing motor faults.
Motor and Drive Testing
The meter can be used to check AC current drawn by motors and electrical equipment. Its True RMS capability is particularly useful when the waveform is affected by electronic motor-control systems.
Control Panel Maintenance
Its compact 16 mm body and lightweight construction make it easier to use in crowded electrical panels, distribution boards, switchboards and control cabinets.
Component Testing
The resistance, continuity, capacitance and diode functions allow technicians to test wiring and common electrical components using one portable instrument.
Improved Visibility in Dark Work Areas
The backlit display improves reading visibility inside panels, plant rooms, equipment cabinets and other poorly illuminated areas.
Convenient Field Operation
The display hold function allows a measurement to remain visible after the meter has been removed from a difficult test position. Automatic power-off helps conserve battery power during field use.
D. Suitable Buyers
Industrial Electricians
Suitable for checking high-current AC circuits, motors, feeders, control panels and industrial electrical installations.
Electrical Maintenance Engineers
Useful for routine inspection, breakdown troubleshooting and preventive maintenance of electrical equipment.
Factory Maintenance Departments
Appropriate for maintenance teams working in manufacturing plants, processing facilities, packaging units and production environments.
Electrical Contractors
Suitable for commissioning and testing switchboards, distribution boards, feeders and installed electrical equipment.
Panel Builders
Useful for testing control panels, power panels, contactors, relays, wiring and electrical circuits during assembly and commissioning.
Motor Service Technicians
Suitable for checking motor current, supply voltage, winding continuity and associated electrical components.
HVAC and Refrigeration Technicians
Useful for measuring compressor and motor current, supply voltage, capacitor value, continuity and control wiring.
Facility Management Teams
Suitable for maintaining electrical systems in commercial buildings, warehouses, hospitals, offices, hotels and institutional facilities.
Power Distribution Technicians
Useful for checking current and voltage in distribution circuits, feeders and electrical panels within the meter’s safety ratings.
Solar and Inverter Service Technicians
Suitable for measuring AC output current, AC voltage and related electrical parameters on supported inverter and solar-power systems. The Fluke 301C does not measure DC current.
Technical Training Institutes
Useful for demonstrating practical AC current measurement, True RMS testing, voltage measurement, continuity testing and component diagnostics.
Electrical Equipment Dealers and Distributors
Suitable for businesses supplying professional electrical testing instruments to industrial and commercial customers.
Frequently Asked Questions
1. What is the maximum current range of the Fluke 301C?
The Fluke 301C measures AC current up to 1000 A using the clamp jaw.
2. Is the Fluke 301C a True RMS clamp meter?
Yes. The Fluke 301C includes True RMS measurement for AC current and voltage testing.
3. Why is True RMS important?
True RMS provides more reliable readings on distorted or non-sinusoidal AC waveforms produced by electronic loads, drives, inverters and switching equipment.
4. Can the Fluke 301C measure DC current?
No. The Fluke 301C measures AC current only. It can measure both AC voltage and DC voltage using test leads.
5. Can the Fluke 301C measure AC and DC voltage?
Yes. It measures AC voltage up to 600 V and DC voltage up to 600 V.
6. Are test leads included with the Fluke 301C?
This product configuration is supplied with test leads. The Fluke manual identifies the TL75 test lead set as the compatible replacement test-lead assembly.
7. How is current measured with the Fluke 301C?
Select the AC current function, open the clamp jaw, place it around one current-carrying conductor and read the measurement on the LCD.
8. Does the wire need to be disconnected before current measurement?
No. The clamp measures current without disconnecting or cutting the conductor.
9. Can the clamp be placed around more than one wire?
For normal current measurement, the clamp should be placed around one conductor. Clamping live and neutral together may result in magnetic-field cancellation and an incorrect reading.
10. What is the jaw-opening size?
The Fluke 301C has a jaw opening of approximately 34 mm.
11. Does the Fluke 301C have a backlit display?
Yes. The Fluke 301C has a backlight for improved readability in dim work areas. The backlight normally switches off automatically after approximately two minutes of inactivity.
12. Does it have a display hold function?
Yes. The hold function freezes the reading on the display so it can be viewed or recorded after measurement.
13. Does the meter warn the user about hazardous voltage?
Yes. The hazardous-voltage indicator appears when the meter detects voltage above approximately 30 V or a voltage-overload condition.
14. What is the maximum resistance range?
The Fluke 301C measures resistance up to 60 kΩ.
15. Can the Fluke 301C test capacitors?
Yes. It measures capacitance up to 999.9 µF. The capacitor must be safely discharged before testing.
16. Can it measure frequency?
Yes. It measures voltage frequency from 1 Hz to 99.99 kHz and AC current frequency from 45 Hz to 400 Hz.
17. Can the Fluke 301C test diodes?
Yes. It includes a diode-test function with a measurement range up to 3 V.
18. What is the continuity threshold?
The continuity beeper sounds when the measured resistance is below approximately 30 Ω.
19. What type of display is used?
The Fluke 301C uses a 6000-count LCD that updates approximately three times per second.
20. What batteries does the Fluke 301C use?
It uses two AAA IEC LR03 alkaline batteries. The manual specifies a battery life of up to approximately 500 hours under stated operating conditions.
