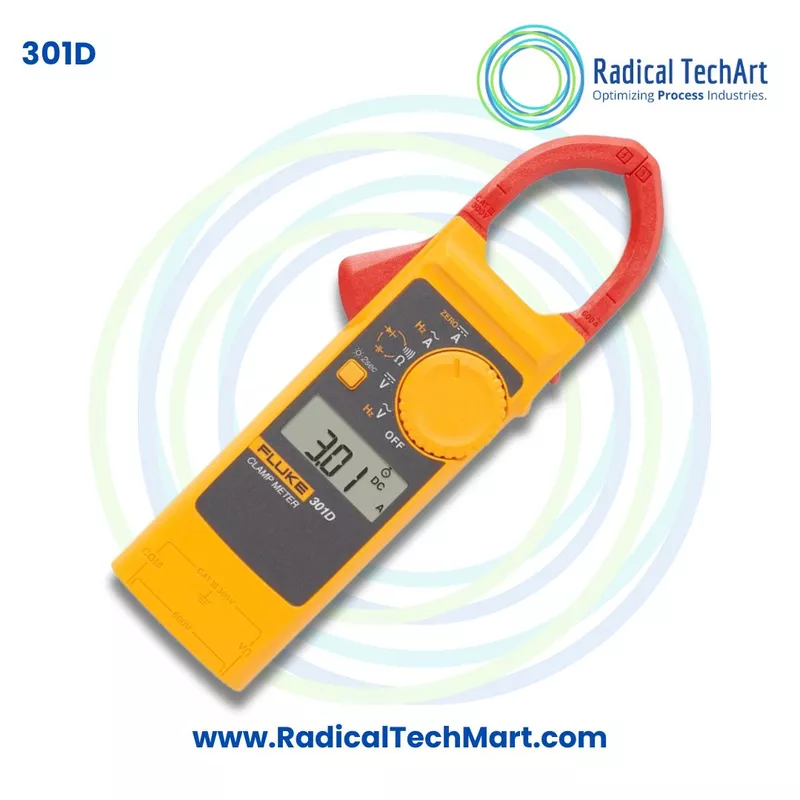

Fluke 301D 600A AC DC Clamp Meter with Test Leads
Customize
Share :
A. Product Overview
The Fluke 301D 600A AC DC Clamp Meter with Test Leads is a portable electrical measuring instrument designed for electricians, service engineers and maintenance professionals. It combines non-contact current measurement through the clamp jaw with conventional electrical measurements through the supplied test leads.
The Fluke 301D measures:
- AC current up to 600 A
- DC current up to 600 A
- AC voltage up to 600 V
- DC voltage up to 600 V
- Resistance up to 60 kΩ
- Capacitance up to 999.9 µF
- Voltage frequency from 1 Hz to 99.99 kHz
- Current frequency from 45 Hz to 400 Hz
- Diode forward voltage
- Circuit continuity
The instrument has a 6000-count LCD that updates three times per second, a 34 mm jaw opening, a backlight for dim working areas and a display hold function for retaining readings. It weighs approximately 154 g with batteries, making it convenient for daily field use.
The Fluke 301D also includes a hazardous-voltage indicator. When the meter detects more than approximately 30 V at the voltage input, a warning symbol appears on the display. The product diagram in the user manual also shows a CAT III 300 V safety marking.
B. Working Principle
AC and DC Current Measurement
The Fluke 301D measures current by clamping its jaw around a single current-carrying conductor. The electrical current flowing through the conductor creates a magnetic field. The meter detects this magnetic field and converts it into an AC or DC current reading.
This method allows current to be measured without cutting the wire, opening the circuit or connecting the meter in series.
For AC current measurement:
- Select the AC current function.
- Open the clamp using the trigger.
- Position the jaw around one conductor.
- Close the jaw completely.
- Read the AC current value on the display.
For DC current measurement:
- Select the DC current function.
- Keep the jaw away from current-carrying conductors.
- use the zero function to compensate for residual magnetic effects.
- Clamp the jaw around one conductor.
- Read the DC current value on the display.
The manual specifies that test leads must not remain connected to the input terminals while current is being measured with the clamp jaw.
Voltage Measurement
For voltage measurement, the black test lead is connected to the COM terminal and the red test lead is connected to the voltage and resistance terminal. The probes are then placed across the two circuit test points.
The meter measures up to 600 V AC and 600 V DC with a resolution of 0.1 V.
Resistance and Continuity Measurement
For resistance measurement, the meter applies a small internal test signal through the test leads and calculates the resistance of the connected component or circuit.
In continuity mode, the meter checks whether a low-resistance electrical path exists. The continuity beeper sounds continuously when the measured resistance is below approximately 30 Ω. The circuit must be switched off before resistance or continuity testing.
Capacitance Measurement
The meter charges the capacitor using a known internal current, measures the resulting voltage and calculates the capacitance value. The capacitor must be disconnected from the circuit and safely discharged before testing.
Frequency Measurement
The Fluke 301D can measure frequency through:
- Test leads while measuring AC voltage
- Clamp jaw while measuring AC current
This helps technicians check the frequency of electrical supplies, control signals and current-carrying circuits.
Diode Testing
In diode mode, the instrument applies a test signal across the diode and displays its forward-bias voltage. Reversing the test leads helps distinguish the diode anode and cathode and identify an open or defective diode.
C. Why Is the Fluke 301D Used?
The Fluke 301D is used to identify electrical faults, verify operating conditions and carry out preventive maintenance without unnecessarily interrupting the circuit.
Non-Intrusive Current Measurement
The clamp jaw allows technicians to measure current without removing insulation or disconnecting wiring. This makes current testing faster and reduces circuit downtime.
AC and DC System Testing
Because it measures both AC and DC current, the Fluke 301D can be used across conventional AC electrical systems as well as DC-powered equipment, control panels, battery systems, solar installations and vehicle electrical circuits.
Electrical Troubleshooting
The instrument can help diagnose:
- Overloaded circuits
- Abnormal current consumption
- Supply-voltage problems
- Broken wires
- Open circuits
- Short circuits
- Faulty diodes
- Defective capacitors
- Incorrect circuit resistance
- Frequency-related problems
Preventive Maintenance
Regular current and voltage measurements can help maintenance teams identify unusual operating conditions before they result in equipment failure.
Testing in Restricted Spaces
The meter measures only 16 mm thick across its main body and weighs approximately 154 g. Its compact construction is helpful when working inside crowded control panels, distribution boards and electrical cabinets.
Improved Reading Visibility
The backlit display improves readability in poorly illuminated work areas. The backlight automatically switches off after two minutes unless its automatic-off function is disabled. The meter itself normally switches off after 20 minutes of inactivity to conserve battery power.
D. Suitable Buyers
The Fluke 301D 600A AC DC Clamp Meter is suitable for:
Electricians
For checking supply voltage, circuit current, continuity, resistance and electrical components during installation and repair work.
Industrial Maintenance Engineers
For troubleshooting motors, control panels, pumps, production machinery and industrial electrical systems.
Electrical Contractors
For testing wiring, distribution panels, feeders, branch circuits and installed electrical equipment.
Facility Maintenance Teams
For routine inspection of commercial buildings, factories, warehouses, offices, hospitals and institutional facilities.
Solar Installation and Service Technicians
For checking AC and DC current and voltage in supported solar-power circuits and associated electrical equipment.
Automotive and Electric Vehicle Technicians
For measuring DC current, voltage, resistance and continuity in vehicle electrical systems, subject to the meter’s measurement and safety ratings.
HVAC and Refrigeration Technicians
For checking electrical current, supply voltage, capacitors, continuity and wiring associated with compressors, motors, contactors and control circuits.
Panel Builders and Automation Engineers
For commissioning and troubleshooting control panels, relays, contactors, power supplies and electrical control circuits.
Technical Institutes and Training Centres
For teaching practical electrical measurement, current testing, voltage testing, continuity checks and component diagnostics.
Frequently Asked Questions
1. What is the maximum current range of the Fluke 301D?
The Fluke 301D measures AC and DC current up to 600 A. The 1000 A range shown in the combined 301D and 301E manual applies to the Fluke 301E, not the Fluke 301D.
2. Can the Fluke 301D measure both AC and DC current?
Yes. It measures both AC and DC current using the clamp jaw. DC current measurement requires the jaw to be zeroed before clamping it around the conductor.
3. What voltage can the Fluke 301D measure?
It measures up to 600 V AC and 600 V DC using the test leads.
4. Are test leads used for current measurement?
No. Current is measured using the clamp jaw. The test leads are used for voltage, resistance, continuity, capacitance, frequency and diode measurements. The test leads should be removed from the input terminals before measuring current with the jaw.
5. Can the Fluke 301D measure current without disconnecting the wire?
Yes. The jaw is clamped around a single conductor, allowing current measurement without opening the circuit.
6. Can multiple wires be placed inside the clamp jaw?
For a correct current reading, the jaw should normally be placed around only one conductor. Clamping the live and neutral conductors together can cause their magnetic fields to cancel and may produce an incorrect or near-zero reading.
7. What is the jaw-opening size?
The Fluke 301D has a jaw opening of approximately 34 mm.
8. Does the Fluke 301D have a backlit display?
Yes. It has a backlit LCD for use in dimly lit electrical panels and work areas.
9. Does the meter have a display hold function?
Yes. The hold function freezes the displayed measurement so the technician can record or view the reading after removing the meter from the test position.
10. Does the Fluke 301D provide a hazardous-voltage warning?
Yes. A hazardous-voltage symbol appears when the meter detects more than approximately 30 V or an overload condition at the voltage input. This warning can also remain active while the display hold function is selected.
11. What is the continuity threshold?
The continuity beeper operates when the measured resistance is below approximately 30 Ω.
12. Can the Fluke 301D test capacitors?
Yes. It measures capacitance up to 999.9 µF. The capacitor must be disconnected from the circuit and safely discharged before testing.
13. Can it test diodes?
Yes. The diode-test function measures forward-bias voltage and can help identify diode polarity and common diode faults.
14. What type of display does it use?
It uses a 6000-count LCD that refreshes approximately three times per second.
15. What batteries does the Fluke 301D use?
It operates using two AAA batteries. The specified battery life is approximately 80 hours under stated operating conditions.
