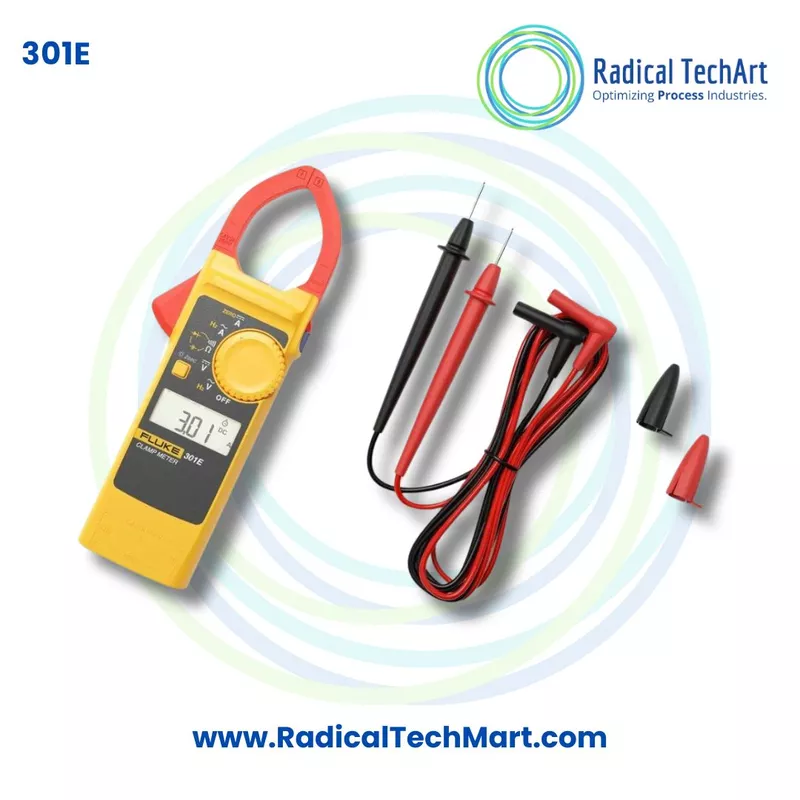

Fluke 301E 1000A AC DC Clamp Meter with Test Leads

A. Product Overview

The Fluke 301E is a portable digital clamp meter developed for electricians, maintenance engineers and service technicians who need to measure high AC and DC current safely and efficiently.

Unlike a standard multimeter that requires the circuit to be opened for current measurement, the Fluke 301E measures current by clamping its jaw around a single conductor. The meter can measure AC and DC current up to 1000 A, making it suitable for electrical panels, industrial equipment, power distribution systems, solar installations, battery banks and other high-current applications.

The included TL75 test leads extend the meter’s functionality beyond current measurement. Using the test leads, technicians can measure AC and DC voltage, resistance, continuity, capacitance, diode voltage and electrical frequency.

The Fluke 301E has a slim and lightweight construction, weighing approximately 154 g with batteries. Its 34 mm jaw opening allows it to clamp around commonly used power cables and conductors. The 6000-count LCD updates three times per second and includes a backlight for improved visibility in electrical panels, plant rooms and poorly lit working areas.

Main Features

• AC current measurement up to 1000 A
• DC current measurement up to 1000 A
• AC voltage measurement up to 600 V
• DC voltage measurement up to 600 V
• Resistance measurement up to 60 kΩ
• Capacitance measurement up to 999.9 µF
• Voltage frequency measurement up to 99.99 kHz
• AC current frequency measurement from 45 Hz to 400 Hz
• Diode test function
• Audible continuity testing
• 30 Ω continuity threshold
• 34 mm jaw opening
• 6000-count digital display
• Backlit LCD for low-light locations
• Display Hold function
• Hazardous voltage warning
• DC current zero adjustment
• Automatic power-off after approximately 20 minutes
• Backlight automatic shut-off
• Approximately 80 hours of battery life
• Powered by two AAA batteries
• Compact weight of approximately 154 g
• Supplied with TL75 test leads

B. Working Principle

AC and DC Current Measurement

The Fluke 301E measures electrical current through the magnetic field generated around a current-carrying conductor.

When the clamp jaw is positioned around a single conductor, the instrument detects the magnetic field created by the current flowing through that conductor. Its internal sensing circuit converts the detected magnetic field into an electrical reading and displays the measured current in amperes.

For AC current measurement, the meter detects the alternating magnetic field produced by alternating current.

For DC current measurement, the meter detects the steady magnetic field produced by direct current. Before taking a DC current reading, the user should keep the jaw away from current-carrying conductors and use the zero function to compensate for any residual magnetic offset.

Only one conductor should be placed inside the jaw during current measurement. Clamping around both the phase and neutral conductors together can cause their magnetic fields to cancel, resulting in an incorrect or near-zero reading.

Voltage Measurement

AC and DC voltage are measured using the supplied TL75 test leads.

The black test lead is connected to the COM terminal, while the red test lead is connected to the voltage and resistance terminal. The probes are then placed across the two electrical points being tested. The meter measures the potential difference and displays the voltage value.

Resistance Measurement

For resistance testing, power must be removed from the circuit. The meter sends a small internal test signal through the component or circuit and calculates resistance based on the measured response.

Continuity Testing

The continuity function checks whether a low-resistance electrical path exists between two points.

When the measured resistance is below approximately 30 Ω, the meter produces an audible sound. This allows technicians to quickly check wires, switches, fuses, connectors and circuit paths without continuously watching the display.

Capacitance Measurement

The meter determines capacitance by charging the capacitor with a known current, measuring the resulting voltage and calculating the capacitance value.

The capacitor must be disconnected from the circuit and safely discharged before testing.

Diode Testing

The diode test function applies a small test voltage across the diode and displays its forward-bias voltage. This helps technicians identify the anode and cathode and determine whether the diode is open, shorted or functioning correctly.

Frequency Measurement

The Fluke 301E can measure frequency through the test leads during AC voltage testing. It can also measure AC current frequency when the jaw is clamped around a current-carrying conductor.

C. Why the Fluke 301E Is Used

Non-Intrusive Current Measurement

The clamp jaw allows technicians to measure current without cutting wires, disconnecting terminals or placing the meter directly in series with the circuit.

High AC and DC Current Capacity

Its current range of up to 1000 A makes it suitable for testing industrial feeders, motors, inverters, battery systems, solar installations and electrical distribution circuits.

Multiple Electrical Measurements

The Fluke 301E combines several instruments in one compact device. It can measure current, voltage, resistance, continuity, frequency, capacitance and diode voltage.

AC and DC Application Support

Many basic clamp meters measure only AC current. The Fluke 301E measures both AC and DC current, allowing it to be used for conventional electrical systems as well as batteries, solar systems, electric vehicles and DC power equipment.

Troubleshooting Electrical Faults

Technicians can use the meter to identify:

• Overloaded circuits
• Abnormal motor current
• Open electrical connections
• Broken wires
• Blown fuses
• Voltage supply problems
• Faulty capacitors
• Defective diodes
• Battery charging problems
• Solar string current variation
• Incorrect DC current flow

Compact Design

The meter measures approximately 190 mm in length and weighs about 154 g with batteries. This makes it easier to carry in a toolkit and use inside crowded electrical panels.

Improved Visibility

The LCD backlight helps users read measurements in poorly illuminated electrical cabinets, machine rooms and plant areas.

Hazardous Voltage Indication

When the meter detects voltage greater than approximately 30 V or a voltage overload, a hazardous voltage indicator appears on the screen.

Reading Retention

The Display Hold function freezes the measured value on the screen. This is useful when the display cannot be viewed clearly while the probes or clamp are positioned.

Reduced Battery Consumption

Automatic power-off switches the meter off after approximately 20 minutes of inactivity. The backlight also switches off automatically after a short period when not required.

D. Suitable Buyers

Industrial Electricians

Suitable for checking electrical panels, feeders, motors, contactors, cables, pumps, compressors and plant machinery.

Electrical Maintenance Engineers

Useful for preventive maintenance, breakdown troubleshooting and load-current verification.

Solar Installation Companies

The AC and DC current functions make it suitable for checking solar inverters, battery connections, DC distribution circuits and photovoltaic systems.

Battery and UPS Service Companies

Suitable for measuring charging current, discharge current, DC voltage and electrical continuity in battery banks and UPS systems.

Electric Vehicle Service Technicians

Can be used for selected AC and DC electrical checks in electric vehicle charging systems, battery circuits and power conversion equipment.

HVAC and Refrigeration Technicians

Useful for measuring compressor current, blower motor current, voltage, resistance, capacitance and electrical continuity.

Electrical Contractors

Suitable for installation testing, distribution board inspection, load verification and fault diagnosis.

Manufacturing Plants

Maintenance departments can use it for motors, control panels, production machinery, power supplies and industrial electrical equipment.

Telecom and Data-Centre Technicians

Useful for DC power systems, backup batteries, distribution circuits, UPS installations and electrical maintenance.

Panel Builders

Suitable for testing assembled control panels, outgoing feeders, power supplies, contactors and circuit wiring.

Technical Training Institutes

The meter can be used for practical electrical testing and maintenance training involving AC and DC measurements.

Frequently Asked Questions

1. What is the maximum current range of the Fluke 301E?

The Fluke 301E can measure AC current and DC current up to 1000 A.

2. Can the Fluke 301E measure both AC and DC current?

Yes. It supports both AC and DC current measurement through the clamp jaw.

3. What is the maximum voltage range?

The meter can measure AC voltage and DC voltage up to 600 V using the supplied test leads.

4. Are test leads included with the Fluke 301E?

The specified package includes TL75 test leads for voltage, resistance, continuity, capacitance and diode testing.

5. Can current be measured without disconnecting the wire?

Yes. The jaw is clamped around a single current-carrying conductor, allowing current measurement without disconnecting the circuit.

6. Can the meter clamp around phase and neutral together?

No. The jaw should normally be placed around only one conductor. Clamping around phase and neutral together can cause the magnetic fields to cancel and produce an incorrect reading.

7. What is the jaw opening size?

The Fluke 301E has a jaw opening of approximately 34 mm.

8. Can it measure resistance?

Yes. It measures resistance across the 600 Ω, 6 kΩ and 60 kΩ ranges.

9. Does it have an audible continuity function?

Yes. The continuity beeper sounds when the measured resistance is below approximately 30 Ω.

10. Can it test capacitors?

Yes. It supports capacitance measurement up to 999.9 µF. Capacitors must be disconnected and safely discharged before testing.

11. Does it support diode testing?

Yes. The diode function displays forward-bias voltage and helps identify diode polarity and basic diode condition.

12. Can the Fluke 301E measure frequency?

Yes. It measures frequency during AC voltage testing and can also measure AC current frequency through the clamp jaw.

13. What is the voltage frequency range?

The voltage frequency measurement range extends from approximately 1 Hz to 99.99 kHz, subject to the required input threshold.

14. What is the AC current frequency range?

The AC current frequency range is approximately 45 Hz to 400 Hz.

15. Does the Fluke 301E have a backlit display?

Yes. The backlight improves display visibility in dark or poorly illuminated work areas.

16. Does it have a Display Hold function?

Yes. The Hold button freezes the displayed measurement until the function is released.

17. What is the hazardous voltage indicator?

The hazardous voltage symbol appears when the meter detects voltage greater than approximately 30 V or an input overload during voltage measurement.

18. How is DC current measured correctly?

Keep the jaw away from any current-carrying conductor, select DC current mode, use the zero function and then position the jaw around a single conductor.

19. What type of batteries does it use?

The Fluke 301E operates using two AAA batteries.

20. What is the expected battery life?

The specified battery life is approximately 80 hours under normal operating conditions.

21. Does the meter have automatic power-off?

Yes. It switches off automatically after approximately 20 minutes of inactivity. This function can be disabled through the power-on options.

22. How large is the display?

The meter uses a 6000-count LCD that updates approximately three times per second.

23. What is the weight of the Fluke 301E?

It weighs approximately 154 g with batteries installed.

24. Is it suitable for solar system testing?

Yes. Its AC and DC current measurement capability makes it useful for solar power systems, inverter circuits, battery banks and related electrical equipment.

25. Can it be used for motor current measurement?

Yes. It can measure running current in motors, pumps, compressors, blowers and other industrial equipment, provided the circuit remains within the meter’s specified range.

26. Can it be used for HVAC maintenance?

Yes. HVAC technicians can use it for compressor current, motor current, voltage, continuity, resistance and capacitor testing.

27. Is it suitable for high-current industrial applications?

Yes. Its 1000 A AC and DC current range supports many industrial maintenance and power-distribution applications.

28. What is the difference between the Fluke 301D and Fluke 301E?

Both models measure AC and DC voltage, resistance, continuity, capacitance, diode voltage and frequency. The key difference is that the Fluke 301E measures AC and DC current up to 1000 A, while the 301D current range is limited to 600 A.
