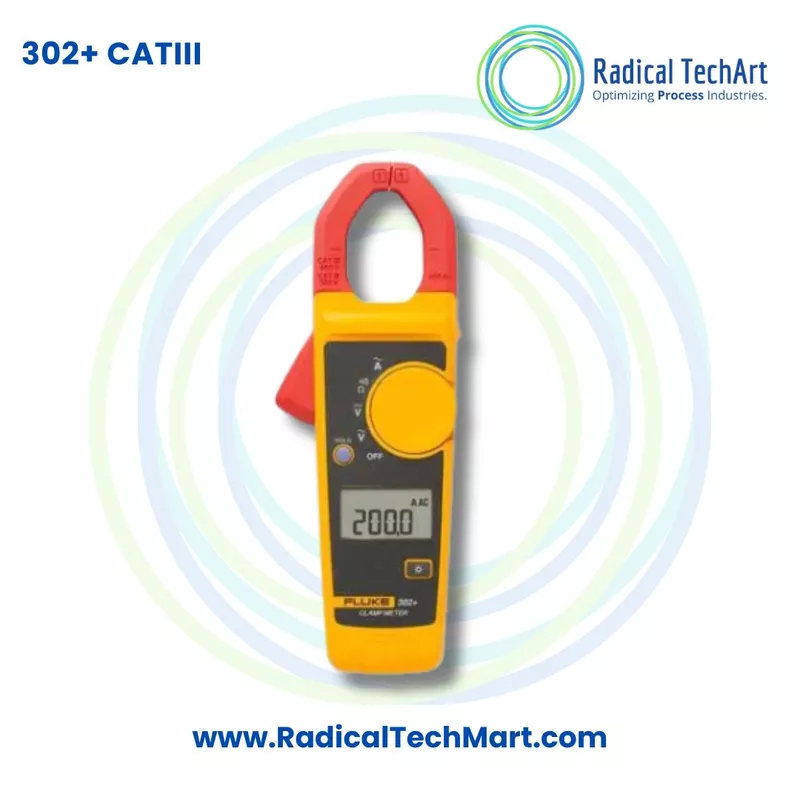

Fluke 302 Plus 400A AC Clamp Meter

A. Product Overview

The Fluke 302 Plus is a digital clamp meter developed for electricians, technicians and maintenance professionals who need a practical instrument for common electrical measurements.

Its clamp jaw allows AC current to be measured around a conductor without opening or interrupting the circuit. For voltage, resistance and continuity testing, the meter is used with compatible test leads.

The Fluke 302 Plus measures:

• AC current up to 400.0 A
• AC voltage up to 600.0 V
• DC voltage up to 600.0 V
• Resistance up to 4000 ohms
• Continuity with an audible beeper at approximately 70 ohms or below

The meter offers 0.1 A resolution for AC current and an AC current accuracy of 1.8 percent plus 5 digits between 45 Hz and 65 Hz. It has CAT IV 300 V and CAT III 600 V measurement ratings for use in suitable electrical environments.

Its compact body measures approximately 206.9 mm by 58.7 mm by 28.1 mm and weighs about 265 grams, making it convenient for field service and daily maintenance work.

B. Working Principle

The Fluke 302 Plus works by using its clamp jaw to detect the magnetic field produced by alternating current flowing through a conductor.

When the jaw is placed around a single live conductor, the current flowing through that conductor creates a magnetic field. The meter senses this field and converts it into an AC current reading shown on the display.

For accurate clamp current measurement, the jaw should be closed completely around one conductor. Clamping around both the live and neutral conductors together can cause the magnetic fields to cancel each other, resulting in an incorrect or near-zero reading.

For AC voltage, DC voltage, resistance and continuity measurements, the test leads are connected to the input terminals. The leads are then placed across the circuit or component being tested.

During continuity testing, the meter produces an audible indication when the measured resistance is approximately 70 ohms or less. This helps technicians quickly identify continuous circuits, closed contacts, connected wires and low-resistance paths.

C. Why the Fluke 302 Plus Clamp Meter Is Used

The Fluke 302 Plus is used because it combines non-contact AC current measurement with essential electrical testing functions in one compact instrument.

Current Measurement Without Disconnecting Wires

The clamp jaw enables technicians to measure AC current without cutting, disconnecting or inserting the meter directly into the circuit. This makes current checks faster and more convenient.

Electrical Troubleshooting

The meter helps identify problems such as:

• Overloaded circuits
• Unexpected current consumption
• Incorrect supply voltage
• Open wiring
• Broken electrical connections
• High-resistance faults
• Failed switches or contacts
• Continuity problems

Routine Maintenance

Maintenance technicians can use the meter to inspect motors, distribution boards, electrical panels, feeders, lighting circuits and general industrial equipment.

Multiple Measurements in One Meter

The Fluke 302 Plus can measure current, voltage, resistance and continuity, reducing the need to carry multiple instruments for basic electrical service tasks.

Electrical Safety Classification

The meter is rated CAT III 600 V and CAT IV 300 V. CAT III applies to fixed electrical installations such as distribution panels, feeders, short branch circuits and lighting systems in large buildings. CAT IV applies to measurements near the primary electrical supply level, including electricity meters and utility service connections.

D. Suitable Buyers

The Fluke 302 Plus 400A AC Clamp Meter is suitable for:

Electricians

Electricians can use it for checking AC current, supply voltage, wiring continuity and resistance during installation and repair work.

Industrial Maintenance Technicians

It is useful for routine inspection and troubleshooting of motors, pumps, control panels, machinery and industrial electrical systems.

Electrical Contractors

Contractors can use the meter during installation, commissioning and maintenance of commercial and industrial electrical systems.

Facility Maintenance Teams

Facility engineers can use it for inspecting distribution boards, lighting circuits, electrical loads and building equipment.

HVAC Service Technicians

HVAC technicians can use the meter to check current consumption and voltage in compressors, motors, blowers, pumps and control circuits.

Panel Builders and Control Panel Technicians

It is suitable for testing wiring, continuity, voltage and electrical loads during panel assembly and commissioning.

Field Service Engineers

The compact design and multiple measurement functions make it suitable for technicians who perform electrical checks at different customer sites.

Electrical Training Institutes

The meter can also be used for practical training in current, voltage, resistance and continuity measurement, provided all work is carried out under proper supervision and electrical safety procedures.

Frequently Asked Questions

1. What is the maximum AC current range of the Fluke 302 Plus?

The Fluke 302 Plus can measure AC current up to 400.0 A using its clamp jaw.

2. Can the Fluke 302 Plus measure DC current?

No. The clamp jaw of the Fluke 302 Plus is specified for AC current measurement. It can measure DC voltage, but the manual does not specify DC current measurement.

3. What voltage can the Fluke 302 Plus measure?

It can measure AC voltage up to 600.0 V and DC voltage up to 600.0 V.

4. Can it measure resistance?

Yes. The meter has resistance ranges of 400.0 ohms and 4000 ohms.

5. Does the Fluke 302 Plus have a continuity buzzer?

Yes. The continuity beeper operates at approximately 70 ohms or below.

6. What is the AC current accuracy?

The stated AC current accuracy is 1.8 percent plus 5 digits from 45 Hz to 65 Hz and 2.5 percent plus 5 digits from 65 Hz to 400 Hz.

7. Is the Fluke 302 Plus suitable for industrial use?

Yes. Its current, voltage, resistance and continuity functions make it suitable for industrial maintenance, electrical servicing and troubleshooting. Its safety ratings are CAT III 600 V and CAT IV 300 V.

8. What is the difference between the Fluke 302 Plus and Fluke 303?

According to the manual, the main stated difference in clamp current range is that the Fluke 302 Plus measures up to 400 A AC, while the Fluke 303 measures up to 600 A AC.

9. What batteries does the Fluke 302 Plus use?

The meter uses two AAA batteries, identified as NEDA 24A or IEC LR03.

10. What is the operating temperature range?

The specified operating temperature range is 0°C to 40°C.

11. Can current be measured while the test leads are connected?

The manual warns not to measure current while the test leads are inserted into the input jacks. Unnecessary probes and accessories should be removed before current measurement.

12. How should the meter be cleaned?

The case should be wiped with a damp cloth and mild detergent. Abrasives and solvents should not be used because they may damage the meter housing.

13. Where is the Fluke 302 Plus commonly used?

It is commonly used in electrical panels, commercial buildings, industrial machinery, maintenance departments, HVAC systems, workshops and field service applications.

14. Is it suitable for measuring household electrical loads?

Yes, it can be used for suitable household and commercial AC current and voltage measurements, provided the circuit remains within the meter rating and the operator follows proper electrical safety procedures.

15. Can the clamp be placed around multiple wires?

For current measurement, the clamp should normally be placed around one conductor only. Clamping around both live and neutral conductors can produce an incorrect reading because their magnetic fields may cancel each other.
