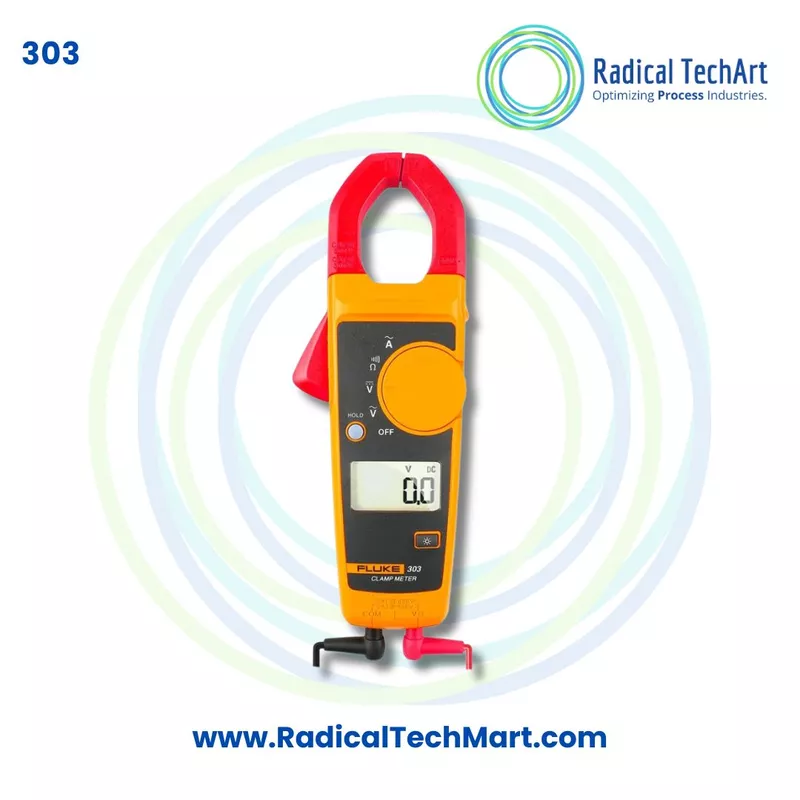

Fluke 303 600A AC Clamp Meter

A. Product Overview

The Fluke 303 is a digital clamp meter developed for electricians, service engineers and maintenance professionals who require a portable instrument for common electrical measurements.

It measures:

• AC current up to 600.0 A
• AC voltage up to 600.0 V
• DC voltage up to 600.0 V
• Resistance up to 4000 ohms
• Continuity with an audible beeper

The meter provides 0.1 A current resolution and 0.1 V voltage resolution. It has a compact body measuring approximately 206.9 mm by 58.7 mm by 28.1 mm and weighs around 265 grams. It operates using two AAA batteries.

Its measurement category ratings are:

• CAT IV 300 V
• CAT III 600 V

These ratings support use in fixed electrical installations, distribution panels, feeders, lighting systems and primary electrical supply environments, subject to proper safety procedures.

B. Working Principle

The Fluke 303 measures AC current by detecting the magnetic field generated around a current-carrying conductor.

When the clamp jaw is placed around one conductor, the alternating current flowing through that conductor produces a changing magnetic field. The meter senses this field and converts it into an electrical current reading shown on the display.

For correct measurement, the jaw should be closed fully around a single conductor. Clamping around both phase and neutral conductors together can cause the magnetic fields to cancel, resulting in an incorrect or very low reading.

For voltage, resistance and continuity testing, the user connects the test leads to the meter terminals and selects the required function.

The continuity mode activates an audible beeper when the resistance is 70 ohms or lower. The diagrams on pages 14 to 17 of the manual illustrate current measurement, voltage testing, resistance testing, continuity testing and the Hold function.

C. Why the Fluke 303 Is Used

The Fluke 303 is used because it allows AC current to be measured without disconnecting or cutting the conductor. This makes electrical testing faster and reduces equipment downtime during routine inspection.

Common uses include:

• Measuring current in electrical cables
• Checking current drawn by motors, heaters, pumps and machines
• Testing voltage in electrical panels
• Measuring AC and DC voltage
• Checking circuit continuity
• Measuring resistance in wiring and components
• Identifying overloaded circuits
• Troubleshooting electrical faults
• Inspecting distribution boards
• Performing preventive electrical maintenance
• Verifying newly installed wiring
• Checking commercial and industrial electrical systems

The meter is particularly useful for technicians who need one portable instrument for several basic electrical tests.

D. Suitable Buyers

The Fluke 303 600A AC Clamp Meter is suitable for:

• Electricians
• Electrical contractors
• Industrial maintenance technicians
• Facility maintenance teams
• HVAC service engineers
• Motor repair technicians
• Pump service technicians
• Electrical panel manufacturers
• Automation service engineers
• Machine maintenance departments
• Commercial building technicians
• Power distribution technicians
• Technical institutes
• Electrical laboratories
• Industrial plants and workshops

Key Technical Specifications

Frequently Asked Questions

1. What is the maximum AC current range of the Fluke 303?

The Fluke 303 can measure AC current up to 600.0 A through its clamp jaw.

2. Can the Fluke 303 measure DC current?

No. The clamp jaw measures AC current only. The instrument can measure both AC voltage and DC voltage through the test leads.

3. What is the maximum voltage range?

The meter measures AC voltage and DC voltage up to 600.0 V.

4. Does the Fluke 303 measure resistance?

Yes. It measures resistance in 400.0 ohm and 4000 ohm ranges.

5. Does it include continuity testing?

Yes. It has an audible continuity beeper that activates when resistance is 70 ohms or lower.

6. Can AC current be measured without disconnecting the cable?

Yes. The clamp jaw can be placed around a single conductor to measure AC current without opening the circuit.

7. Can the clamp be placed around a complete two-core cable?

For accurate results, the jaw should be placed around only one conductor. If both phase and neutral conductors are enclosed together, their magnetic fields may cancel and produce an incorrect reading.

8. Is the Fluke 303 suitable for distribution panel testing?

Yes. Its CAT III 600 V rating is intended for fixed electrical installations such as distribution panels, feeders, branch circuits and building lighting systems.

9. What does CAT IV 300 V mean?

CAT IV equipment is designed for measurements at the primary electrical supply level, including electricity meters and overhead or underground utility service points. Actual use must follow the meter rating, accessory rating and applicable safety procedures.

10. What is the AC current accuracy?

The stated accuracy is 1.8 percent and 5 digits from 45 Hz to 65 Hz, and 2.5 percent and 5 digits from 65 Hz to 400 Hz.

11. What batteries are used in the Fluke 303?

The meter operates with two AAA batteries.

12. What is the operating temperature range?

The specified operating temperature range is 0 degrees Celsius to 40 degrees Celsius.

13. How should the meter be cleaned?

The case should be wiped regularly with a damp cloth and mild detergent. Abrasives and solvents should not be used because they may damage the product.

14. What safety precautions should be followed?

The user should inspect the meter and test leads before use, keep fingers behind the protective barriers, use correctly rated accessories, measure a known voltage first and follow local electrical safety requirements. The meter should not be used if it is damaged or operating incorrectly.

15. What is the warranty period?

The Fluke 303 is covered by a two-year limited warranty against defects in material and workmanship, subject to Fluke’s warranty conditions and exclusions.
