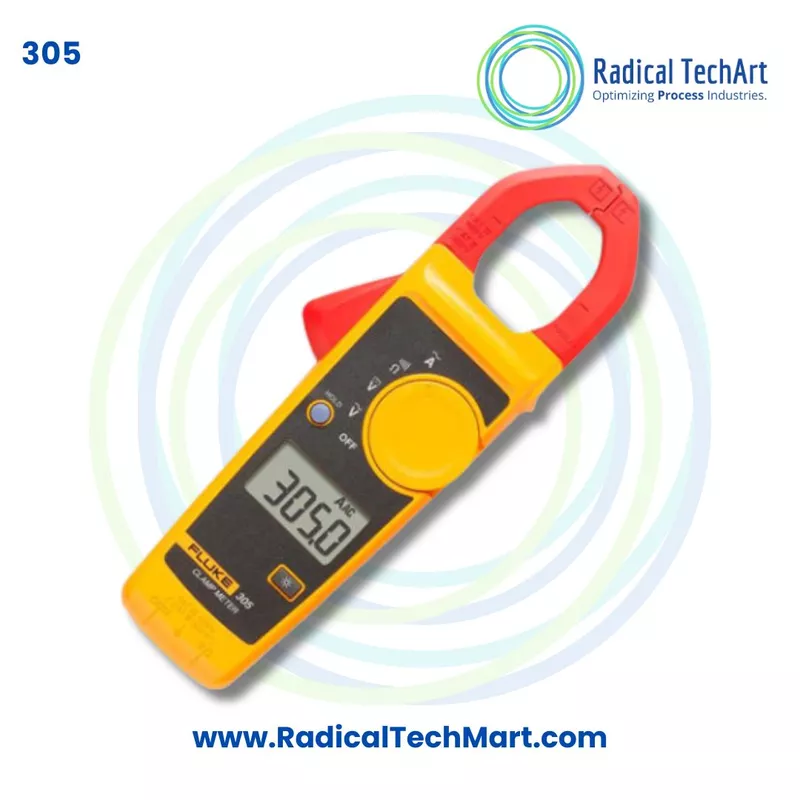

Fluke 305 1000A AC Clamp Meter
Customize
Share :
A. Product Overview
The Fluke 305 is a digital clamp meter developed for electricians, maintenance technicians and industrial service professionals. It measures AC current up to 999.9 A through its clamp jaw, allowing current testing without breaking the electrical circuit.
The instrument can also measure:
- AC current up to 999.9 A
- AC voltage up to 600 V
- DC voltage up to 600 V
- Resistance up to 4000 ohms
- Continuity with an audible beeper
The Fluke 305 has a compact body measuring 207 mm by 75 mm by 34 mm and weighs approximately 205 grams, making it convenient for field use and everyday electrical inspection work.
B. Working Principle
The Fluke 305 measures AC current by detecting the magnetic field produced around a current-carrying conductor.
To measure current, the user opens the clamp jaw and places it around a single electrical conductor. The current flowing through that conductor creates a magnetic field, which is detected by the clamp meter and converted into a current reading.
For accurate current measurement, the clamp must be placed around only one conductor. Clamping around both phase and neutral conductors together may cause the magnetic fields to cancel and produce an incorrect reading.
For voltage, resistance and continuity measurements, the supplied test leads are connected to the appropriate terminals. The rotary selector is then set to the required measuring function.
The continuity function activates an audible beeper when the measured resistance is approximately 70 ohms or less.
C. Why the Fluke 305 Clamp Meter Is Used
The Fluke 305 is used because it allows technicians to measure electrical current quickly without cutting, disconnecting or opening the conductor circuit.
It is useful for:
- Measuring current drawn by motors, heaters, pumps and electrical equipment
- Checking current in distribution panels and switchboards
- Measuring AC and DC voltage
- Testing electrical wiring continuity
- Checking resistance in electrical circuits and components
- Identifying overloaded circuits
- Troubleshooting electrical faults
- Performing preventive maintenance
- Verifying electrical installations
- Comparing current consumption between equipment and phases
Its clamp-based current measurement helps reduce downtime because the circuit does not normally need to be disconnected for current testing.
D. Suitable Buyers
The Fluke 305 1000A AC Clamp Meter is suitable for:
- Electricians
- Electrical maintenance technicians
- Industrial maintenance departments
- HVAC service engineers
- Control panel manufacturers
- Electrical contractors
- Facility management companies
- Motor and pump service technicians
- Machine maintenance engineers
- Power distribution technicians
- Automation service professionals
- Technical training institutes
- Electrical testing laboratories
- Commercial building maintenance teams
- Industrial plants and workshops
Key Technical Specifications
| Parameter | Specification |
|---|---|
| AC current range | Up to 999.9 A |
| AC current resolution | 0.1 A |
| AC current accuracy | 1.5 percent and 5 digits |
| AC current frequency range | 45 Hz to 400 Hz |
| AC voltage range | Up to 600.0 V |
| DC voltage range | Up to 600.0 V |
| Resistance ranges | 400 ohms and 4000 ohms |
| Continuity beeper | Activates at 70 ohms or less |
| Dimensions | 207 mm by 75 mm by 34 mm |
| Weight | Approximately 205 grams |
The manufacturer notes that an additional 2 percent should be considered for position sensitivity during AC current measurement.
Frequently Asked Questions
1. What is the maximum current range of the Fluke 305?
The Fluke 305 can measure AC current up to 999.9 A using its clamp jaw.
2. Can the Fluke 305 measure DC current?
No. The Fluke 305 measures AC current through the clamp. It can measure both AC voltage and DC voltage through test leads.
3. What is the maximum voltage range?
The meter can measure AC voltage and DC voltage up to 600 V.
4. Can the Fluke 305 measure resistance?
Yes. It measures resistance in 400 ohm and 4000 ohm ranges.
5. Does the Fluke 305 have a continuity test?
Yes. It includes an audible continuity beeper that operates when resistance is approximately 70 ohms or less.
6. Can current be measured without disconnecting the wire?
Yes. The clamp jaw is placed around a single conductor, allowing AC current measurement without opening the circuit.
7. Can the clamp be placed around a complete cable?
It should be placed around one current-carrying conductor. Clamping around both phase and neutral conductors together may produce an incorrect or near-zero reading.
8. Is the Fluke 305 suitable for industrial maintenance?
Yes. Its 999.9 A AC current range, 600 V voltage capability, resistance measurement and continuity testing make it suitable for routine industrial electrical maintenance.
9. What can cause inaccurate clamp current readings?
Incorrect jaw positioning, foreign material on the jaw mating surfaces or incomplete jaw closure can affect measurement accuracy. Fluke recommends keeping the jaw surfaces clean so that the clamp closes properly.
10. How should the Fluke 305 be cleaned?
The case should be wiped with a damp cloth and mild detergent. Abrasives and solvents should not be used because they may damage the instrument.
11. What is the accuracy of AC current measurement?
The specified AC current accuracy is 1.5 percent and 5 digits from 45 Hz to 400 Hz. An additional 2 percent may apply because of conductor positioning inside the clamp.
12. What is the warranty period?
The Fluke 305 is covered by a two-year limited warranty against defects in materials and workmanship, subject to the manufacturer’s warranty terms and exclusions.
