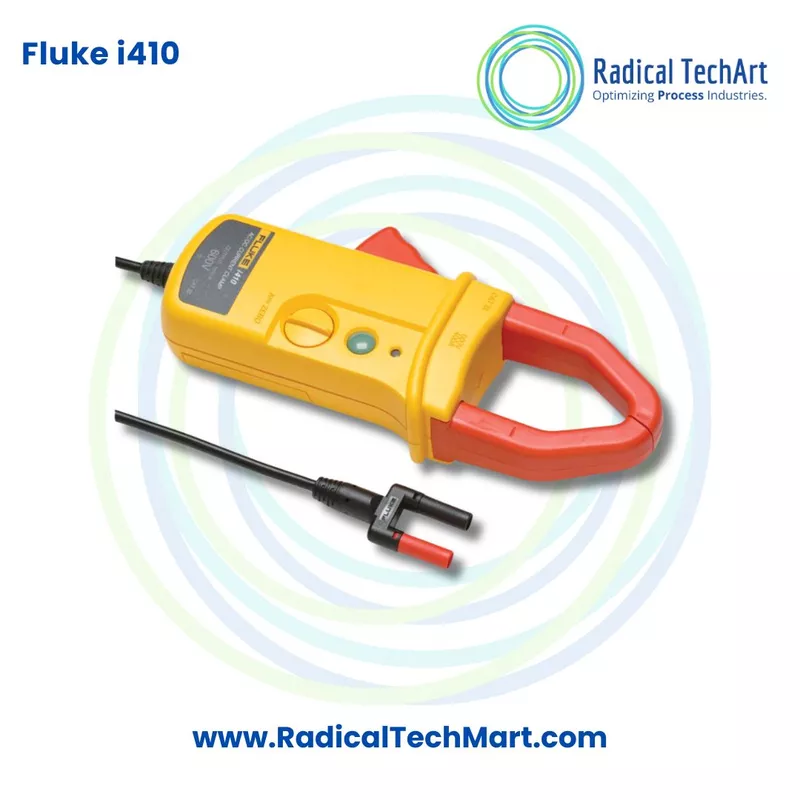

Fluke i410 AC DC Current Clamp

A. Product Overview

The Fluke i410 is an AC and DC current clamp designed for use with compatible digital multimeters and voltmeters. It allows current to be measured by clamping around a single conductor, avoiding the need to open the circuit or make a direct current connection.

The clamp measures AC and DC current from 1A to 400A, with a usable range starting from 0.5A. It converts the measured current into a proportional voltage signal of 1mV per ampere. For example, a multimeter reading of 100mV represents a current of 100A.

Main Specifications

• AC current range: 1A to 400A RMS
• DC current range: 1A to 400A
• Usable current range: 0.5A to 400A
• Output signal: 1mV per ampere for AC or DC
• DC accuracy: 3.5 percent plus 0.5A
• AC accuracy: 3.5 percent plus 0.5A from 45Hz to 400Hz
• Bandwidth: 3kHz
• Maximum voltage to earth: 600V
• Safety rating: CAT III 600V
• Maximum conductor diameter: one conductor up to 30mm or two conductors up to 25mm each
• Power supply: 9V alkaline battery
• Typical battery life: 60 hours
• Operating temperature: minus 10 degrees Celsius to 50 degrees Celsius
• Dimensions: 209mm by 78mm by 48mm
• Weight: approximately 0.5kg

B. Working Principle

The Fluke i410 works by detecting the magnetic field generated around a current-carrying conductor.

For AC measurement, the clamp senses the changing magnetic field around the conductor. For DC measurement, it uses an electronic sensing system that can detect a steady magnetic field. The clamp then converts the detected current into a proportional voltage output.

The output cable connects to a compatible voltmeter or digital multimeter. The meter is selected to the appropriate millivolt range, and the displayed value is interpreted using the ratio of 1mV equal to 1A.

For DC current measurement, the user first connects the clamp to the meter, selects millivolts DC, switches the clamp on and adjusts the zero control while the jaws are empty. The conductor is then positioned in the center of the jaws for measurement. For AC current, the meter is selected to millivolts AC or volts AC before clamping around the conductor.

C. Why It Is Used

The Fluke i410 AC DC Current Clamp is used because it provides a practical and safer way to measure current without disconnecting wiring or interrupting equipment operation.

It is useful for:

• Measuring AC and DC current up to 400A
• Troubleshooting motors, drives, control panels and electrical equipment
• Checking battery charging and discharging current
• Testing automotive and industrial DC circuits
• Measuring current in power distribution systems
• Performing preventive maintenance on electrical installations
• Converting a compatible digital multimeter into an AC and DC clamp meter
• Reducing the need for direct series current connections
• Measuring live conductors while following the appropriate safety procedures

D. Suitable Buyers

The Fluke i410 is suitable for:

• Industrial electricians
• Electrical maintenance engineers
• Automation technicians
• Field service engineers
• Automotive electricians
• Solar installation and maintenance technicians
• Battery service professionals
• Panel builders
• HVAC service technicians
• Testing and calibration laboratories
• Manufacturing and process industries
• Electrical contractors
• Professionals already using compatible Fluke digital multimeters

Frequently Asked Questions

1. What is the Fluke i410 used for?

The Fluke i410 is used to measure AC and DC current by clamping around a single electrical conductor. It works with a compatible voltmeter or digital multimeter.

2. What is the maximum current range of the Fluke i410?

The Fluke i410 measures AC and DC current up to 400A. Its specified range is 1A to 400A, while the usable range starts from approximately 0.5A.

3. Does the Fluke i410 measure both AC and DC current?

Yes. The Fluke i410 is designed for both alternating current and direct current measurements.

4. What output does the Fluke i410 provide?

It provides an output signal of 1mV for every 1A measured. A meter reading of 50mV therefore represents 50A.

5. Can the Fluke i410 be used as a standalone clamp meter?

No. The Fluke i410 is a current clamp accessory and must be connected to a compatible digital multimeter or voltmeter to display the current reading.

6. What type of multimeter is required?

The connected meter should accept safety-shrouded banana plugs, display at least 1mV resolution, have suitable accuracy and provide an input impedance of at least 1 megaohm.

7. Is zero adjustment required for DC current measurement?

Yes. Before measuring DC current, the zero control should be adjusted while the clamp jaws are closed and no conductor is inside them.

8. What is the safety rating of the Fluke i410?

The Fluke i410 is rated CAT III 600V and complies with the relevant IEC electrical safety standards.

9. What is the maximum conductor size?

The jaws can accommodate one conductor up to 30mm in diameter or two conductors up to 25mm each.

10. Which battery does the Fluke i410 use?

It uses one 9V alkaline battery and provides approximately 60 hours of continuous typical operation.

11. Can the Fluke i410 measure current through a complete cable containing phase and neutral wires?

For accurate measurement, the clamp should be placed around only one conductor. Clamping around both outgoing and returning conductors may cause the magnetic fields to cancel and produce an incorrect reading.

12. Is the Fluke i410 suitable for industrial use?

Yes. Its 400A AC and DC measurement capability, CAT III 600V rating and compatibility with professional multimeters make it suitable for industrial electrical maintenance and troubleshooting.
