A. Product Overview

The Fluke TL75 Hard Point Test Lead Set is designed for electricians, maintenance technicians and engineers who require reliable probe leads for routine electrical testing. Each lead combines the test cable and probe into a single unit, providing a convenient connection between a compatible measuring instrument and the electrical point being tested.

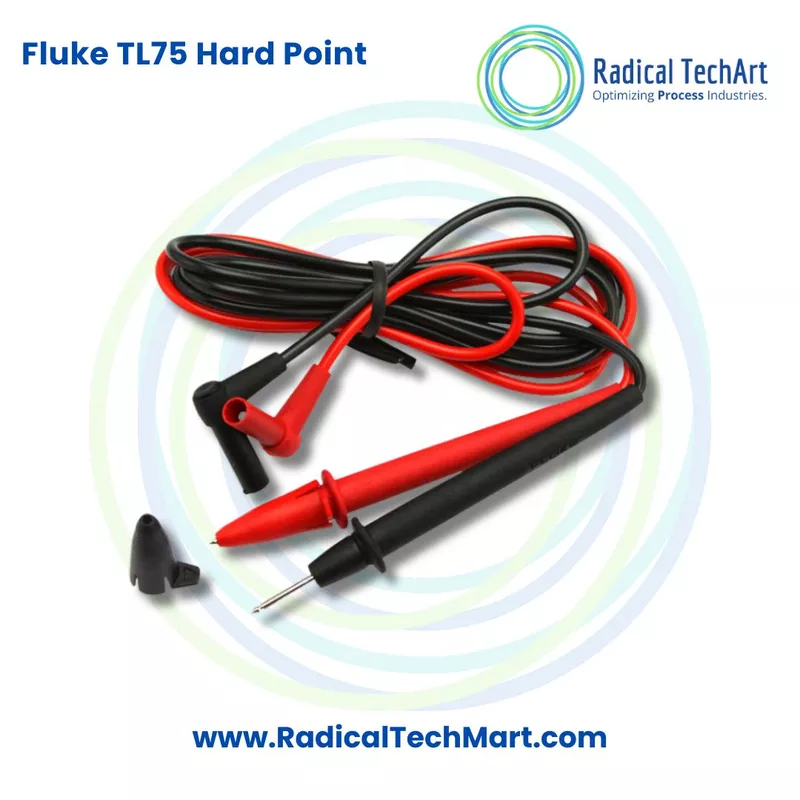

The set includes one red probe and one black probe with comfortable grips, PVC insulation and right-angle shrouded banana plugs. Each lead measures 48 inches, or approximately 1.22 metres, providing sufficient reach for general electrical testing, panel maintenance and equipment troubleshooting.

Main Product Features

• One red and one black comfort-grip probe
• Hard point probe tips for secure electrical contact
• 48-inch, or 1.22-metre, PVC-insulated test leads
• Right-angle shrouded banana plug connections
• CAT II 1000 V and 10 A rating without protective caps
• CAT III 1000 V and CAT IV 600 V rating when protective caps are fitted
• Compatible with a wide range of Fluke meters and test tools
• Can be used with selected Fluke alligator clips and probe adapters

Model: Fluke TL75
Part Number: 855705
UPC: 095969011587

B. Working Principle

The Fluke TL75 works as the electrical connection between a digital multimeter or compatible test instrument and the circuit being measured.

The red and black banana plugs are inserted into the appropriate input terminals of the meter. The hard point probe tips are then placed on the required electrical test points. Electrical signals pass through the insulated test leads to the meter, allowing the instrument to measure parameters such as voltage, resistance, continuity and other supported electrical values.

The hard point tips help establish precise contact with terminals, wires and components. Protective caps reduce the amount of exposed metal at the probe tips, helping improve safety when measurements are performed in higher-category electrical environments.

The protective caps also change the applicable safety rating:

• Without the protective caps: CAT II 1000 V and 10 A
• With the protective caps: CAT III 1000 V and CAT IV 600 V

C. Why the Fluke TL75 Test Lead Set Is Used

Reliable Electrical Contact

The hard point probe tips help technicians make secure contact with terminals, conductors and electrical components during testing.

General-Purpose Electrical Measurements

The TL75 is recommended for routine electrical measurements and can be used with a broad range of compatible Fluke meters and tools.

Improved User Safety

Protective caps reduce exposed probe-tip metal and allow the leads to meet CAT III 1000 V and CAT IV 600 V ratings for suitable applications.

Convenient Meter Connection

The right-angle shrouded banana plugs provide a secure connection to compatible measuring instruments while helping keep the cable positioned conveniently during use.

Comfortable Handling

The comfort-grip probe design helps technicians hold and position the probes during extended testing and troubleshooting work.

Expanded Measurement Capability

The TL75 can be used with compatible accessories such as the Fluke AC175 Alligator Clip Set and TP920 Test Probe Adapter Set, allowing the leads to support additional testing requirements.

D. Suitable Buyers

Electricians

Suitable for electrical installation testing, wiring checks, continuity measurements and routine fault finding.

Industrial Maintenance Technicians

Useful for checking control panels, motors, machinery, switches and industrial electrical systems.

Electrical Engineers

Appropriate for testing, commissioning and troubleshooting electrical equipment and circuits.

Automation and Control Panel Professionals

Suitable for checking panel terminals, relays, controllers, power supplies and automation wiring.

HVAC Service Technicians

Useful for diagnosing electrical circuits, contactors, controls and power connections in HVAC equipment.

Service and Repair Centres

Suitable for technicians testing electrical equipment, electronic devices and compatible measuring instruments.

Technical Training Institutes

Can be used in laboratories and training environments for teaching basic electrical measurement and multimeter operation.

Frequently Asked Questions

1. What is the Fluke TL75 Hard Point Test Lead Set?

The Fluke TL75 is a pair of red and black PVC-insulated test leads with comfort-grip hard point probes. It is designed for general-purpose electrical measurements with compatible Fluke meters and test tools.

2. What is the length of the Fluke TL75 test leads?

Each test lead measures 48 inches, which is approximately 1.22 metres.

3. What is the safety rating of the Fluke TL75?

Without protective caps, the TL75 is rated CAT II 1000 V and 10 A. When the protective caps are installed, the rating becomes CAT III 1000 V and CAT IV 600 V.

4. What is included in the Fluke TL75 set?

The set includes one red comfort-grip probe and one black comfort-grip probe with PVC-insulated leads, right-angle shrouded banana plugs and protective caps.

5. Can the Fluke TL75 be used with digital multimeters?

Yes. The TL75 is compatible with a wide range of Fluke meters and test tools that accept the appropriate shrouded banana plug connection.

6. What measurements can be performed using Fluke TL75 leads?

The leads can be used for general-purpose measurements supported by the connected instrument, including voltage, resistance, continuity and other compatible electrical measurements.

7. Why are protective caps supplied with the probes?

The caps reduce exposed probe-tip metal and help the leads achieve higher measurement-category ratings for suitable electrical environments.

8. Are the Fluke TL75 leads suitable for industrial maintenance?

Yes. Their insulated construction, hard point probes and safety ratings make them suitable for routine industrial electrical testing and maintenance.

9. Can accessories be connected to the Fluke TL75?

Yes. Fluke identifies the AC175 Alligator Clip Set and TP920 Test Probe Adapter Set as compatible accessories for extending measurement capability.

10. What is the part number of the Fluke TL75?

The Fluke TL75 Hard Point Test Lead Set has part number 855705.
