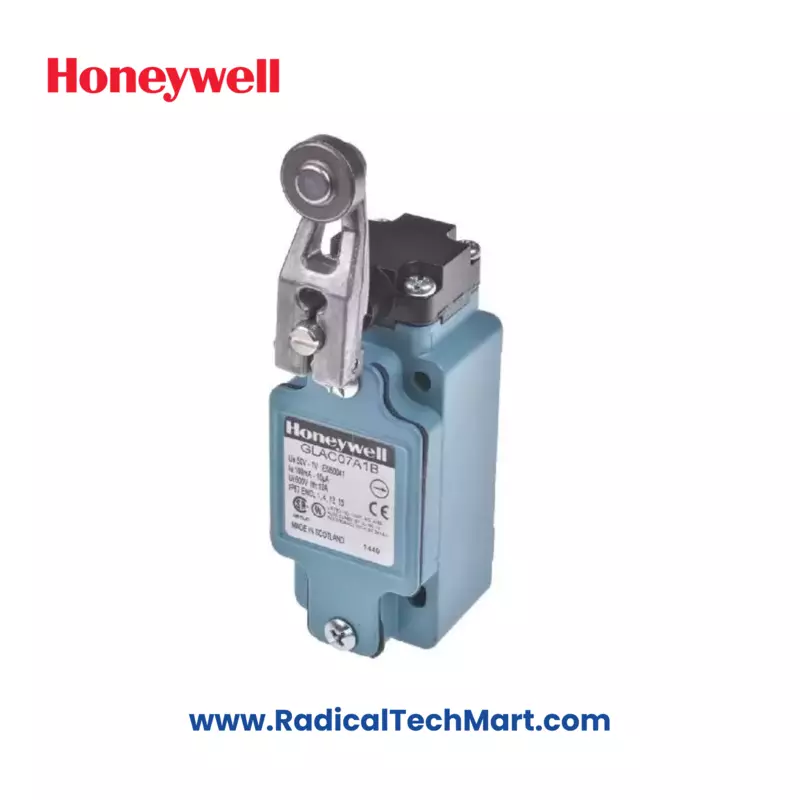

GLAC07A1B Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | GLAC07A1B |
| Certifications | CE, CCC1, CSA, UL |
| Conforming to standards | IEC/EN 60947-5-1, EN45545-2 (GLA/GLF Series), EN 61373 |
| Housing material | Electrostatic epoxy coated zinc |
| Actuators | Side rotary, top pin plunger, top adjustable plunger, top roller plunger, top roller lever, wobble stick (multi-directional) actuator, cat whisker (multi-directional) actuator |
| Termination | 0.5-14 NPT; PG 13,5; M20; G 1/2 (PF 1/2); Deutsch style 4-pin connector; Micro-change connector; Mini-change connector; Pre-cabled |
| Contact options* | 1NC/1NO, 2NC, 2NO, 2NC/2NO, 2NC/2NO sequential, 2NC/2NO center neutral |
| Contact type | Snap action, slow action break-before-make (BBM), slow action make-before-break (MBB), slow action |
| Contact material | Silver alloy (standard), gold-plated (low-energy applications) |
| Utilization category | ac15, A300/A600; dc13, Q300 |
| Rated operational voltage (Ue) | 240 Vac, 600 Vac, 250 Vdc |
