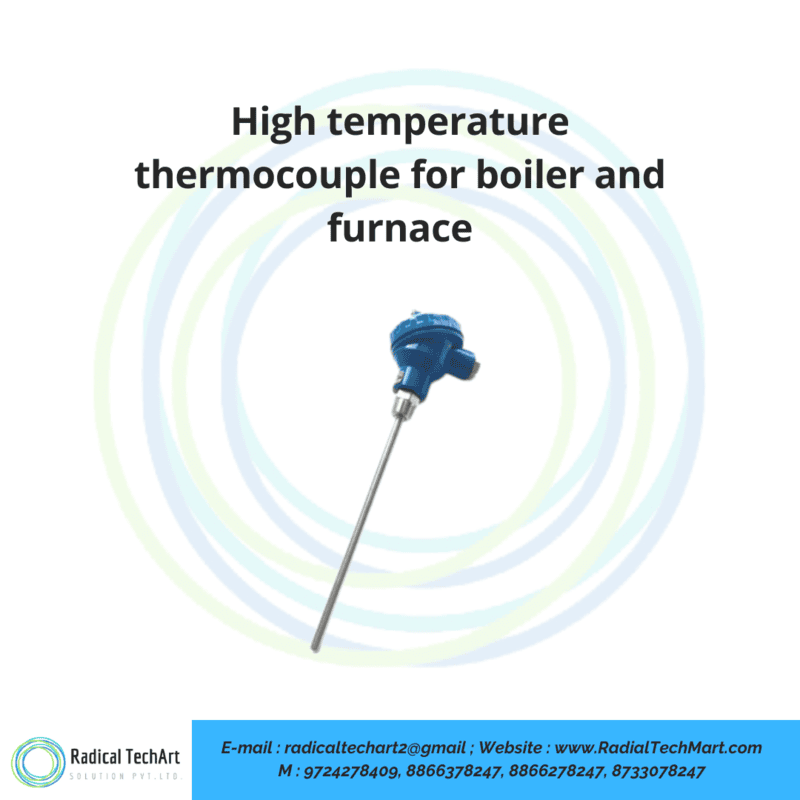

High Temperature Type K and N Thermocouple for Boiler and Furnace

A. Product Overview

High temperature thermocouple for boiler and furnace is an industrial temperature sensor used for measuring high temperatures in heating systems, furnaces, boilers, kilns, ovens and process equipment.

This thermocouple is commonly available in Type K and Type N options. Type K thermocouples are made using Chromel and Alumel, while Type N thermocouples are made using Nicrosil and Nisil. Both types are suitable for high temperature applications and can measure temperatures up to 1200°C, depending on the process condition and sensor construction.

The sensor is designed with a strong metallic sheath such as SS316, SS310 or Inconel, making it suitable for harsh industrial environments where heat, vibration and continuous operation are common.

Typical specifications include:

Type: Type K and Type N
Configuration: Simplex and Duplex
Temperature Range: Up to 1200°C
Probe Diameter: 19 mm and 21 mm
Probe Length: 300 mm, 450 mm, 600 mm and customized lengths
Sheath Material: SS316, SS310 and Inconel
Application: Boiler, furnace and industrial heating systems

B. Working Principle

A thermocouple works on the principle of thermoelectric voltage generation. It is made by joining two different metal wires at one end. When this junction is exposed to heat, it generates a small voltage signal.

This voltage changes according to the temperature at the sensing point. The temperature controller, indicator, PLC or monitoring system reads this voltage and converts it into a temperature value.

In boiler and furnace applications, the thermocouple probe is installed inside the heating zone or process area. The sensing tip detects the actual temperature and sends the signal to the control system. This helps operators monitor and control the heating process accurately.

C. Why It Is Used

High temperature thermocouples are used in boiler and furnace applications because they can withstand high heat and provide continuous temperature measurement.

They help in:

Maintaining proper furnace temperature
Monitoring boiler heating performance
Improving process control and safety
Preventing overheating of equipment
Reducing energy wastage
Improving product quality in heat treatment processes
Supporting automation through temperature controllers and PLC systems
Measuring temperature in harsh industrial environments

For high temperature processes, normal temperature sensors may fail due to heat, oxidation or mechanical stress. A high temperature thermocouple with proper sheath material provides better durability and reliable performance.

D. Suitable Buyers

This product is suitable for:

Boiler manufacturers
Furnace manufacturers
Heat treatment plants
Steel plants
Foundries and casting units
Ceramic and kiln industries
Glass manufacturing plants
Power plants
Chemical process industries
Industrial oven manufacturers
Maintenance and utility teams
Process automation system integrators
OEM machine manufacturers
Industrial temperature control panel manufacturers

It is also useful for industries where accurate high temperature monitoring is required for safety, efficiency and process consistency.

FAQ

1. What is a high temperature thermocouple for boiler and furnace?

A high temperature thermocouple is a temperature sensor used to measure heat inside boilers, furnaces and industrial heating equipment. It is designed to withstand high temperature conditions and provide accurate temperature readings.

2. Which thermocouple type is suitable for boiler and furnace applications?

Type K and Type N thermocouples are commonly used for boiler and furnace applications. They are suitable for high temperature measurement and industrial heating processes.

3. What is the temperature range of this thermocouple?

This high temperature thermocouple can be used up to 1200°C, depending on the thermocouple type, sheath material and actual process conditions.

4. What sheath materials are available?

Common sheath materials include SS316, SS310 and Inconel. The selection depends on the temperature, atmosphere and application requirement.

5. What is the difference between simplex and duplex thermocouple?

A simplex thermocouple has one sensing element, while a duplex thermocouple has two sensing elements inside the same probe. Duplex thermocouples are useful when two readings are required from the same sensing point or when one element is kept as a backup.

6. Can the probe length be customized?

Yes, probe length can be customized as per application requirement. Common lengths include 300 mm, 450 mm and 600 mm.

7. Where is this thermocouple commonly used?

It is commonly used in boilers, furnaces, kilns, industrial ovens, heat treatment plants, steel plants, foundries and high temperature process equipment.

8. Why is Inconel used in high temperature thermocouples?

Inconel is used because it offers better resistance to high temperature, oxidation and harsh industrial environments compared to standard stainless steel materials.

9. Can this thermocouple be connected to a temperature controller?

Yes, this thermocouple can be connected to a temperature controller, indicator, PLC, data logger or automation panel for temperature monitoring and control.

10. How do I select the right thermocouple for my boiler or furnace?

To select the right thermocouple, check the maximum temperature, process atmosphere, probe length, probe diameter, sheath material, mounting type and required accuracy.
