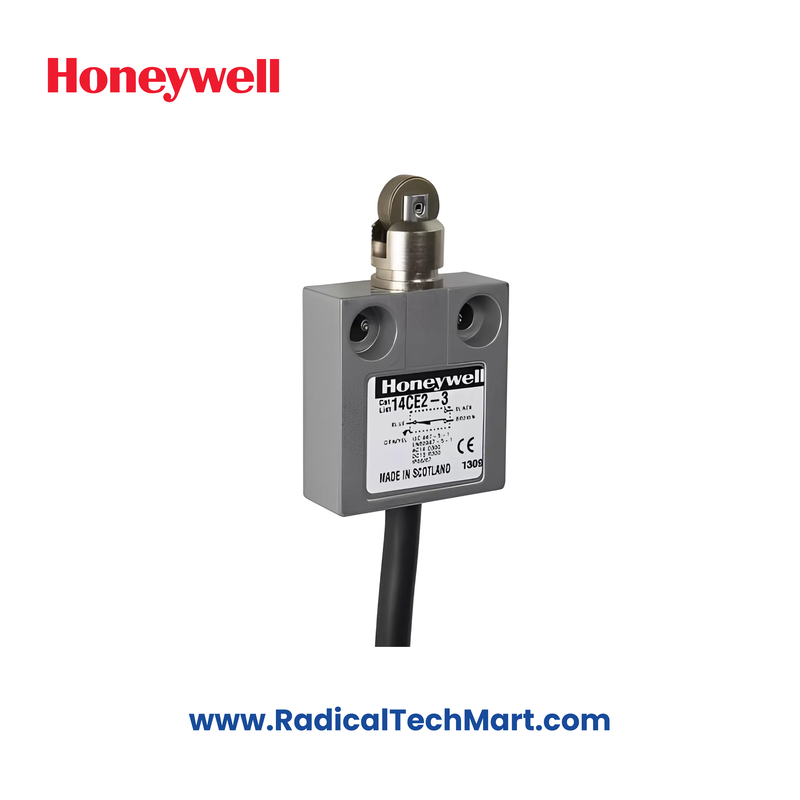

Honeywell 14CE1-3AL Limit Switch

Product Summary:
The Honeywell 14CE1-3AL is a high-durability SPDT snap-action limit switch designed for industrial automation applications requiring robust sealing, precision actuation, and extended mechanical life.

Key Features:

• SPDT snap-action contacts (1NO/1NC)

• Cable termination: Harmonized CENELEC PVC 4 x 0.75 mm²

• Connector options: M12 (DC) and ½”x20 (AC) thread variants

• IP65, IP66, IP67, IP68 sealing with NEMA 1, 2, 3, 3R, 4, 6, 6P, 12, 13

• Mechanical life up to 10 million operations

• Operating temperature range: 0°C to 70°C (optional -40°C)

• Rated insulation voltage: 250V, Uimp: 1.5 kV

• Compact and rugged design suitable for harsh environments




Applications:

• Packaging and conveyor systems

• Material handling equipment

• Factory automation and robotics

• Outdoor industrial machines and controls

• Machinery with high mechanical cycling



Product Benefits:

• Long mechanical life reduces maintenance frequency

• Versatile mounting and wiring options

• Superior environmental sealing ensures reliability in harsh conditions

• Compact footprint for easy installation in tight spaces



FAQs:

Q1: What type of actuator does the Honeywell 14CE1-3AL use?
A1: This model is compatible with a wide range of actuator types, including wobble actuators for flexibility in mounting and operation.

Q2: Is this switch suitable for outdoor environments?
A2: Yes, with IP68 and NEMA 6P ratings, it's ideal for both indoor and outdoor harsh environmental conditions.

Q3: Can this switch operate at sub-zero temperatures?
A3: Yes, it can operate down to -40°C with optional low-temperature configurations.
