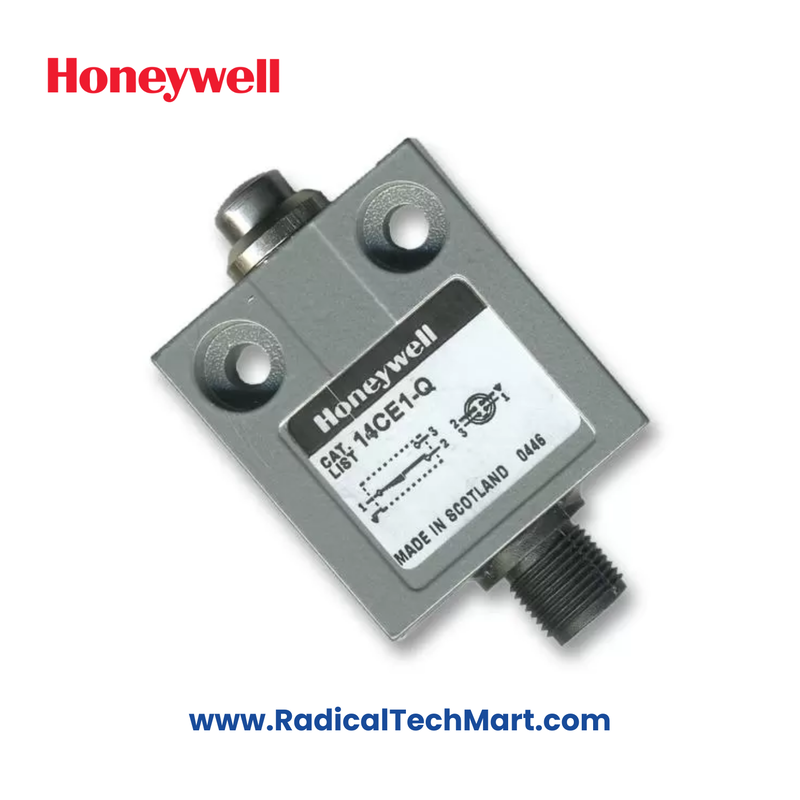

Honeywell 14CE1-Q Limit Switch | IP65-IP68 Rated

🔹 Product Summary:
The Honeywell 14CE1-Q Limit Switch is a robust industrial-grade electromechanical switch, designed for reliable position detection in harsh environments. It offers SPDT snap-action contacts, high sealing standards, and optional M12 connectivity.

🔹 Key Features:

• Model: 14CE1-Q with M12 connector

• Contact Type: SPDT (1NO+1NC) Snap Action

• Cable Termination: 4 x 0.75 mm² (PVC sheathed)

• Protection Class: IP65, IP66, IP67, IP68; NEMA 1, 2, 3, 3R, 4, 6, 6P, 12, 13

• Mechanical Life: Up to 10 million cycles

• Operating Temp: 0°C to 70°C (Optional -40°C)

• Thermal Current Ratings: 1A, 3A, 5A

• Insulation Voltage: 250V Ui

• Rated Impulse Voltage: 1.5 kV

• Short Circuit Protection: Quick blow fuse



🔹 Applications:

• Factory Automation & Robotics

• Packaging Machines

• Conveyor Systems

• Material Handling Equipment

• Harsh Outdoor Industrial Environments



🔹 Product Benefits:

• Extended mechanical life ensures low maintenance

• High ingress protection suitable for rugged operations

• SPDT contacts enable flexible switching logic

• Prewired cable and connector ease installation

• Performs reliably in extreme temperatures



✅ FAQs:

Q1: Is the Honeywell 14CE1-Q suitable for outdoor applications?
A1: Yes, it meets IP65 to IP68 and NEMA 6P ratings, ideal for outdoor or washdown environments.

Q2: What kind of contact configuration does this switch have?
A2: It uses SPDT snap-action contacts with both NO and NC terminals (Form C).

Q3: Can it operate in sub-zero temperatures?
A3: Yes, an optional model supports operation down to -40°C, perfect for cold climate applications.
