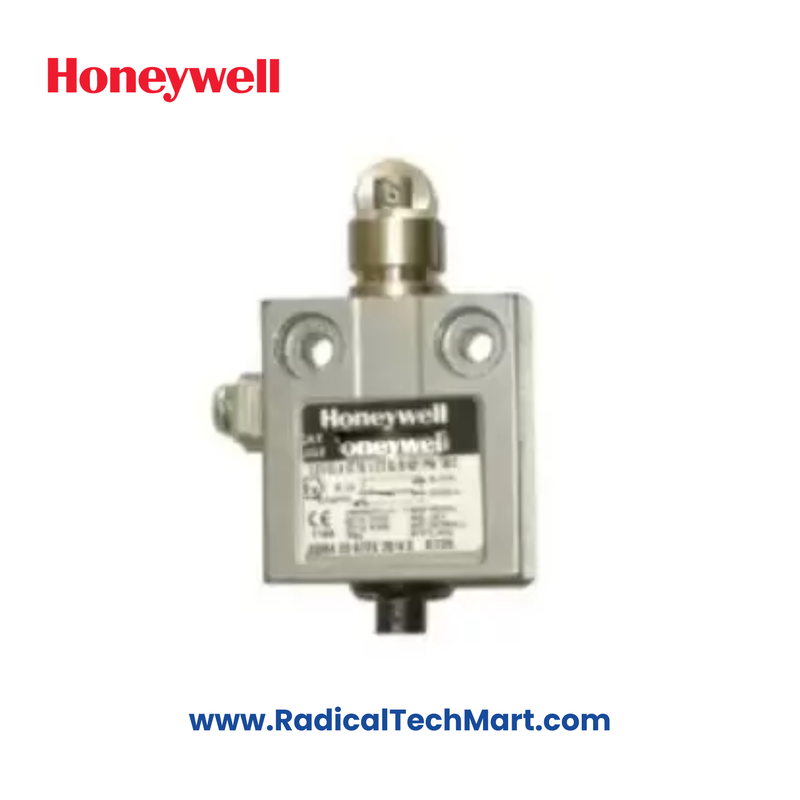

Honeywell 14CE101-6 Flameproof Limit Switch

Product Summary:
Honeywell 14CE101-6 is a compact and highly reliable flameproof limit switch designed for hazardous areas. It features ATEX certification, robust mechanical life, and a durable housing ideal for process automation and control systems.

Key Features:

• Rugged design for industrial use

• Mechanical life of 10 million operations

• Operating temperature range: 0 °C to 70 °C

• Pretravel: 1.8 mm max, Overtravel: 3 mm min

• Flameproof enclosure with ATEX certification

• CE and PTB 98 ATEX 1064 X approvals

• EExd IIC T6 certified for Category II 2 G

• High accuracy with low differential travel

• Operating force: 11.8 N max

• 4-core harmonized cable (CENELEC 4 x 0.75 mm²)



Applications:

• Oil & Gas installations

• Hazardous zone machinery control

• Chemical and pharmaceutical plants

• Flameproof junction boxes and panels

• Industrial automation in ATEX zones



Product Benefits:

• Enhanced safety in explosive atmospheres

• Long-lasting performance in harsh conditions

• High mechanical precision and repeatability

• Compact size for space-restricted installations

• Certified compliance for hazardous area applications



FAQs:

Q1: Is this limit switch suitable for ATEX hazardous zones?
A1: Yes, it is certified EExd IIC T6 and approved for Category II 2 G applications.

Q2: What is the mechanical lifespan of the Honeywell 14CE101-6?
A2: The switch offers a mechanical life of up to 10 million operations, making it highly durable.

Q3: Can it be used in high-vibration industrial environments?
A3: Yes, its rugged flameproof design ensures reliable operation even under vibration and harsh environmental conditions.
