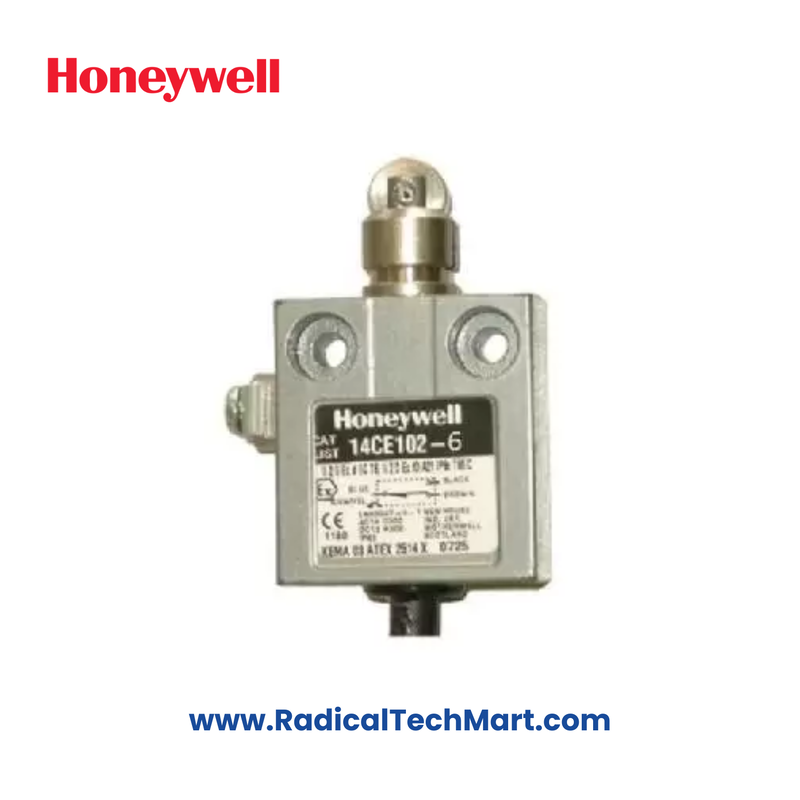

Honeywell 14CE102-6 Explosion Proof Limit Switch
Robust explosion-proof limit switch with CE & ATEX certifications for harsh industrial environments.
Customize
Share :
🔹 Product Summary:
Honeywell 14CE102-6 is a rugged explosion-proof limit switch, engineered for use in hazardous environments. With CE and ATEX approvals, it ensures high durability, reliability, and precision control.
🔹 Key Features:
Mechanical life: 10 million operations
Operating temperature: 0 °C to 70 °C
ATEX certified: EExd IIC T6
Operating force (OF): 11.8 N max
Pretravel: 1.8 mm max
Overtravel: 3.0 mm min
Differential travel: 0.1 mm max
Cable connection: CENELEC 4 x 0.75 mm²
CE approved
🔹 Applications:
Hazardous industrial zones
Oil & gas environments
Petrochemical plants
Heavy machinery & automation
Mining and explosive material handling
🔹 Product Benefits:
Long mechanical life enhances reliability
High resistance to explosive gases and dust
Accurate switching with minimal pretravel
Compact design with sturdy build
Easy wiring with harmonised cable
🔹 FAQs:
Q1: What industries is the Honeywell 14CE102-6 suitable for?
A1: It's ideal for oil & gas, chemical, mining, and any ATEX-rated explosive zone.
Q2: Can this switch operate under extreme temperatures?
A2: Yes, it performs efficiently in 0°C to 70°C environments.
Q3: Is this limit switch compatible with standard control systems?
A3: Yes, it supports standard electrical interfaces via a CENELEC cable.
