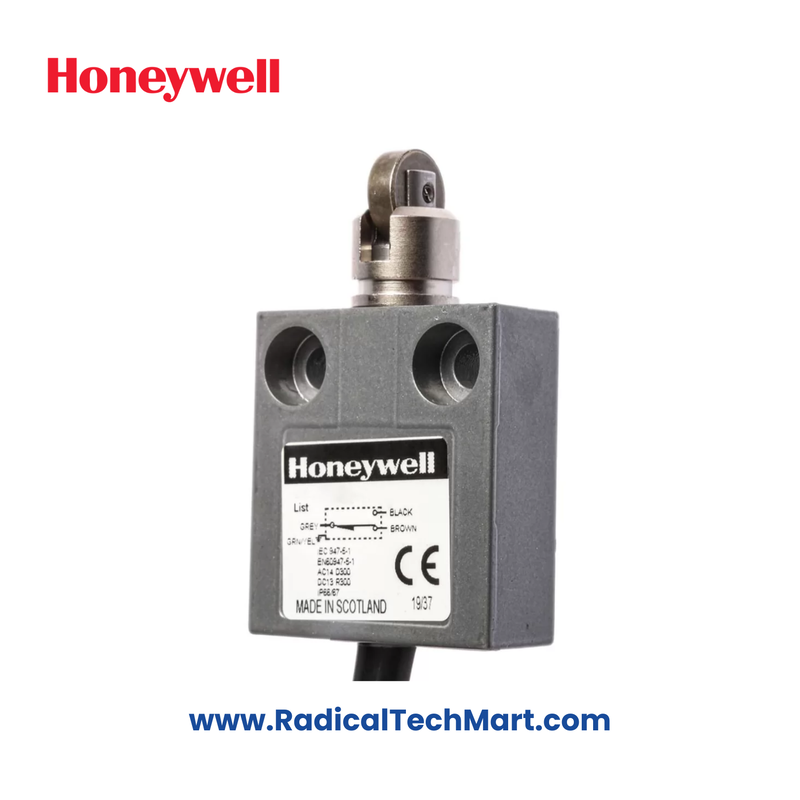

Honeywell 14CE3-2 Limit Switch – IP68, SPDT, Snap Action
Heavy-duty Honeywell 14CE3-2 Limit Switch with SPDT snap action, IP68 sealing, and up to 10 million cycles of mechanical life.
Product Summary:
The Honeywell 14CE3-2 is a rugged and versatile limit switch built for demanding industrial applications. With IP68 sealing, high mechanical life, and multiple connector options, it ensures reliable operation in harsh environments.
Key Features:
SPDT snap action contacts (1NC/1NO) – Form C
IP65, IP66, IP67, and IP68 protection ratings
NEMA 1, 2, 3, 3R, 4, 6, 6P, 12, 13 boot seal enclosure
Wide operating temperature: 0 °C to 70 °C (optional -40 °C)
Mechanical life up to 10 million cycles
Cable termination: Harmonized Cenelec PVC sheathed 4 x 0.75 mm²
Multiple connector options: M12 & ½ x 20 thread
Rated insulation voltage: 250 V
Rated impulse withstand voltage: 1.5 kV
Applications:
Industrial machinery position sensing
HVAC systems & compressors
Packaging automation lines
Conveyor control systems
Harsh and outdoor environment sensing
Product Benefits:
Long-lasting mechanical durability for reduced maintenance
Superior ingress protection ensures outdoor/harsh use
Flexible mounting with multiple connector options
Enhanced operational safety with snap action precision
Suitable for automation OEMs and retrofits alike
FAQs:
Q1. What is the contact configuration of the Honeywell 14CE3-2 switch?
A1. It features an SPDT snap action contact system (1NO/1NC – Form C) for precise switching.
Q2. Can it be used in outdoor or wet environments?
A2. Yes, it has an IP68 rating and complies with multiple NEMA enclosure standards for outdoor and harsh conditions.
Q3. What is the mechanical life of the switch?
A3. The 14CE3-2 model can last up to 10 million cycles, ensuring long-term reliability.
