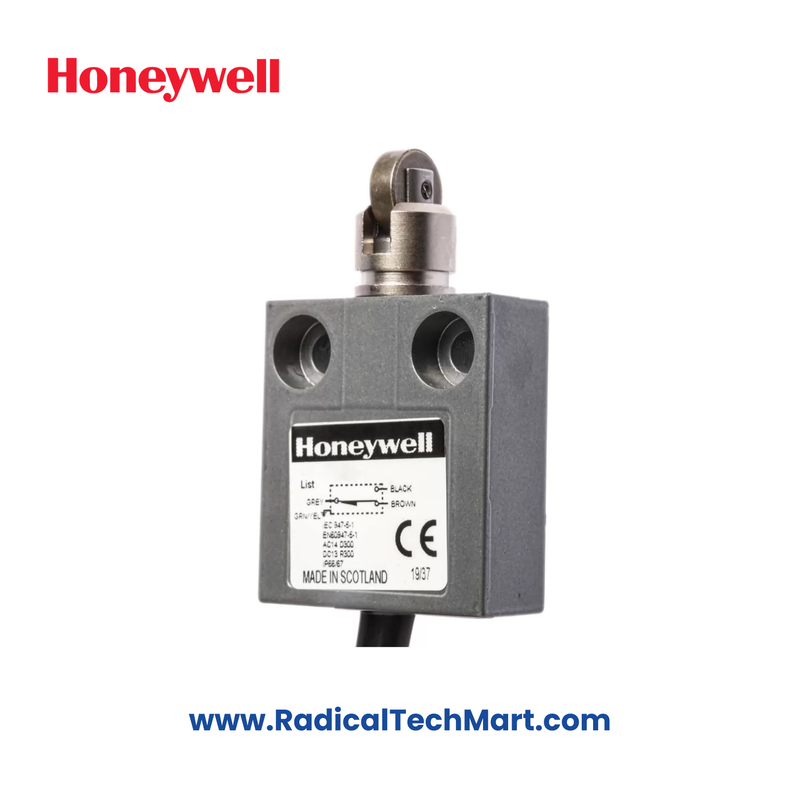

Honeywell 14CE3-Q Limit Switch – SPDT Snap Action, IP67 Sealed
Honeywell 14CE3-Q is a rugged, snap-action SPDT limit switch with IP67 sealing, wide temperature range, and industrial-grade M12 connector.
Product Summary:
The Honeywell 14CE3-Q is a compact, high-performance limit switch featuring SPDT snap-action contacts, multiple sealing ratings (up to IP68), and robust mechanical life up to 10 million cycles. Engineered for harsh industrial environments, it supports reliable position sensing in automation, machinery, and safety systems.
Key Features:
SPDT Snap Action Contacts (1NO/1NC), Form C
M12 Threaded Male 4-pin DC Connector
Sealing Ratings: IP65, IP66, IP67, IP68*
NEMA Types: 1, 2, 3, 3R, 4, 6, 6P, 12, 13
Operating Temp: 0 °C to 70 °C (optional -40 °C)
Mechanical Life: Up to 10 Million Cycles
Rated Insulation Voltage: 250 V
Impulse Withstand Voltage: 1.5 kV
Thermal Current Ratings: 1 A, 3 A, 5 A
Short Circuit Protection via Quick-Blow Fuse
Applications:
Industrial Automation & Motion Control Systems
Packaging & Material Handling Equipment
Robotics & CNC Machines
Process Equipment & Position Monitoring
Safety Interlock Systems
Product Benefits:
High durability and long mechanical life reduce downtime
Reliable in extreme environments with high IP and NEMA ratings
Compact and flexible wiring via M12 connector
Enhanced safety with double insulation and SCPD compatibility
Simplified integration into modern industrial systems
FAQ:
Q1. What type of connector is used in the 14CE3-Q limit switch?
A: It features a 4-pin male M12 thread connector suitable for DC applications.
Q2. Can the switch operate in outdoor environments?
A: Yes, it supports IP65 to IP68 sealing and NEMA ratings, making it ideal for harsh outdoor or washdown environments.
Q3. What’s the maximum operating temperature range?
A: The standard range is 0 °C to 70 °C, with an optional variant that supports down to -40 °C.
