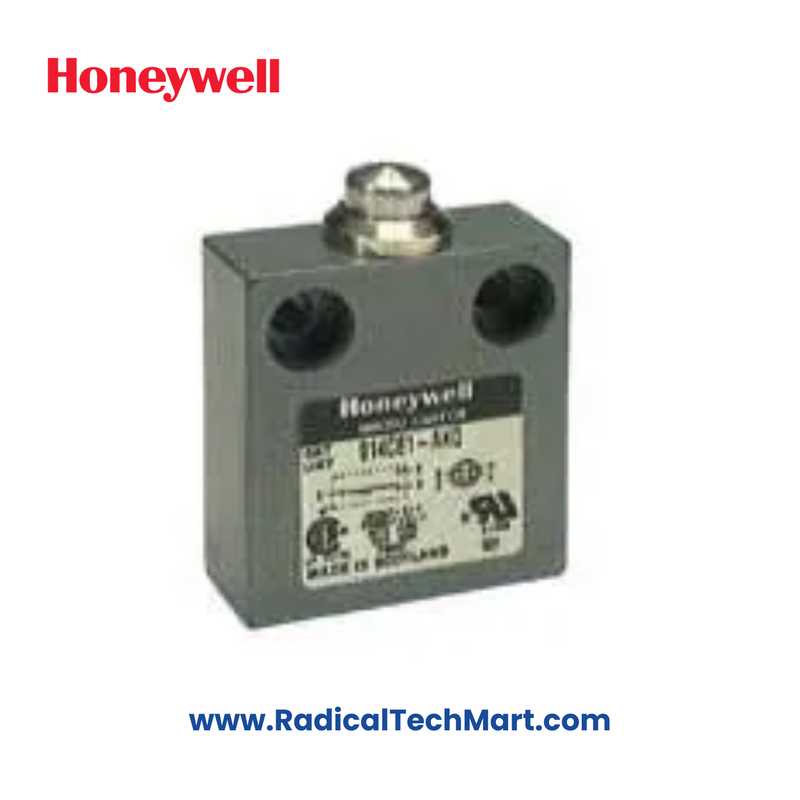

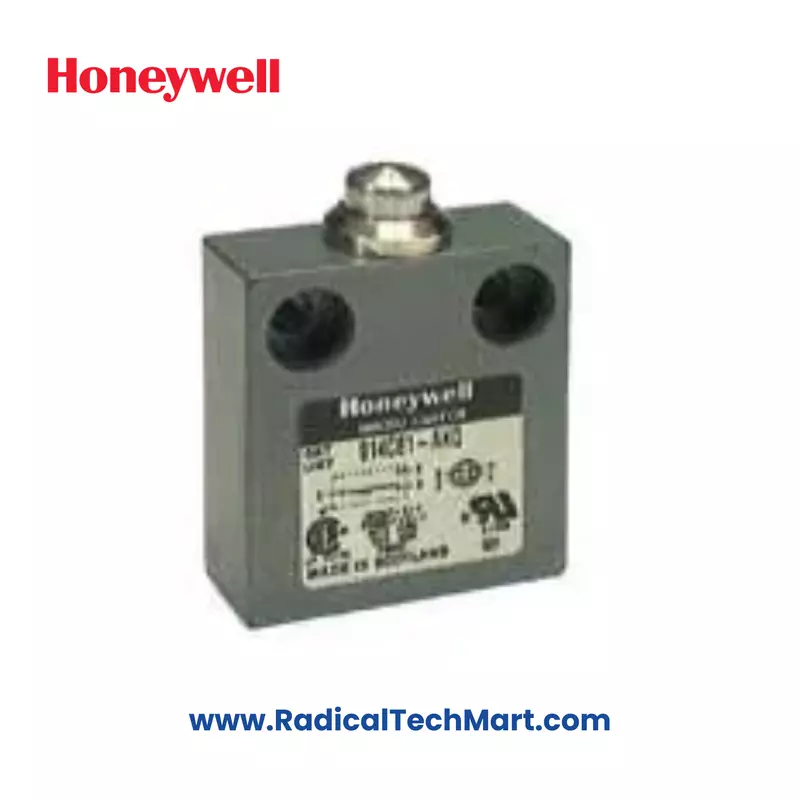

Honeywell 914CE1-3G Compact Enclosed Limit Switch

Product Summary:

The Honeywell 914CE1-3G is a compact and robust limit switch designed for demanding industrial applications. Featuring a top pin plunger actuator and SPDT snap action contacts, it ensures reliable operation in harsh environments with IP66/IP67/IP68 protection. Ideal for use in safety interlock systems, conveyors, and OEM machinery.

Key Features (in points):

• Actuator Type: Top pin plunger

• Contact Type: SPDT snap action (1NO/1NC), Form C

• Cable Length: 3 feet

• Rugged and compact metal housing

• Sealing: IP66, IP67, IP68; NEMA 1, 2, 3, 3R, 4, 6, 6P, 12, 13

• Thermal Current: 1 A

• Insulation Voltage: 250 V (Ui), Impulse Withstand: 1.5 kV

• Shock rating: 50g (IEC 60068-2-27)

• Vibration rating: 10g (IEC 60068-2-6)

• Actuation speed: 0.003 m/s (min), 0.1 m/s (max)

• Max Frequency: 200 Hz (AC), 20 Hz (DC)

• Pollution Degree: 3

• Approvals: cURus, CE, UKCA



Applications (in points):

• Safety interlocks for machinery and conveyor systems

• Packaging, textile, and material handling equipment

• Position detection in automation lines

• Door or access position monitoring

• OEM equipment and control panels



Product Benefits (in points):

• Reliable switching performance in tough industrial conditions

• Suitable for low-speed actuation down to 0.003 m/s

• Global safety and compliance certifications

• Compact design with high mechanical durability

• Easy installation with standard cable length



✅ FAQs

Q1: What type of actuator does the 914CE1-3G use?
A1: It uses a top pin plunger actuator for vertical or linear motion actuation.

Q2: Is this limit switch suitable for outdoor use?

A2: Yes, it has high-grade sealing (IP66, IP67, IP68) and is NEMA-rated for harsh environments.

Q3: What is the maximum actuation frequency supported?
A3: It supports 200 Hz for AC and 20 Hz for DC operations.
