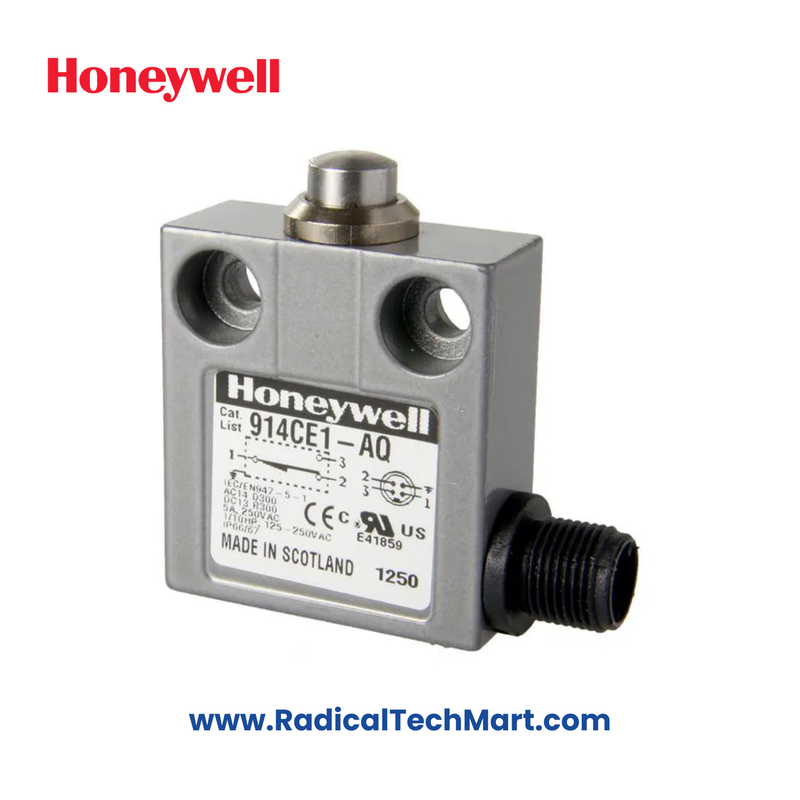

Honeywell 914CE1-AQ1 Compact Enclosed Limit Switch

Product Summary:
The Honeywell 914CE1-AQ1 is a compact, enclosed SPDT limit switch with a top pin plunger actuator. It offers snap action contacts (1NO/1NC), a wide operating temperature range down to -40 °C, and superior sealing (IP66, IP67, IP68), making it ideal for industrial automation and safety applications. With certifications like CE, cURus, and UKCA, it ensures global compliance.

Key Features (in points):

• Actuator Type: Top pin plunger

• SPDT snap action contacts (1NO/1NC), Form C

• Operating temperature: 0 to 105 °C, optional -40 to 105 °C

• Sealing: IP66, IP67, IP68; NEMA 1, 2, 3, 3R, 4, 6, 6P, 12, 13

• Thermal current: 1 A

• Rated insulation voltage (Ui): 250 V

• Rated impulse withstand voltage (Uimp): 1.5 kV

• High durability: 50 g shock, 10 g vibration resistance

• Low actuation speed: min. 0.003 m/s

• Max actuation frequency: 200 Hz (AC), 20 Hz (DC)

• SCPD: Compatible with quick blow fuse

• Approvals: CE, cURus, UKCA



Applications (in points):

• Industrial automation and control systems

• Machine safety and interlock mechanisms

• Packaging and conveyor machinery

• Position sensing in harsh environments

• OEM and process equipment integration



Product Benefits (in points):

• Wide temperature range down to -40 °C for extreme environments

• Reliable and accurate switching for low-speed operations

• Robust sealing and protection for dust, water, and outdoor use

• Compact footprint ideal for space-limited control panels

• Globally certified for compliance and safety



✅ FAQs

Q1: What makes the 914CE1-AQ1 suitable for harsh environments?
A1: Its IP66/IP67/IP68 sealing, shock/vibration resistance, and wide temperature range (-40 °C to 105 °C) make it ideal for extreme conditions.

Q2: What type of contact output does it have?
A2: It features SPDT snap action contacts with 1NC/1NO (Form C configuration).

Q3: Is it compliant with international standards?
A3: Yes, it is CE, cURus, and UKCA certified for global industrial use.
