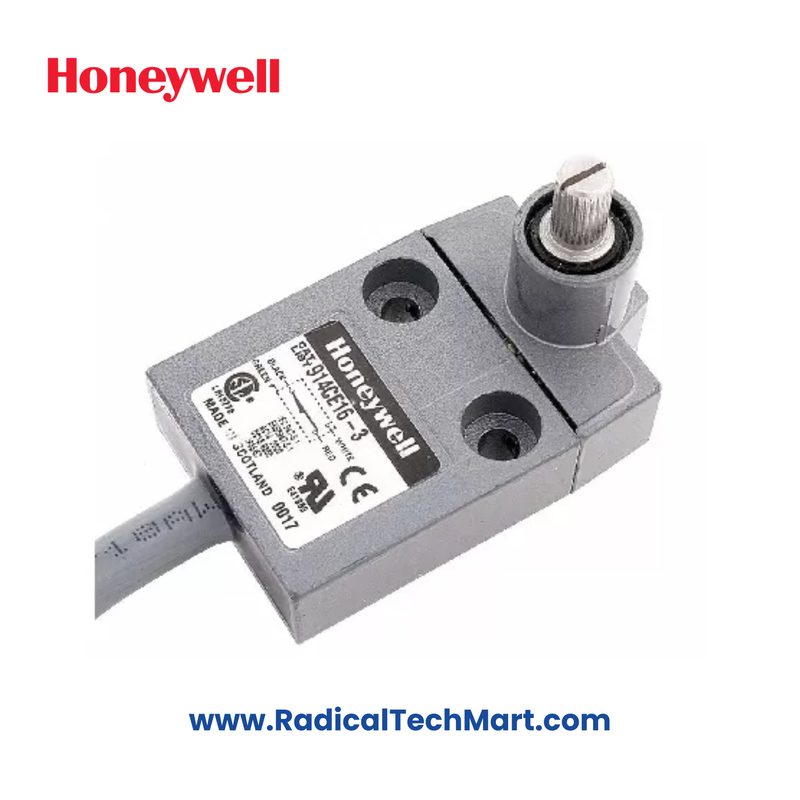

Honeywell 914CE16-3 Compact Enclosed Limit Switch
Customize
Share :
Product Summary:
The Honeywell 914CE16-3 is a compact, enclosed limit switch featuring a side rotary actuator and SPDT snap action contacts (1NO/1NC, Form C). It’s built for reliability in harsh industrial environments with high sealing (IP66, IP67, IP68), mechanical resilience, and wide certification (cURus, CE, UKCA). Ideal for automation systems, OEM machinery, and motion control.
Key Features (in points):
Actuator Type: Side rotary for rotational motion detection
SPDT snap action contacts (1NO/1NC), Form C
3-feet cable for flexible installation
IP66, IP67, IP68 sealing (dustproof & waterproof)
NEMA 1, 2, 3, 3R, 4, 6, 6P, 12, 13 compliant
Thermal current: 1 A
Insulation voltage (Ui): 250 V
Impulse withstand voltage (Uimp): 1.5 kV
Pollution degree: 3
Minimum actuation speed: 0.003 m/s
Maximum actuation speed: 0.1 m/s
Actuation frequency: AC – 200 Hz; DC – 20 Hz
High shock (50 g) and vibration (10 g) resistance
Approvals: cURus, CE, UKCA
Applications (in points):
Rotary motion detection in conveyors
Machine door or gate position sensing
Automated packaging equipment
Industrial robotic arms and turntables
OEM machinery and industrial panels
Product Benefits (in points):
Ideal for detecting angular movement and rotary positioning
Highly durable in mechanical shock and vibration-prone areas
Reliable performance in dusty, wet, or outdoor conditions
Flexible mounting with pre-wired cable
Globally certified for export-ready compliance
✅ FAQs
Q1: What is the main advantage of a side rotary actuator?
A1: It enables accurate detection of rotary or angular motion, ideal for moving parts like arms, levers, or gates.
Q2: Is the Honeywell 914CE16-3 weatherproof?
A2: Yes, it offers IP66, IP67, and IP68 sealing along with multiple NEMA ratings for harsh environments.
Q3: What contact configuration does it offer?
A3: It comes with SPDT snap action contacts (1 Normally Open + 1 Normally Closed), Form C.
