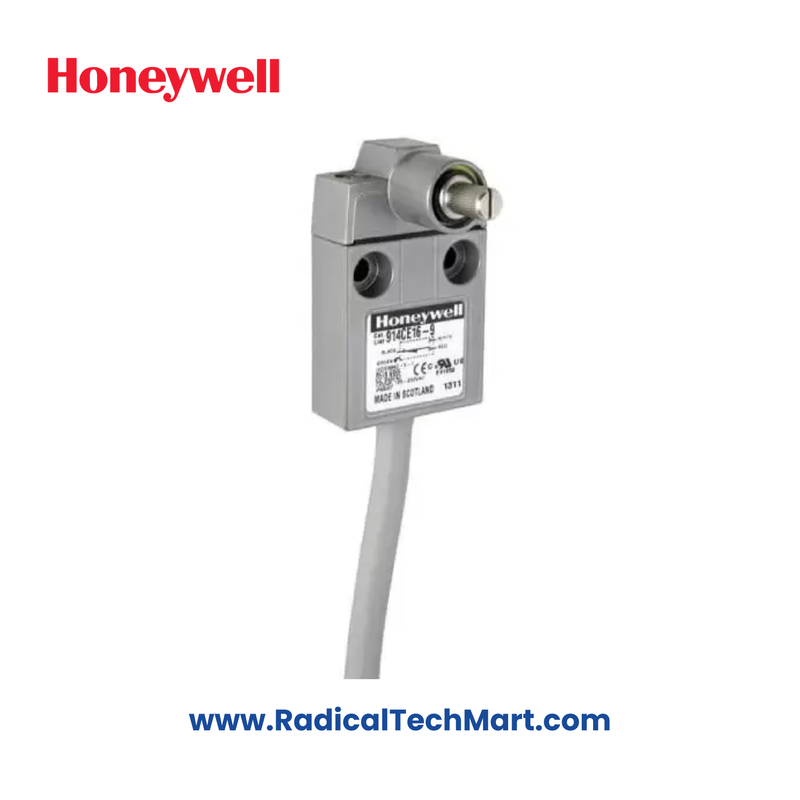

Honeywell 914CE16-9 Compact Enclosed Limit Switch
Customize
Share :
Product Summary:
The Honeywell 914CE16-9 is a rugged, compact limit switch featuring a side rotary actuator and SPDT snap action contacts (1NO/1NC, Form C). Designed for harsh industrial environments, it offers IP66/IP67/IP68 protection, a 9-foot cable, and reliable performance even under shock and vibration. Globally certified, it suits OEM machinery, automation systems, and safety interlocks.
Key Features (in points):
Actuator: Side rotary for angular/rotational detection
Contact: SPDT snap action (1NO/1NC), Form C
Cable Length: 9 feet for extended installation flexibility
Sealing: IP66, IP67, IP68-rated; NEMA 1–13 compliant
Thermal Current: 1 A
Insulation Voltage (Ui): 250 V
Impulse Withstand Voltage (Uimp): 1.5 kV
Min/Max Actuation Speed: 0.003 m/s to 0.1 m/s
Max Actuation Frequency: AC – 200 Hz, DC – 20 Hz
Shock Resistance: 50 g (IEC 60068-2-27)
Vibration Resistance: 10 g (IEC 60068-2-6)
Pollution Degree: 3
Approvals: cURus, CE, UKCA
Applications (in points):
Motion detection in industrial conveyors
OEM machinery position sensing
Process automation and control systems
Robotic and automated rotary mechanisms
Outdoor or washdown areas in food & pharma
Product Benefits (in points):
9-ft cable enables easy integration in large equipment
Rotary actuator ideal for levered or rotational actuation
Reliable switching under high shock and vibration
High sealing ensures use in harsh and wet environments
Compliant with CE, cURus, and UKCA certifications
✅ FAQs
Q1: What is the actuator type in the 914CE16-9 model?
A1: It uses a side rotary actuator ideal for rotational or hinged movement detection.
Q2: Is this switch suitable for long cable runs?
A2: Yes, it comes with a 9-foot cable for extended installation flexibility.
Q3: Can this switch be used in outdoor environments?
A3: Absolutely, with IP66/IP67/IP68 sealing and NEMA-rated enclosure compatibility, it performs well in outdoor and wet environments.
