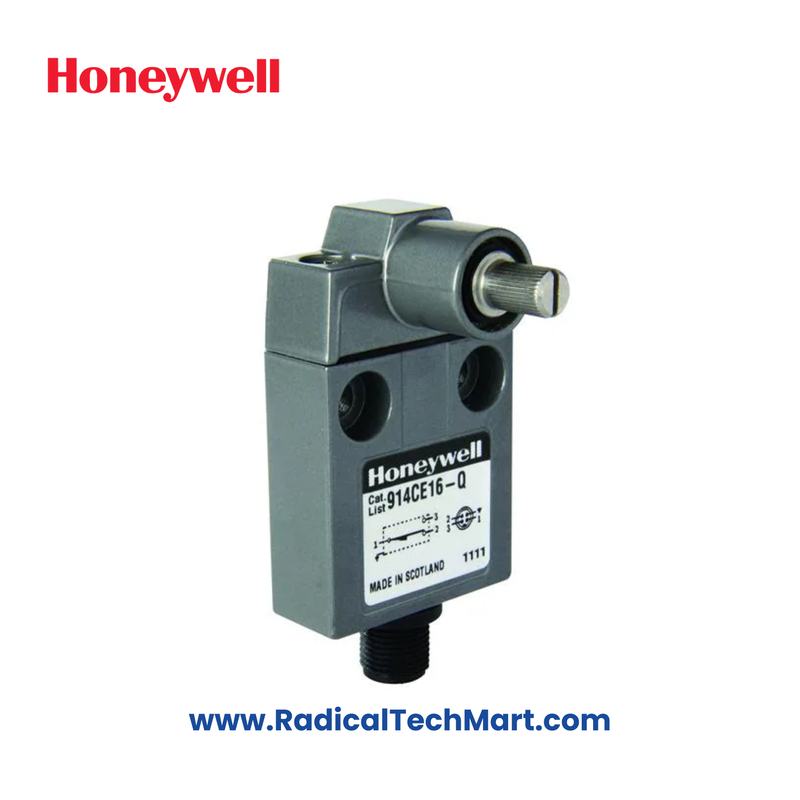

Honeywell 914CE16-AQ Compact Enclosed Limit Switch

Product Summary:

The Honeywell 914CE16-AQ is a robust, compact enclosed limit switch featuring SPDT snap action contacts (1NO/1NC) and designed to withstand the rigors of industrial use. With sealing up to IP68, NEMA ratings for enclosure compatibility, and a mechanical life of 10 million cycles, it delivers dependable performance in harsh environments. It meets global standards including UL, CSA, and CE approvals.

Key Features (in points):

• SPDT snap action contacts (1NO/1NC)

• Rugged sealed enclosure: IP66, IP67, IP68 (depending on model)

• NEMA types: 1, 2, 3, 3R, 4, 6, 6P, 12, 13

• Wide operating temperature: 0 °C to 105 °C

• Long mechanical life: 10 million cycles

• Thermal current: 1 A

• Insulation voltage (Ui): 250 V

• Impulse withstand voltage (Uimp): 1.5 kV

• Pollution degree: 3

• Min. actuation speed: 0.003 m/s

• Max. actuation frequency: AC – 200 Hz, DC – 20 Hz

• Shock resistance: 50 g

• Vibration resistance: 10 g

• Approvals: UL, CSA, CE


  Applications (in points):

• Position sensing in automated machines

• Conveyor and material handling systems

• Robotics and rotary mechanisms

• Industrial door, flap, and valve actuation

• OEM equipment in harsh environments



Product Benefits (in points):

• High durability and long operating life reduce maintenance

• Reliable switching performance even in high-vibration zones

• Water- and dust-resistant for outdoor and washdown applications

• Compact design ideal for tight installation spaces

• Complies with global certifications for export and integration



✅ FAQs

Q1: What is the mechanical life of the Honeywell 914CE16-AQ?
A1: The switch is rated for up to 10 million mechanical operations.

Q2: Is this model waterproof and dustproof?
A2: Yes, it offers IP66 to IP68 sealing along with NEMA-rated enclosure compatibility.

Q3: What contact type does it use?
A3: It features SPDT snap action contacts, offering one normally open (NO) and one normally closed (NC) output.
