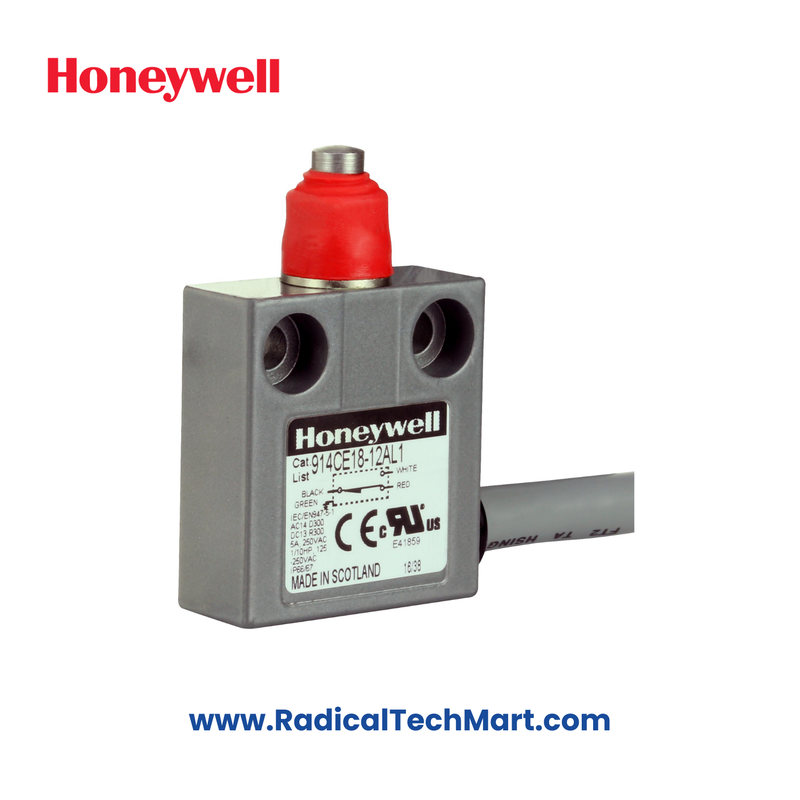

Honeywell 914CE18-12AL1 Compact Limit Switch with M12 Connector

Product Summary:

The Honeywell 914CE18-12AL1 is a rugged and compact enclosed limit switch with SPDT snap action contacts (1NO/1NC), designed for high-performance in industrial automation. It features M12 or 1/2" threaded connector options, robust IP66/IP67/IP68 environmental sealing, and a mechanical life of 10 million cycles, making it ideal for OEM machinery, robotics, and process control.

Key Features (in points):

• Contact Configuration: SPDT snap action (1NO/1NC)

• Cable Termination: SJTO 4 x 0.75 mm² (18 AWG)

• Connector Options:

  • DC: 4-pin male M12 thread (Q/Q2)

  • AC: 4-pin male, 1/2" x 20 thread (Q1)

• Protection Class: IP66, IP67, IP68 rated

• NEMA Enclosure Types: 1, 2, 3, 3R, 4, 6, 6P, 12, 13

• Operating Temperature: 0 °C to 105 °C

• Mechanical Life: 10 million cycles

• Thermal Current: 1 A

• Insulation Voltage (Ui): 250 V

• Impulse Withstand Voltage (Uimp): 1.5 kV

• Pollution Degree: 3



Applications (in points):

• Position sensing in industrial automation

• Robotic movement limit detection

• Conveyor system controls

• Machine tool and OEM systems

• Harsh environment operations (washdown/dusty zones)



Product Benefits (in points):

• Durable construction for long operational life

• Compact form with flexible connector options (M12, 1/2”)

• Water-, dust-, and oil-resistant with IP68 sealing

• Meets UL, CSA, and CE global compliance

• Ideal for high-speed and repetitive applications



✅ FAQs

Q1: What connector types are available for the 914CE18-12AL1?
A1: It is compatible with both M12 (DC) and 1/2" x 20 (AC) 4-pin male connectors.

Q2: Is this limit switch suitable for washdown environments?
A2: Yes, with its IP66/IP67/IP68 protection, it is ideal for harsh and wet environments.

Q3: What is the contact configuration of this model?
A3: It features SPDT snap action contacts with 1 Normally Open and 1 Normally Closed output.
