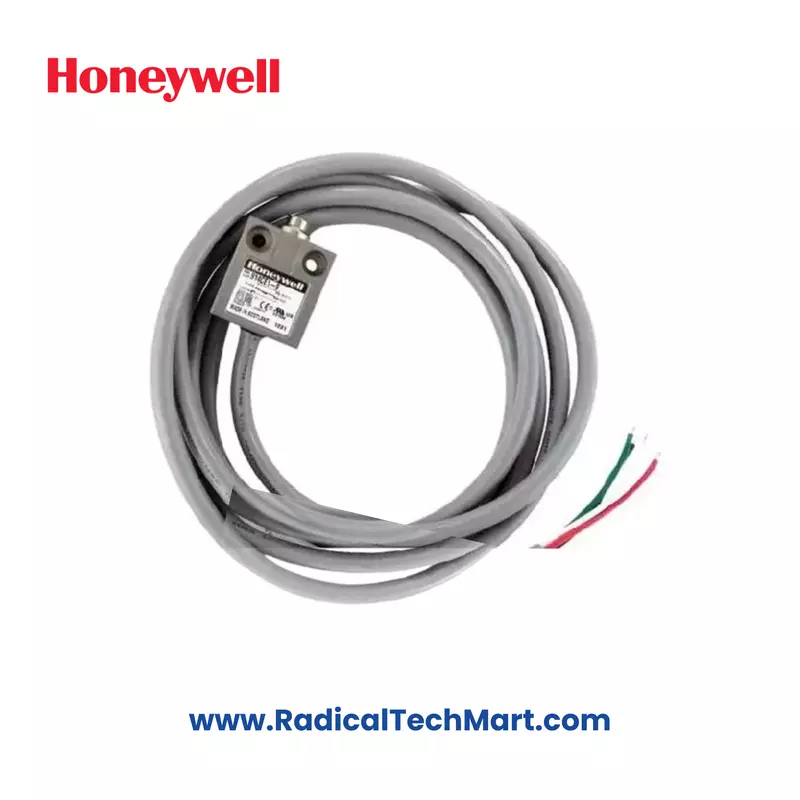

Honeywell 914CE18-15 Compact Limit Switch with M12 Connector

Product Summary:

The Honeywell 914CE18-15 is a compact and enclosed industrial limit switch equipped with SPDT snap action contacts (1NO/1NC), durable SJTO cable termination, and connector-ready options (M12 or 1/2” 4-pin). Designed for use in harsh industrial environments, it features IP66/IP67/IP68 sealing, long mechanical life up to 10 million operations, and global certifications for safety and performance.

Key Features (in points):

• Contact Type: SPDT (1 Normally Open + 1 Normally Closed), Form C

• Termination: SJTO 4 × 0.75 mm² (18 AWG) cable

• Connectors:

  • DC: 4-pin M12 male (-Q / -Q2)

  • AC: 4-pin 1/2" x 20 thread (-Q1)

• Environmental Sealing: IP66, IP67, IP68

• NEMA enclosure types: 1, 2, 3, 3R, 4, 6, 6P, 12 (boot seal), 13

• Operating Temperature:

  • Standard: 0 °C to 105 °C

  • Optional: -40 °C to 105 °C

  • Side Rotary: -40 °C to 100 °C

• Mechanical Life: Up to 10 million cycles

• Thermal Current: 1 A

• Insulation Voltage (Ui): 250 V

• Impulse Withstand Voltage (Uimp): 1.5 kV

• SCPD: Compatible with quick blow fuse



Applications (in points):

• Position sensing in automated production lines

• Conveyor and material handling systems

• Robotics and machine tools

• OEM machinery and motion control panels

• Harsh outdoor and washdown environments



Product Benefits (in points):

• Extended cable and connector flexibility (M12, 1/2")

• IP68-rated durability for wet, dusty, or oily environments

• Long-lasting mechanical reliability with 10 million cycles

• Versatile for OEMs, panel builders, and automation projects

• Certified for use globally – CE, UL, CSA compliant



✅ FAQs

Q1: Does the 914CE18-15 model support plug-and-play installation?
A1: Yes, with M12 and 1/2" threaded connector options, it supports fast and reliable installation.

Q2: Is it suitable for outdoor or high-moisture environments?
A2: Absolutely. It offers IP66, IP67, and IP68 protection against dust and water ingress.

Q3: How long will the switch last in continuous applications?
A3: It’s rated for up to 10 million mechanical cycles for high-repeatability applications.
