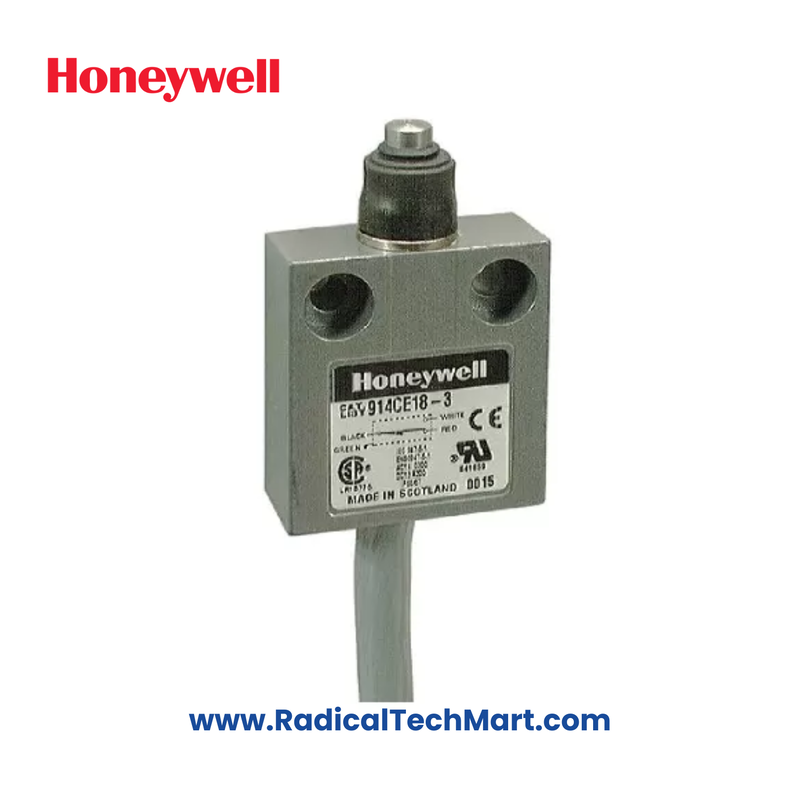

Honeywell 914CE18-3 Compact Enclosed Limit Switch

Product Summary:


The Honeywell 914CE18-3 is a durable, compact limit switch featuring a top pin plunger with boot seal, 3-foot cable, and SPDT snap action contacts (1NO/1NC). It offers robust environmental protection (IP66/IP67/IP68), bottom cable entry, and is built to withstand high shock, vibration, and mechanical stress—making it ideal for use in industrial machinery, OEM systems, and automation control.

Key Features (in points)

• Actuator Type: Top pin plunger with boot seal

• Contact Type: SPDT (1NO + 1NC), Form C

• Cable Length: 3 feet

• Cable Exit: Bottom

• Sealing: IP66, IP67, IP68; NEMA 1, 2, 3, 3R, 4, 6, 6P, 12, 13

• Thermal Current: 1 A

• Insulation Voltage (Ui): 250 V

• Impulse Withstand Voltage (Uimp): 1.5 kV

• Actuation Speed: 0.003 m/s (min) to 0.1 m/s (max)

• Frequency: AC – 200 Hz; DC – 20 Hz

• Shock Resistance: 50 g (IEC 60068-2-27)

• Vibration Resistance: 10 g (IEC 60068-2-6)

• SCPD: Quick blow fuse recommended

• Pollution Degree: 3



Applications (in points):

• Machine automation and safety circuits

• OEM industrial equipment

• Packaging and material handling systems

• Position control in mechanical actuators

• Washdown and dusty environments



Product Benefits (in points):

• Boot seal enhances actuator protection in wet/dusty areas

• Compact design fits tight industrial spaces

• Long service life with high mechanical endurance

• SPDT contacts support flexible control and alarm logic

• Certified durability in shock/vibration-prone installations



✅ FAQs

Q1: What is the actuator type of the 914CE18-3 model?
A1: It features a top pin plunger actuator with a boot seal for enhanced protection.

Q2: Is this switch suitable for wet or outdoor environments?
A2: Yes, it is sealed up to IP68 and supports multiple NEMA enclosure types.

Q3: How long is the cable provided with this switch?
A3: It includes a pre-wired 3-foot cable with bottom cable entry.
