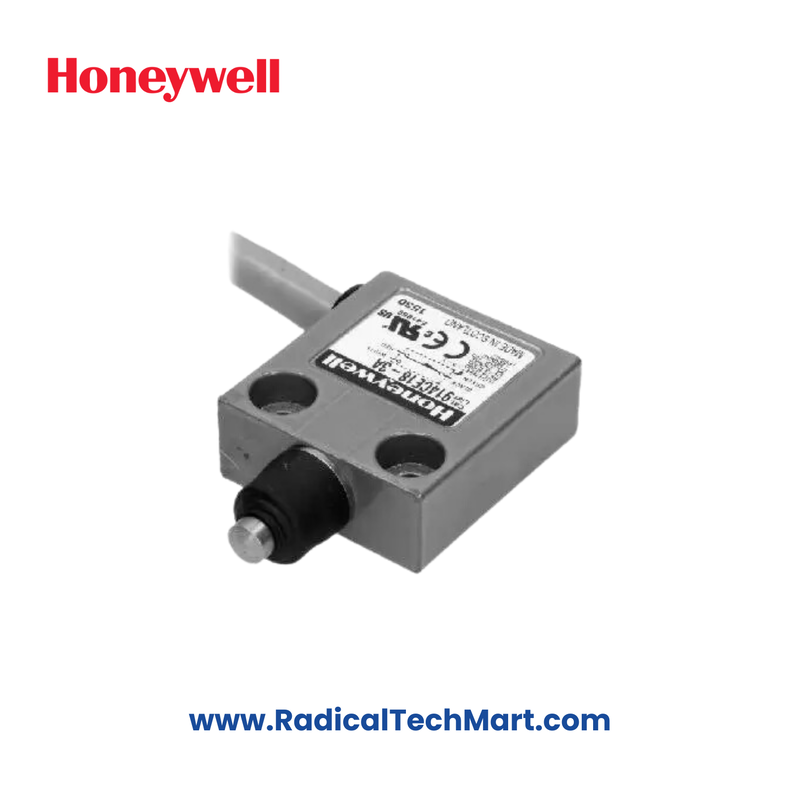

Honeywell 914CE18-3A Compact Limit Switch with Top Pin Plunger

Product Summary:

The Honeywell 914CE18-3A is a durable compact enclosed limit switch designed with a top pin plunger actuator and boot seal for added protection in contaminated or moist environments. Featuring SPDT snap action contacts (1NO/1NC) and a 3-foot cable, it offers superior sealing (IP66/IP67/IP68) and is certified for global industrial applications with CE, UKCA, and cURus approvals.

Key Features (in points):

• Top pin plunger actuator with boot seal

• SPDT snap action contacts (1NO/1NC), Form C

• Bottom cable exit – 3 feet length

• Environmental protection: IP66, IP67, IP68

• NEMA enclosure ratings: 1, 2, 3, 3R, 4, 6, 6P, 12, 13

• Thermal current: 1 A

• Rated insulation voltage (Ui): 250 V

• Rated impulse withstand voltage (Uimp): 1.5 kV

• Pollution degree: 3

• Minimum actuation speed: 0.003 m/s

• Maximum actuation speed: 0.1 m/s

• Max actuation frequency: AC – 200 Hz; DC – 20 Hz

• Shock rating: 50 g (IEC 60068-2-27)

• Vibration rating: 10 g (IEC 60068-2-6)

• Approvals: CE, cURus, UKCA



Applications (in points):

• Machine tool and automation panels

• Conveyor position sensing systems

• Material handling and packaging equipment

• Industrial robots and OEM assemblies

• Harsh environment detection and safety systems



Product Benefits (in points):

• Boot-sealed actuator ensures protection against dust and water ingress

• Compact design ideal for tight installation spaces

• SPDT contacts support flexible wiring for control and alarm systems

• Long mechanical life with high shock and vibration tolerance

• Globally certified for safe and reliable integration



✅ FAQs

Q1: What is the difference between 914CE18-3 and 3A models?
A1: The 914CE18-3A features the same actuator and specs but may include enhanced construction or updated boot seal options based on application variants.

Q2: Can it operate in washdown areas?
A2: Yes, it is IP66/IP67/IP68 sealed and NEMA-rated for harsh industrial conditions.

Q3: What kind of contacts does it use?
A3: It uses SPDT snap action contacts with 1 normally open and 1 normally closed output (Form C).
