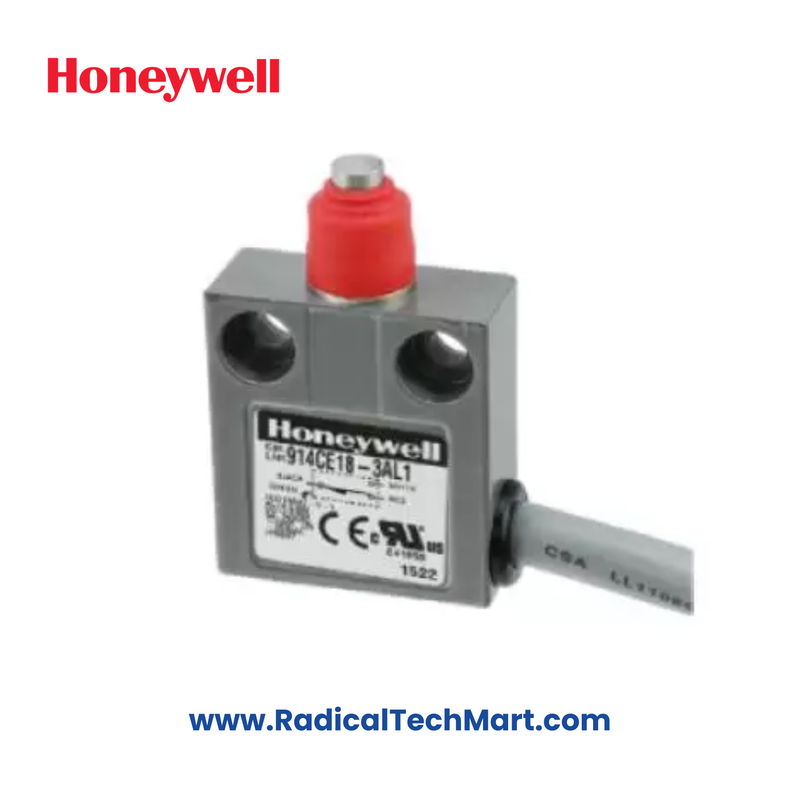

Honeywell 914CE18-3AL1 Compact Limit Switch with Top Pin Plunger

Product Summary:

The Honeywell 914CE18-3AL1 is a compact enclosed limit switch equipped with a top pin plunger actuator and boot seal to offer enhanced protection in dusty or wet industrial conditions. Featuring SPDT snap action contacts (1NO/1NC) and a 3-foot cable, it’s sealed up to IP68, supports multiple NEMA types, and carries global approvals such as cURus, CE, and UKCA.

Key Features (in points):

• Top pin plunger actuator with boot seal for ingress protection

• SPDT snap action contacts (1NO/1NC), Form C

• Sealed to IP66, IP67, IP68 for water/dust protection

• Cable Length: 3 feet

• NEMA Ratings: 1, 2, 3, 3R, 4, 6, 6P, 12, 13

• Thermal Current: 1 A

• Rated Insulation Voltage (Ui): 250 V

• Rated Impulse Withstand Voltage (Uimp): 1.5 kV

• Pollution Degree: 3

• Actuation Speed: 0.003 m/s to 0.1 m/s

• Max Actuation Frequency: AC – 200 Hz; DC – 20 Hz

• Shock Resistance: 50 g (IEC 60068-2-27)

• Vibration Resistance: 10 g (IEC 60068-2-6)

• Certifications: cURus, CE, UKCA



Applications (in points):

• Industrial automation & position detection

• Packaging & material handling equipment

• OEM machinery in washdown zones

• Safety interlocks in process systems

• Robotics and motion systems



Product Benefits (in points):

• Boot seal prevents ingress from dust, moisture, and oil

• Reliable switching in harsh environments

• SPDT configuration supports dual-signal wiring

• Compact design with global certifications for OEM integration

• Ideal for high-vibration and repetitive-use applications



✅ FAQs

Q1: What makes the 914CE18-3AL1 suitable for tough environments?
A1: Its IP66/IP67/IP68 sealing, boot seal, and NEMA-rated enclosure support reliable operation in dusty, wet, and industrial settings.

Q2: What is the electrical output type of this switch?
A2: It provides SPDT (1NO/1NC) snap action contacts suitable for control and safety circuits.

Q3: Where is the cable positioned on this model?
A3: The 3-foot cable exits from the bottom, ideal for panel or surface mounting.
