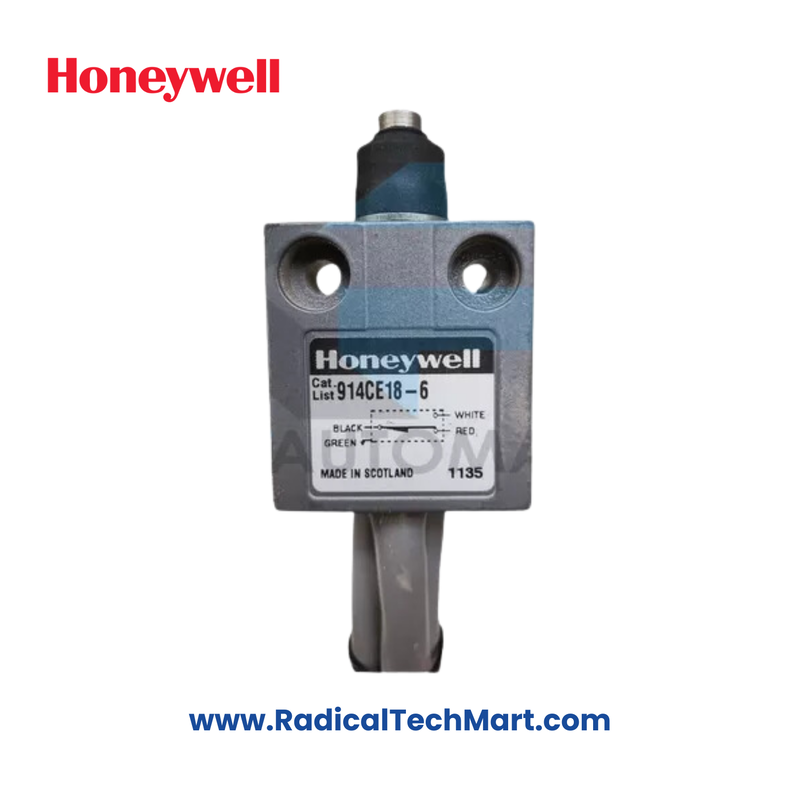

Honeywell 914CE18-6 Compact Limit Switch with 6 Ft Cable

Product Summary:

The Honeywell 914CE18-6 is a durable and compact enclosed limit switch with a top pin plunger actuator and boot seal for added protection against contamination. Designed for tough industrial applications, it features SPDT snap action contacts (1NO/1NC), a 6-foot cable, and is rated up to IP68 for extreme environmental sealing. It meets international standards with cURus, CE, and UKCA approvals.

Key Features (in points):

• Top pin plunger actuator with boot seal

• Contact Type: SPDT snap action (1NO/1NC), Form C

• 6-foot cable for flexible mounting

• Sealing: IP66, IP67, IP68 protection

• NEMA Ratings: 1, 2, 3, 3R, 4, 6, 6P, 12, 13

• Thermal current: 1 A

• Rated insulation voltage (Ui): 250 V

• Rated impulse withstand voltage (Uimp): 1.5 kV

• Pollution degree: 3

• Actuation speed: Min 0.003 m/s, Max 0.1 m/s

• Max actuation frequency: AC – 200 Hz; DC – 20 Hz

• Shock resistance: 50 g (IEC 60068-2-27)

• Vibration resistance: 10 g (IEC 60068-2-6)

• Approvals: cURus, CE, UKCA



Applications (in points):

• Conveyor systems and machine automation

• Material handling and packaging equipment

• OEM machinery in industrial environments

• Position sensing in safety interlock systems

• Moisture, dust, or vibration-prone industrial zones



Product Benefits (in points):

• Boot-sealed actuator protects against dust and moisture

• Long 6-foot cable provides mounting flexibility

• Reliable in high-shock and high-vibration environments

• SPDT contacts support dual-function control circuits

• Globally certified and NEMA rated for broad compatibility



✅ FAQs

Q1: What is the difference between 914CE18-3 and 914CE18-6?
A1: The 914CE18-6 features a longer 6-foot cable for easier mounting in larger setups, with all other specs remaining similar.

Q2: Is the switch suitable for outdoor or washdown use?
A2: Yes, its IP68 sealing and NEMA ratings make it ideal for wet or dusty environments.

Q3: What type of contacts are used?
A3: It uses SPDT snap action contacts offering one normally open (NO) and one normally closed (NC) output.
