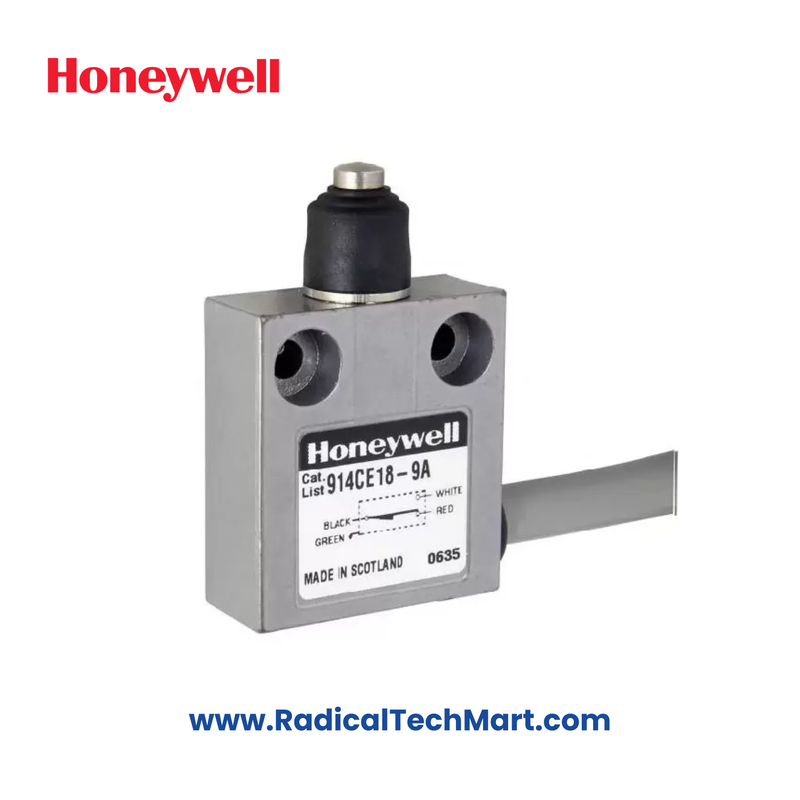

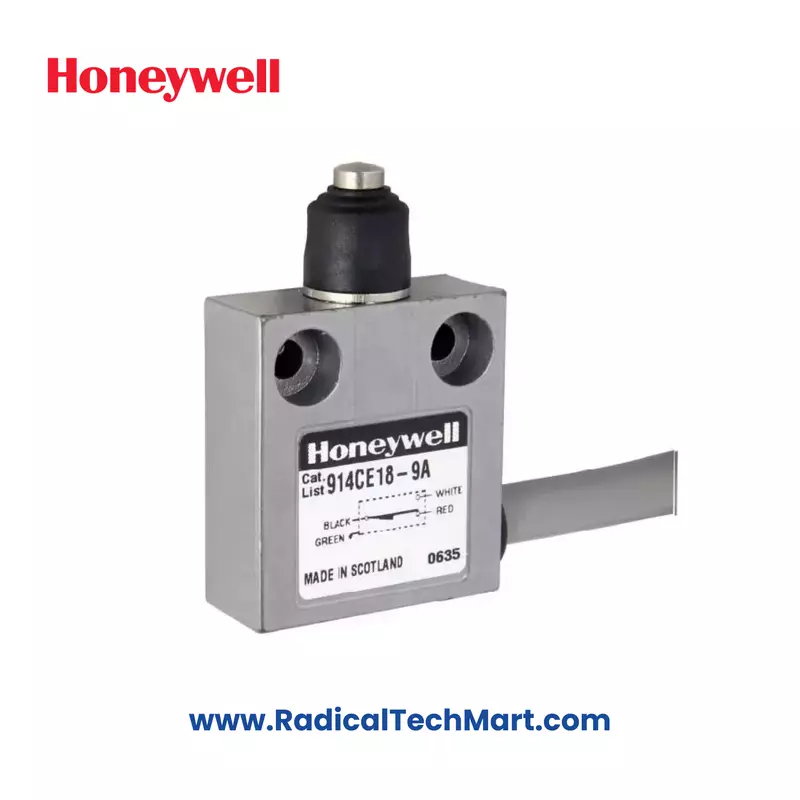

Honeywell 914CE18-9A Compact Limit Switch with 9 Ft Cable

Product Summary:

The Honeywell 914CE18-9A is a compact enclosed limit switch featuring a top pin plunger actuator with boot seal, engineered for long-term performance in tough industrial settings. With SPDT snap action contacts (1NO/1NC) and a 9-foot cable, this model provides flexible installation, IP66/IP67/IP68 sealing, and global certifications (CE, UKCA, cURus) for OEM, automation, and safety applications.

Key Features (in points):

• Top pin plunger actuator with protective boot seal

• Contact type: SPDT snap action (1NO/1NC), Form C

• Long 9-foot cable for extended mounting reach

• IP66, IP67, IP68 protection against dust and water

• NEMA enclosure compatibility: 1, 2, 3, 3R, 4, 6, 6P, 12, 13

• Thermal current: 1 A

• Rated insulation voltage (Ui): 250 V

• Rated impulse withstand voltage (Uimp): 1.5 kV

• Minimum actuation speed: 0.003 m/s

• Maximum actuation speed: 0.1 m/s

• Maximum actuation frequency: AC – 200 Hz; DC – 20 Hz

• Shock resistance: 50 g | Vibration resistance: 10 g

• Pollution degree: 3

• Approvals: cURus, CE, UKCA\

• Applications (in points):

• Conveyor and assembly line position sensing

• Automated packaging and robotics systems

• Safety interlocks in machinery panels

• Industrial doors, flaps, and gantry equipment

• OEM setups in high-dust or wet zones



Product Benefits (in points):

• 9-ft cable offers flexible installation in large equipment

• Boot-sealed actuator ensures durability in harsh conditions

• SPDT contacts allow dual control/alarm configurations

• Long mechanical life with strong shock/vibration resistance

• Globally certified and NEMA-rated for export and compliance



✅ FAQs

Q1: What is the primary advantage of the 914CE18-9A model?
A1: It offers a 9-foot cable for extended mounting distance and a boot-sealed actuator for added durability.

Q2: Is this model suited for outdoor or washdown environments?
A2: Yes, the IP66/IP67/IP68 sealing and NEMA-rated enclosure support operation in wet and dusty conditions.

Q3: What kind of output contacts does this switch have?
A3: It uses SPDT snap action contacts with one NO and one NC output (Form C).
