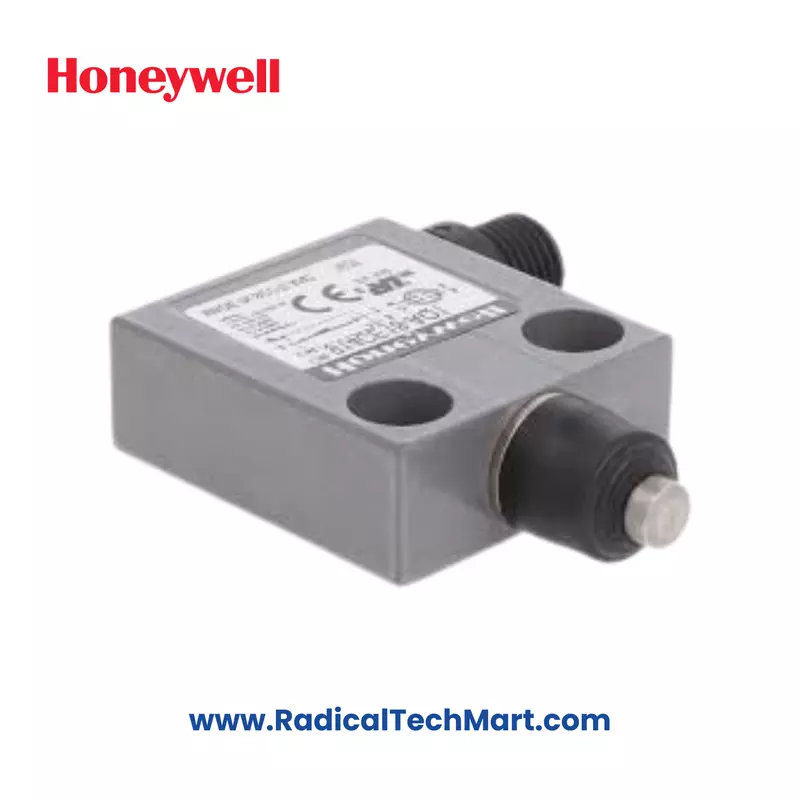

914CE18-AQ1 Honeywell Limit Switch

Product Summary:

The Honeywell 914CE18-AQ1 is a robust enclosed limit switch designed for precision and durability. Featuring SPDT snap action contacts, top pin plunger with boot seal, and IP66/IP67/IP68 sealing, it is ideal for harsh industrial environments requiring reliable actuation.

Key Features (in points):

• Actuator Type: Top pin plunger with boot seal

• Contact Type: SPDT snap action (1NC/1NO), Form C

• Sealing: IP66/IP67/IP68; NEMA 1–13 compliant

• Operating Temp: -40 °C to 105 °C (optional low temp)

• Mechanical durability: up to 10 million cycles

• Rated Insulation Voltage: 250 V | Impulse: 1.5 kV

• Vibration: 10 g | Shock: 50 g compliant with IEC

• Min/Max actuation speed: 0.003 m/s to 0.1 m/s

• Max frequency: AC – 200 Hz; DC – 20 Hz

• Certified: cURus, CE



Applications (in points):

• Industrial machinery position detection

• Conveyor safety and limit control

• Robotics and motion automation systems

• Outdoor and washdown applications

• OEMs in packaging and processing sectors



Product Benefits (in points):

• Reliable operation in harsh environments

• Easy integration into control systems

• Extended life with high mechanical endurance

• Sealed against dust, water, and contaminants

• Suitable for both AC and DC environments



✅ FAQs

Q1: What type of actuator does the 914CE18-AQ1 have?
A1: It features a top pin plunger with a boot seal for better environmental protection.

Q2: Can this switch handle extreme temperatures?
A2: Yes, it can operate from -40 °C to 105 °C with optional versions.

Q3: Is this switch suitable for outdoor industrial use?
A3: Absolutely. It meets IP66/IP67/IP68 and NEMA 6/6P/13 ratings for rugged use.
