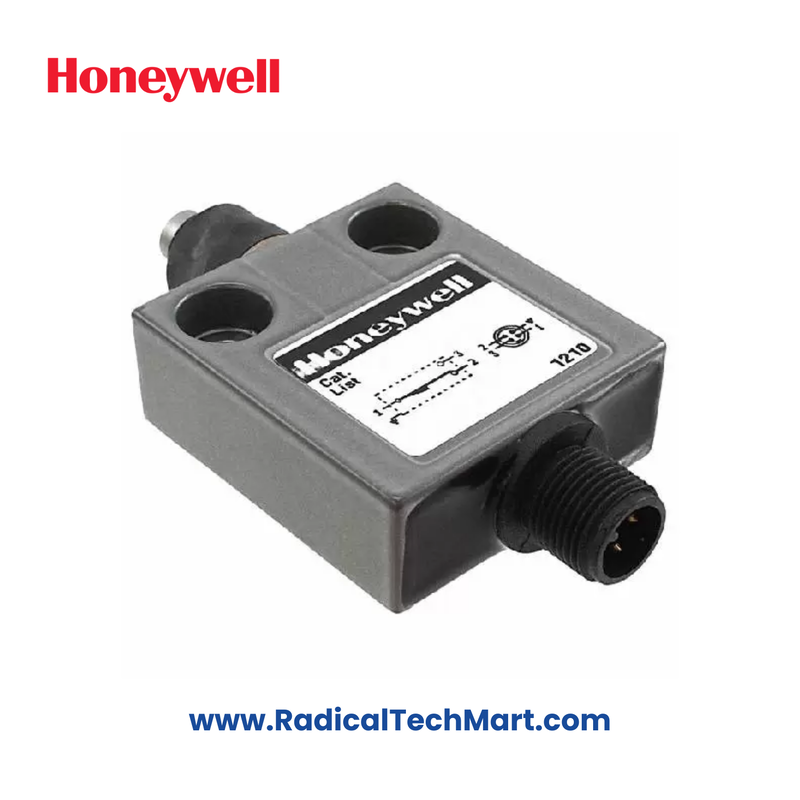

Honeywell 914CE18-Q Compact Limit Switch

Product Summary:

The Honeywell 914CE18-Q is a high-performance compact enclosed limit switch featuring SPDT snap action contacts and durable boot seal protection. Designed with M12 threaded connectors and a broad temperature tolerance, it's ideal for demanding applications across manufacturing, automation, and machinery control.

Key Features:

• SPDT snap action contacts (1NO+1NC), Form C

• SJTO 4x0.75 mm² cable terminations

• Side rotary actuator design

• IP66, IP67, IP68* sealing

• NEMA 1, 2, 3, 3R, 4, 6, 6P, 12, 13 certified

• Operating temperature: -40°C to +105°C

• Rated insulation voltage: 250 V

• Rated impulse withstand voltage: 1.5 kV

• Mechanical life up to 10 million operations

• Pollution degree: 3

• Connector options: M12 DC / 1/2” AC male thread



Applications:

• Conveyor and motion control systems

• Heavy-duty packaging machinery

• OEM panels and automated assemblies

• Equipment requiring waterproof safety switches

• Robotics and pick-and-place machines



Product Benefits:

• Long-lasting and maintenance-free operation

• Works in harsh and wet environments

• Supports easy field wiring with connector options

• Ideal for high-vibration and shock-prone areas

• Offers consistent signal switching for automation safety



✅ FAQs

Q1: What actuator type is used in the 914CE18-Q?
A1: It uses a side rotary actuator suitable for rotating or sliding mechanisms.

Q2: Is the connector included or optional?
A2: The model provides M12 (DC) and 1/2" (AC) threaded male connector options.

Q3: Can this limit switch be used outdoors?
A3: Yes, it's sealed up to IP68 and complies with multiple NEMA ratings for outdoor and washdown use.
