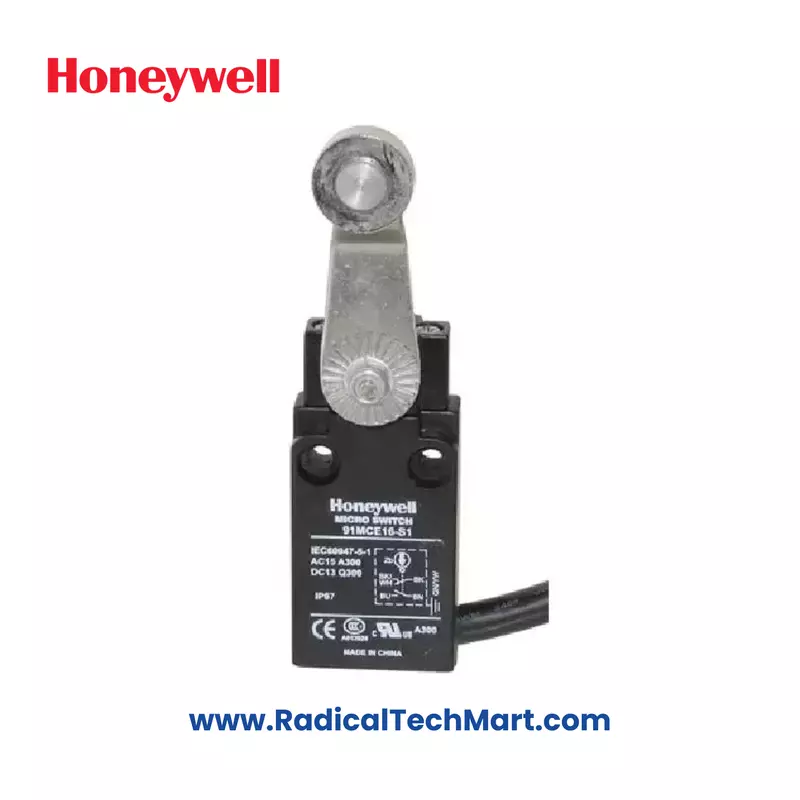

Honeywell 91MCE16-S1 Limit Switch – Side Rotary Actuator
Compact side rotary actuator limit switch for industrial automation with high durability and precision.
Customize
Share :
✅ Product Summary:
The Honeywell 91MCE16-S1 is a robust limit switch designed for precise position sensing in industrial environments. With a side rotary actuator, high mechanical durability, and wide operating temperature range, it's ideal for machinery and automation systems.
🔹 Key Features:
Operating speed: 0.05 mm to 1 m/s
Insulation resistance >100 MΩ @ 500 VDC
Rated voltage: 300 VAC
Thermal current: 10A (pre-leaded), 3A (connector)
Electrical rating: AC 15 A 300; DC 13 Q300
Mechanical life: 5 million operations
Electrical life: 5 × 10⁵ operations
Operating temp: -25°C to +85°C
Humidity resistance: <95% RH
Operating speed: 0.05 mm to 1 m/s
Insulation resistance >100 MΩ @ 500 VDC
Rated voltage: 300 VAC
Thermal current: 10A (pre-leaded), 3A (connector)
Electrical rating: AC 15 A 300; DC 13 Q300
Mechanical life: 5 million operations
Electrical life: 5 × 10⁵ operations
Operating temp: -25°C to +85°C
Humidity resistance: <95% RH
⚙️ Applications:
Packaging machinery
Conveyor systems
CNC and robotics
Material handling equipment
Elevator control systems
Packaging machinery
Conveyor systems
CNC and robotics
Material handling equipment
Elevator control systems
💡 Product Benefits:
Long operational life ensures reduced downtime
High-speed actuation for dynamic systems
Resistant to harsh industrial environments
Consistent electrical performance
Ideal for automation and safety applications
Long operational life ensures reduced downtime
High-speed actuation for dynamic systems
Resistant to harsh industrial environments
Consistent electrical performance
Ideal for automation and safety applications
❓ FAQs:
Q1: What type of actuator does the 91MCE16-S1 use?
A1: It features a side rotary actuator for precise position control.
Q2: Is it suitable for high-speed industrial applications?
A2: Yes, it supports operating speeds up to 1 meter/second.
Q3: Can this limit switch handle extreme environments?
A3: Yes, it operates reliably from -25°C to +85°C and up to 95% humidity.
Q1: What type of actuator does the 91MCE16-S1 use?
A1: It features a side rotary actuator for precise position control.
Q2: Is it suitable for high-speed industrial applications?
A2: Yes, it supports operating speeds up to 1 meter/second.
Q3: Can this limit switch handle extreme environments?
A3: Yes, it operates reliably from -25°C to +85°C and up to 95% humidity.
