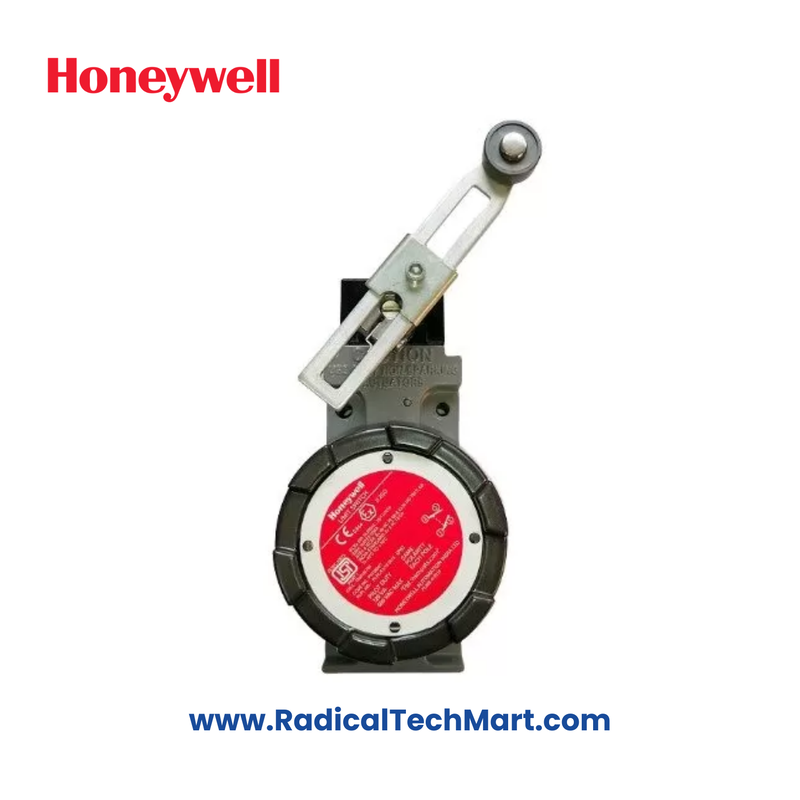

Honeywell 91MCE16-S3 Limit Switch | Snap Action Enclosed

Product Summary:
The Honeywell 91MCE16-S3 is a rugged, enclosed limit switch designed for harsh industrial environments. It features snap-action contacts, high electrical and mechanical life, and reliable performance even under varying environmental conditions.

Key Features:

• Snap-action mechanism for precise switching

• Rated voltage: 300 VAC (EN60947-5-1 compliant)

• Electrical rating: AC-15 A300, DC-13 Q300

• Operating speed: 0.05 mm to 1 m/sec

• Operating temp: -25°C to 85°C

• Insulation resistance: > 100 MΩ @ 500 VDC

• High humidity tolerance: < 95% RH

• Mechanical life: 5 million operations

• Electrical life: 5 x 10⁵ operations

• Rugged enclosed housing suitable for industrial use



Applications:

• Packaging machinery

• Conveyor systems

• Elevator and lift controls

• Automated manufacturing lines

• Safety interlock systems



Product Benefits:

• Long operational life reduces replacement frequency

• Consistent performance under harsh environments

• High insulation resistance ensures electrical safety

• Compact design supports space-constrained installations

• Suitable for both AC and DC control circuits



FAQs:

Q1. What is the mechanical life of the Honeywell 91MCE16-S3?
A1. It offers an expected mechanical life of up to 5 million operations.

Q2. Can this limit switch be used in high-humidity environments?
A2. Yes, it operates reliably in up to 95% relative humidity.

Q3. Is this model suitable for both AC and DC circuits?
A3. Yes, it supports AC (A300) and DC (Q300) control circuits.
