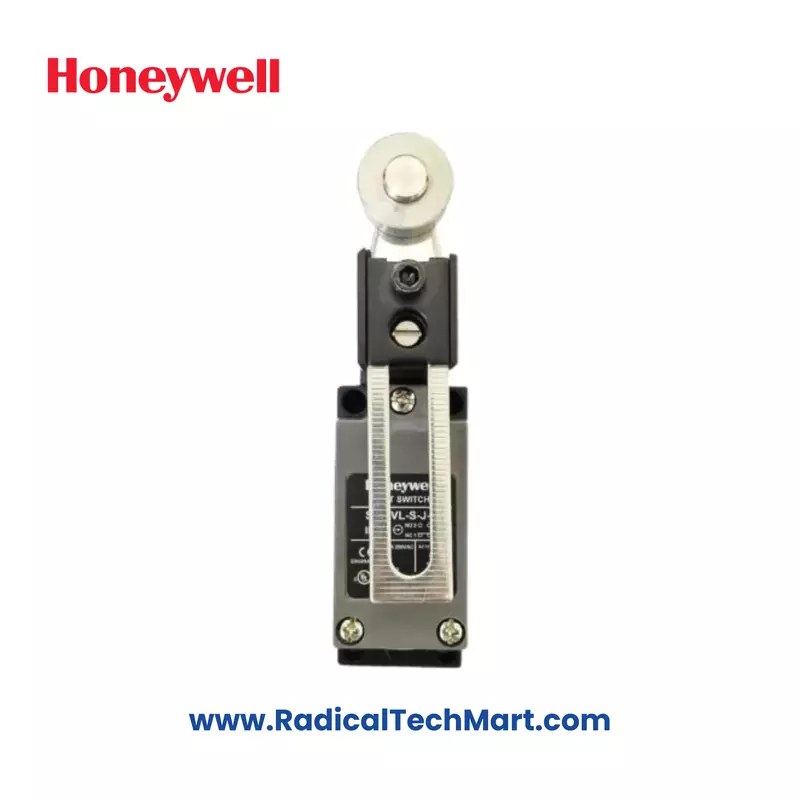

Honeywell 91MCE2-P5B Limit Switch

Product Summary:
The Honeywell 91MCE2-P5B is a compact and durable limit switch designed for demanding industrial environments. It ensures reliable position detection with long mechanical and electrical life, offering safe and precise operation in automation and machinery systems.

Key Features:

• Model No: 91MCE2-P5B

• Operating speed: 0.05 mm to 1 m/s

• Rated voltage: 300 VAC (EN60947-5-1 compliant)

• Rated thermal current: 10A (pre-leaded), 3A (connector versions)

• Electrical Rating: AC15 A300, DC13 Q300

• Operating Temp: -25°C to 85°C

• Mechanical Life: 5 million operations

• Electrical Life: 5,00,000 operations

• High insulation resistance: >100 MΩ @ 500 VDC

• Humidity tolerance: < 95% RH



Application:

• Position sensing in industrial automation

• Safety interlock in machinery

• Conveyor and packaging systems

• OEM machine-building

• Limit control in robotic arms and handling equipment



Product Benefits:

• Long mechanical life ensures low maintenance

• Wide operating temperature range for harsh environments

• Reliable operation at various actuation speeds

• High precision and repeatability for safety-critical systems

• Trusted Honeywell quality with robust design



FAQ:

Q1: Is this limit switch suitable for outdoor use?
A1: While it has a broad temperature and humidity tolerance, ensure proper enclosure for outdoor or wet applications.

Q2: What is the electrical life of the switch?
A2: The Honeywell 91MCE2-P5B has an expected electrical life of 5,00,000 operations.

Q3: Can it handle both AC and DC loads?
A3: Yes, it supports AC15 A300 and DC13 Q300 electrical ratings, making it suitable for both types of circuits.
