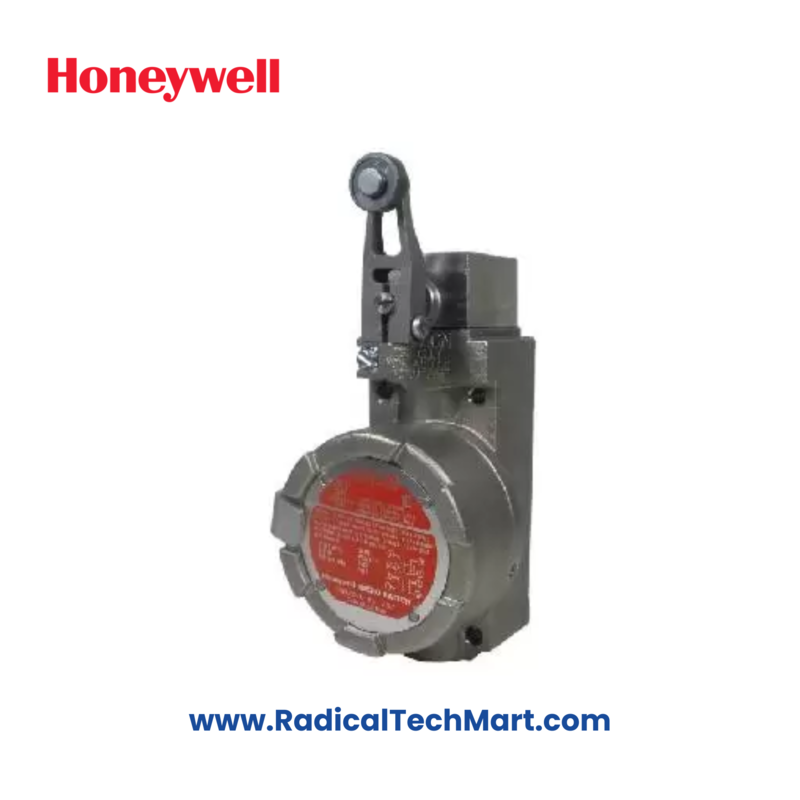

Honeywell BX24D3K Limit Switch – SPDT/DPDT, Multi-Actuator, IP67

Product Summary:
The Honeywell BX24D3K is a robust industrial-grade limit switch that supports multiple actuator types and circuit configurations. Designed with a non-plug-in aluminum or stainless steel housing, it is ideal for demanding applications in automation, machinery, and process control. Sealed to NEMA 1, 3, 4, 6, 13 and IP67 ratings, this model provides maximum durability in harsh environments.

Key Features:

• Model: BX24D3K

• Actuator Types Available:

  • Side/top pin plunger (adjustable available)

  • Side/top roller plunger

  • Side/top rotary (including maintained)

  • Wobble—cat whisker/plastic rod

• Circuitry Options:

  • 1NC 1NO SPDT snap action, double break

  • 2NC 2NO DPDT (standard, sequential, or center neutral)

  • 3NC 1NO slow action, double break

• Electrical Rating: 10 A thermal

  • AC15 A600 / DC13 R300

• Housing: Aluminum (BX) or Stainless Steel (BX2)

• Termination: 0.5 in, 0.75 in NPT, or 20 mm conduit

• Sealing: NEMA 1, 3, 4, 6, 13 and IP67



Applications:

• Factory automation and safety systems

• Conveyors and robotic position sensing

• Packaging and bottling machinery

• Oil & gas processing equipment

• Machine tools and CNC automation



Product Benefits:

• 🔁 Offers both SPDT and DPDT double-break switching

• 🧱 Heavy-duty aluminum or stainless steel construction

• 🌊 NEMA/IP67 sealing ensures reliability in harsh conditions

• ⚙️ Multiple actuator types allow for broad industrial compatibility

• ✅ Ideal for AC/DC circuits in automation and control systems



FAQs:

Q1: What circuit types are supported by the BX24D3K?
A1: It supports SPDT and DPDT circuits, including sequential and center-neutral types.

Q2: Can this limit switch be used outdoors or in wet environments?
A2: Yes, it is sealed to NEMA 6 and IP67, making it suitable for harsh and wet conditions.

Q3: What actuator options does it come with?
A3: Options include plungers, rotary levers, and wobble actuators, both fixed and adjustable.
