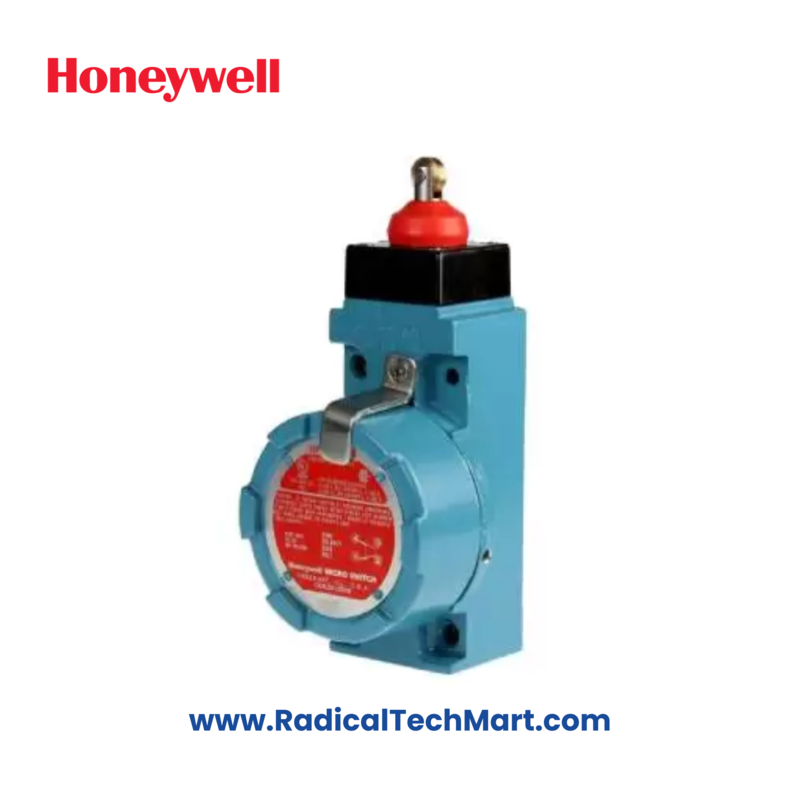

Honeywell BX24D4L Limit Switch – SPDT/DPDT, Multi-Actuator, IP67 Rated

Product Summary:
The Honeywell BX24D4L is an industrial-grade, non-plug-in limit switch available with multiple actuator styles and switching configurations. Built for demanding environments, it features a rugged aluminum or stainless steel housing and NEMA 1, 3, 4, 6, 13 and IP67-rated sealing. Ideal for high-performance safety, motion detection, and automation applications.

Key Features:

• Model: BX24D4L

• Actuator Options:

  • Side/Top pin plungers (adjustable available)

  • Side/Top roller plungers

  • Side/Top rotary (including maintained type)

  • Wobble – cat whisker and plastic rod

• Circuit Configurations:

  • 1NC 1NO SPDT snap action, double break

  • 2NC 2NO DPDT (standard, sequential, center neutral)

  • 3NC 1NO slow action, double break

• Electrical Ratings: 10 A thermal

  • AC15 A600 / DC13 R300

• Housing: Aluminum (BX) or Stainless Steel (BX2)

• Termination: 0.5 in, 0.75 in NPT or 20 mm conduit

• Sealing: NEMA 1, 3, 4, 6, 13 / IP67



Applications:

• Industrial automation and machinery

• Conveyor and material handling systems

• Robotic arms and CNC machines

• Oil & gas processing units

• Packaging and bottling equipment



Product Benefits:

• 🔁 Versatile actuator types to suit various applications

• 🧱 Rugged aluminum or stainless steel housing for long life

• 💧 IP67 and NEMA-rated sealing ensures operation in harsh conditions

• ⚙️ Snap and slow action contact options for control flexibility

• ✅ Suitable for both AC and DC control circuits



FAQs:

Q1: What actuator types are compatible with BX24D4L?
A1: It supports side/top plungers, rotary types, and wobble actuators in fixed and adjustable variants.

Q2: Is this switch suitable for outdoor or washdown applications?
A2: Yes, the switch is sealed to NEMA 6 and IP67 standards for water, oil, and dust protection.

Q3: What are the electrical specs?
A3: 10A thermal rating, supports AC15 A600 and DC13 R300 for both single-
