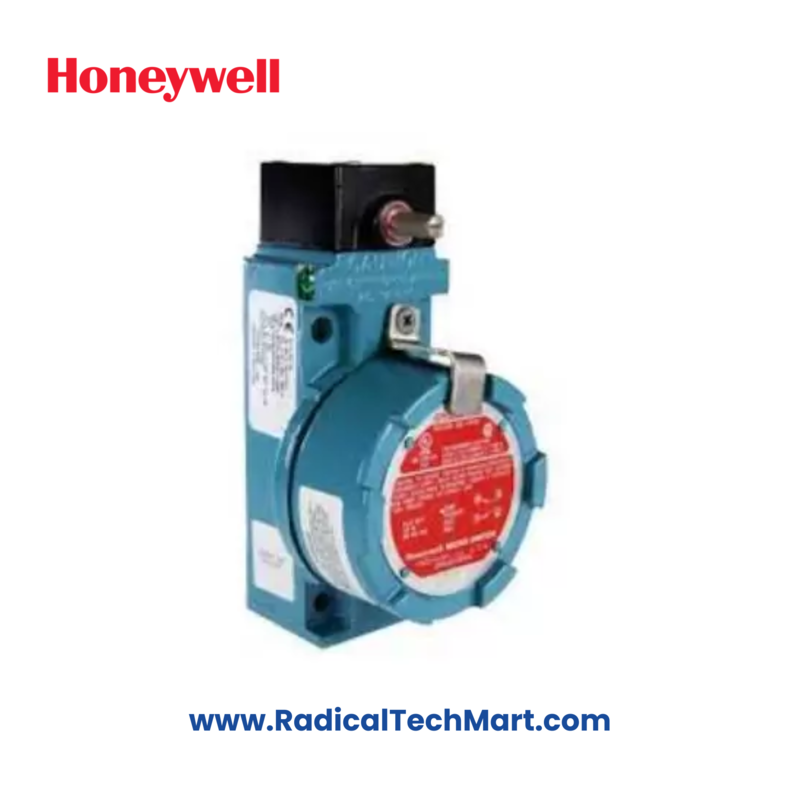

Honeywell BX24P4L Limit Switch – SPDT/DPDT, Multi-Actuator, IP67 Rated
Honeywell BX24P4L limit switch with multiple actuator and circuit options, rugged IP67-rated housing for harsh industrial environments.
Product Summary:
The Honeywell BX24P4L is a robust, industrial-grade limit switch engineered for demanding environments. It features configurable actuator types including plunger, rotary, and wobble, and supports SPDT/DPDT snap-action circuitry. Built in a durable aluminum or stainless steel housing with NEMA 1, 3, 4, 6, 13 and IP67 sealing, this model ensures reliable operation in automation, motion control, and safety systems.
Key Features:
Model: BX24P4L
Actuator Types Available:
Side/Top pin plunger (adjustable available)
Side/Top roller plunger
Side/Top rotary (standard and maintained)
Wobble actuators – cat whisker / plastic rod
Circuit Configurations:
1NC 1NO SPDT snap action, double break
2NC 2NO DPDT (standard, sequential, center neutral)
3NC 1NO slow action, double break
Electrical Rating: 10A thermal
AC15 A600 / DC13 R300
Housing Material: Aluminum (BX) or Stainless Steel (BX2)
Conduit Termination: 0.5 in, 0.75 in NPT, or 20 mm
Sealing: NEMA 1, 3, 4, 6, 13 / IP67
Applications:
Conveyor and material handling systems
Packaging and bottling machinery
Robotics and CNC automation
Oil & gas processing and valve control
Machine safety interlocks
Product Benefits:
⚙️ Supports wide actuator & circuit configuration range
🧱 Rugged construction for industrial-grade durability
💧 IP67/NEMA 6 sealing for moisture, dust, and oil resistance
🔌 Compatible with both AC and DC load switching
✅ Ideal for high-reliability automation and safety tasks
FAQs:
Q1: What actuator types are compatible with the BX24P4L model?
A1: It supports plungers, rotary actuators (standard/maintained), and wobble arms in multiple configurations.
Q2: Can this limit switch withstand outdoor or wet environments?
A2: Yes, the switch is sealed to NEMA 6 and IP67, suitable for harsh and wet industrial settings.
Q3: What are the electrical and mechanical capabilities?
A3: It supports 10A thermal current and AC15 A600/DC13 R300 ratings with SPDT or DPDT snap/slow action.
