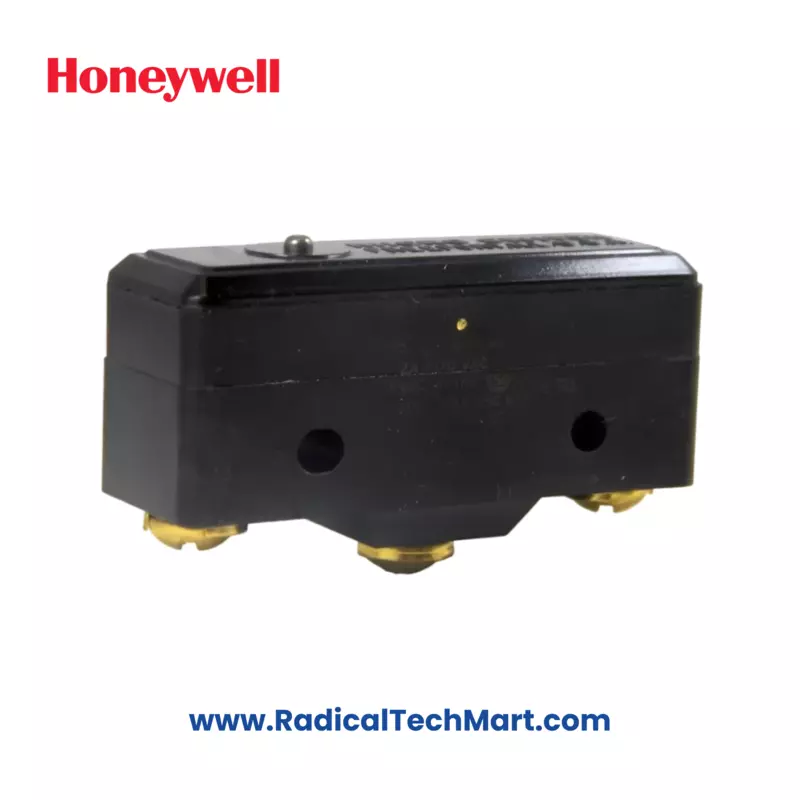

Honeywell BZ-2R-A2 Micro Switch

Product Summary:
The Honeywell BZ-2R-A2 Micro Switch is part of the trusted BZ series, offering long-lasting reliability, precise actuation, and multiple configuration options. Designed for demanding industrial applications, this switch delivers consistent performance in harsh environments.

Key Features:

• Model: BZ-2R-A2 – pin plunger type

• Operating force: 1.0 oz to 28 oz

• Termination: Quick-connect, solder, or screw terminals

• Voltage: 125/250 Vac and 125/250 Vdc

• Actuator options: Pin plunger, roller, flexible leaf, etc.

• Contact types: Silver, silver cadmium oxide, gold alloy

• Environmental sealing option available (up to IP64)

• Operating temperature range: -55 °C to 85 °C

• Contact resistance: ≤15 mΩ (initial)

• Approvals: UL, CSA, CE, ENEC (depending on model)

Applications:

• Packaging machinery limit detection

• CNC machines & robotic systems

• Safety interlocking systems

• HVAC unit component feedback

• Material handling automation

Product Benefits:

• Precision switching with low operating force

• Multiple actuator & contact material choices

• Robust housing with optional sealing

• Global certifications for safe industrial use

• Versatile for custom or OEM assemblies

FAQs:

Q1: What termination types are available for the BZ-2R-A2 switch?
A1: It supports quick-connect, solder, and screw terminals to suit different mounting needs.

Q2: Can this micro switch be used in outdoor environments?
A2: Yes, models with IP64 environmental sealing can be used in dusty or mildly wet conditions.

Q3: What kind of actuators does this switch support?
A3: It comes with options like pin plunger, overtravel plunger, roller, flexible leaf roller, and more.
