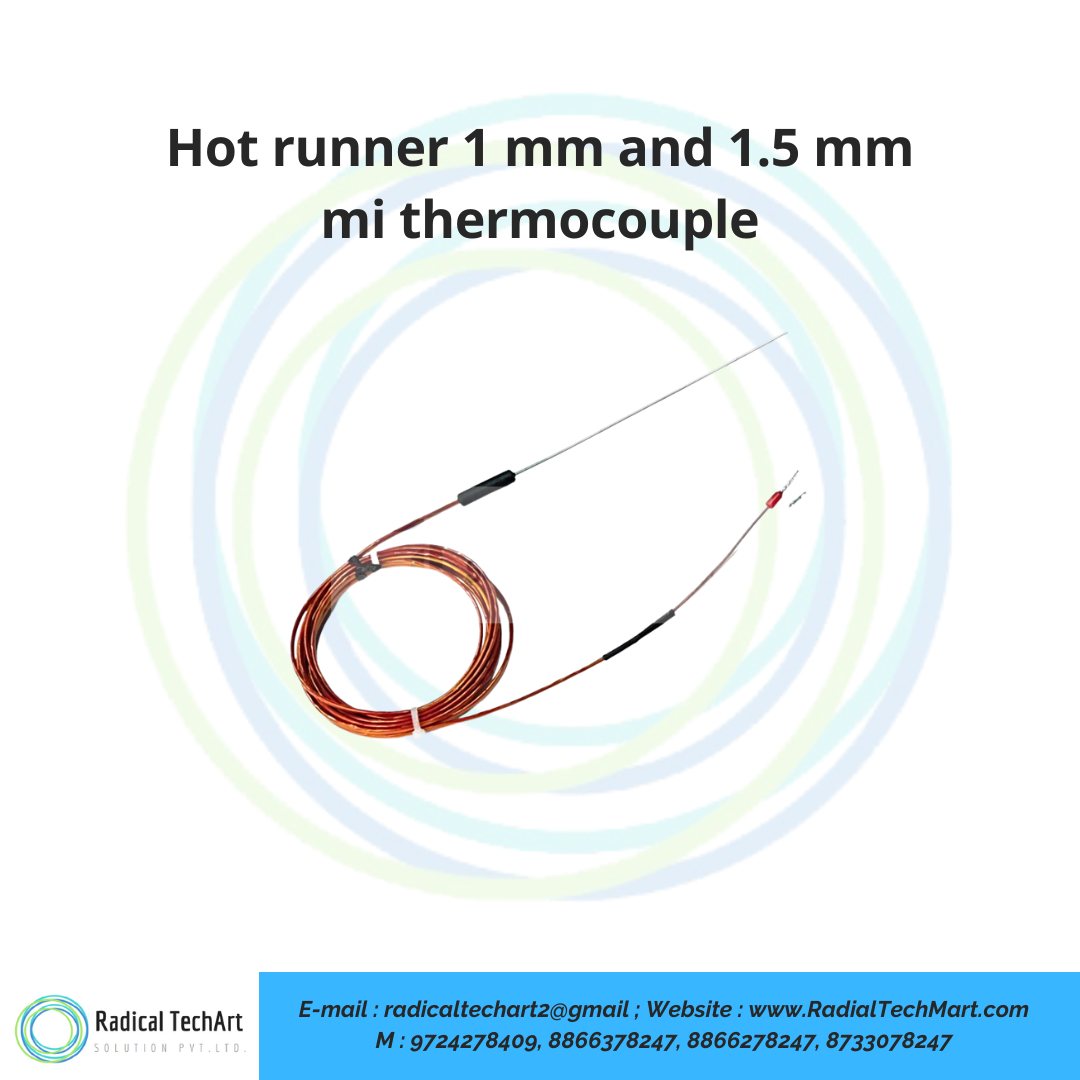

Hot Runner MI Thermocouple 1 mm and 1.5 mm for Injection Moulding

A. Product Overview

A Hot Runner MI Thermocouple is designed for temperature measurement in hot runner systems used in plastic injection moulding machines. In a hot runner system, plastic must remain in a molten condition while flowing through the mould. For this, accurate temperature monitoring is very important.

This thermocouple is suitable for hot runner nozzles, manifolds, mould cavities, sprue bushings and other compact heating zones where space is limited. It is available in small sheath sizes such as 0.5 mm, 1 mm, 1.5 mm and 2 mm, making it useful for narrow and difficult installation areas.

The thermocouple can be made with Type J or Type K sensing elements and sheath materials such as SS310, SS316 and Inconel, depending on the temperature and application requirement. It is suitable for temperatures up to 800°C.

B. Working Principle

A hot runner thermocouple works on the thermoelectric principle. It has two different metal wires joined at the sensing tip. When the sensing tip is exposed to heat, it generates a small voltage signal according to the temperature.

This signal is sent to a temperature controller or PID controller. The controller reads the temperature and controls the heater output. If the temperature drops, the controller increases heating. If the temperature rises above the set value, it reduces or switches off the heating.

In this way, the thermocouple helps maintain a stable temperature inside the hot runner system.

C. Why It Is Used

Hot runner thermocouples are used because temperature control is critical in plastic injection moulding. If the temperature is too low, the plastic may not flow properly. If the temperature is too high, the plastic may burn, degrade or create poor quality parts.

This thermocouple helps in:

Maintaining accurate hot runner temperature

Improving plastic flow inside the mould

Reducing part rejection and material wastage

Protecting the mould and hot runner system

Improving production speed and cycle time

Getting consistent product quality

Monitoring nozzle, manifold and mould heating zones

Supporting precise temperature control in compact areas

D. Suitable Buyers

This product is suitable for:

Plastic injection moulding machine users

Hot runner mould manufacturers

Plastic component manufacturers

Tool room and mould maintenance teams

Automobile plastic part manufacturers

Packaging product manufacturers

Electrical and electronics plastic part manufacturers

Medical plastic component manufacturers

OEMs using hot runner moulds

Machine maintenance engineers

Process control engineers

Plastic machinery suppliers

Temperature sensor dealers and distributors

FAQ

1. What is a hot runner thermocouple?

A hot runner thermocouple is a temperature sensor used to measure and control temperature inside hot runner systems of plastic injection moulding machines.

2. Where is this thermocouple used?

It is mainly used in hot runner nozzles, manifolds, sprue bushings, moulds and heating zones of injection moulding machines.

3. Which thermocouple types are available?

Hot runner thermocouples are commonly available in Type J and Type K, depending on the temperature range and application requirement.

4. What is the temperature range of this thermocouple?

This thermocouple can be suitable for temperatures up to 800°C, depending on the design, sheath material and cable selection.

5. What sheath sizes are available?

Common sheath sizes include 0.5 mm, 1 mm, 1.5 mm and 2 mm. These small sizes make the thermocouple suitable for compact hot runner applications.

6. Which sheath materials are used?

Sheath materials such as SS310, SS316 and Inconel can be used depending on the working temperature, environment and customer requirement.

7. Why is temperature control important in hot runner systems?

Proper temperature control helps keep plastic in molten condition, improves flow, reduces defects and maintains consistent moulding quality.

8. Can this thermocouple be customized?

Yes, hot runner thermocouples can be customized based on sheath diameter, wire length, junction type, cable insulation, material and termination requirement.

9. What happens if the hot runner temperature is not controlled properly?

Improper temperature control can cause poor plastic flow, burning, short moulding, flash, rejection, material wastage and damage to the hot runner system.

10. Who should buy this product?

Plastic moulding companies, hot runner mould makers, maintenance teams, OEMs, machine builders and plastic processing industries can use this thermocouple.
