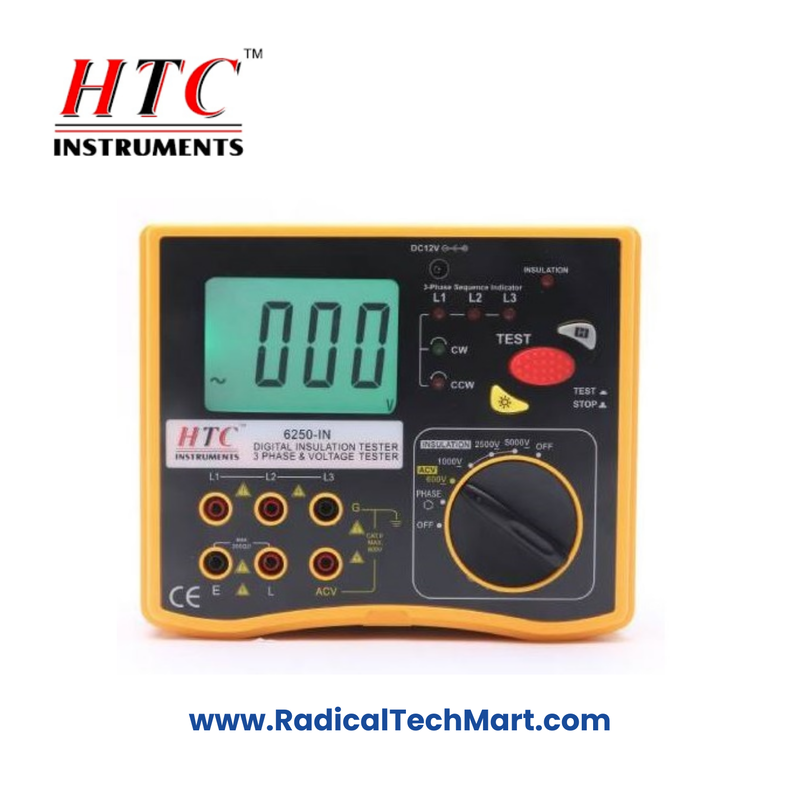

HTC 6250IN Digital Insulation Tester

Product Summary:
HTC 6250IN is a high-performance 3½ digit digital insulation tester designed for precise phase testing, voltage testing, and insulation resistance measurement up to 200 GΩ. Ideal for professional use in electrical installations and industrial maintenance.

Key Features:

• 3½ Digit Digital Display with Backlight

• 1,999 Count Resolution

• Data Hold Function for Measurement Retention

• Auto Ranging Capability

• 3-in-1 Testing: Insulation Resistance, Voltage & Phase

• Selectable Test Voltages: 1000V / 2500V / 5000V

• Wide Measuring Range: 0.1 MΩ to 200 GΩ

• High Accuracy: ±3% to ±10% depending on range

• Powered by 8 x 1.5V AA Batteries

• Supplied with Carry Case, Test Leads, and Manual

Applications:

• Electrical panel testing and maintenance

• High-voltage cable insulation inspection

• Transformer and motor insulation evaluation

• Industrial power system diagnostics

• Utility and plant equipment testing

Product Benefits:

• Multi-functionality reduces need for multiple instruments

• High voltage range supports professional-grade testing

• Data hold helps capture readings in difficult conditions

• Lightweight and compact with a protective hard case

• Enhanced safety and compliance for industrial environments

FAQs:

Q1: What is the insulation resistance range of the HTC 6250IN?
A1: It measures insulation resistance from 0.1 MΩ to 200 GΩ, with selectable test voltages of 1000V, 2500V, and 5000V.

Q2: Is the HTC 6250IN suitable for industrial use?
A2: Yes, it is ideal for industrial and utility-scale applications, including transformer, motor, and high-voltage cable testing.

Q3: What accessories are included with the device?
A3: The standard package includes a hard carrying case, test leads, user manual, and power adaptor.
