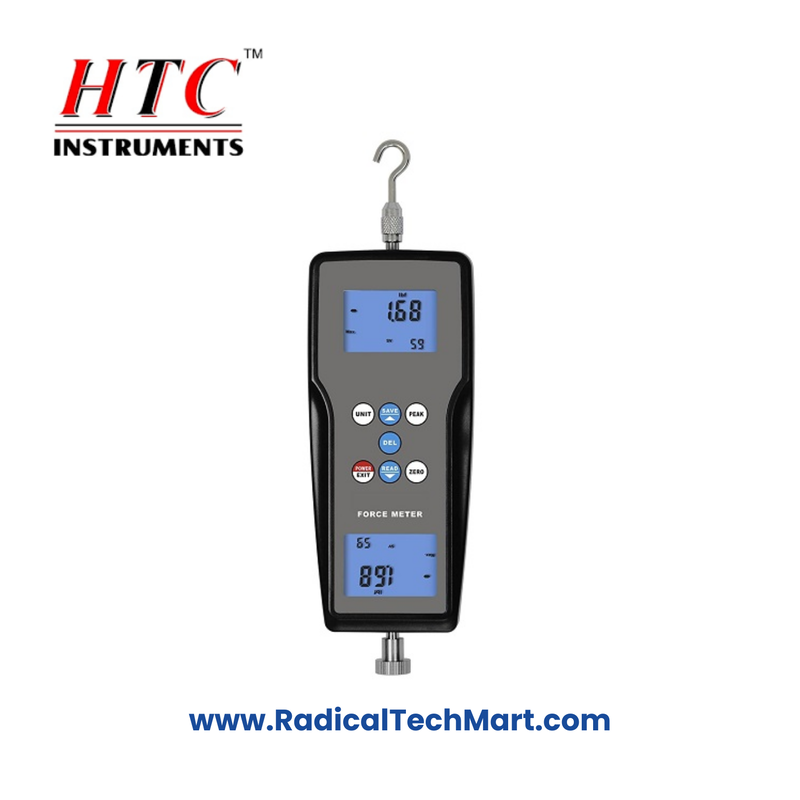

HTC FG-5Kg Force Meter Gauge
Product Summary:
The HTC FG-5Kg Force Meter Gauge is a high-precision digital instrument designed for force measurement in multiple units (kgf, N, lbf) with peak hold and data memory functions, making it ideal for quality testing and industrial force analysis.
Key Features:
±5kgf, ±49 N, ±11 Lbf measurement range
Resolution up to 0.001 kgf / 0.01 N / 0.01 Lbf
High accuracy: ±0.2% FS ±1 digit
Peak value and real-time measurement modes
Blue backlight LCD display (4-digit reversed)
Auto and manual power-off functions
Data memory: stores up to 99 readings
USB & Bluetooth data output
Safe load capacity up to 150% FS with buzzer alert
Applications:
Product testing and QA/QC labs
Mechanical and assembly line inspections
R&D for load/force analysis
Push/pull force measurement in automation
Educational and engineering labs
Product Benefits:
Eliminates reading errors with a clear digital display
Easy unit conversion (N, kgf, lbf) on the fly
Stores critical data for review and reporting
Avoids overload damage with audible alarm system
Portable, efficient, and ideal for multiple industries
FAQ:
Q1: What is the maximum load capacity of the HTC FG-5Kg?
A1: The meter supports up to ±5kgf with a safe load threshold of 150% FS, featuring buzzer alerts over 110%.
Q2: Can I connect the force meter to a computer?
A2: Yes, it supports both USB and Bluetooth data output for PC or mobile analysis.
Q3: Does the meter store measurements?
A3: Yes, it has a memory function capable of saving up to 99 sets of measurement data.
