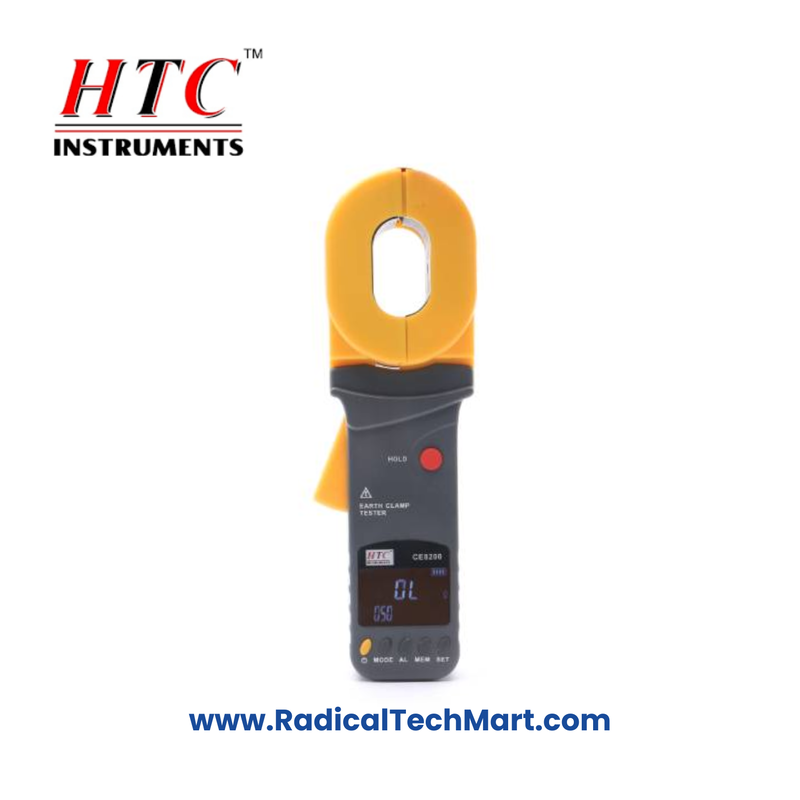

HTC Instruments CE-8200 Clamp on Ground Resistance Tester
Accurately measure ground resistance with HTC CE-8200—compact, clamp-on, and easy to operate.
Customize
Share :
Product Summary:
The HTC Instruments CE-8200 is a high-precision clamp-on ground resistance tester designed for fast, non-intrusive earth resistance measurements with auto power-off and data logging features.
The HTC Instruments CE-8200 is a high-precision clamp-on ground resistance tester designed for fast, non-intrusive earth resistance measurements with auto power-off and data logging features.
Key Features:
4-digit LCD Display with black screen
9,999 count resolution
Measures ground resistance from 0–1000Ω
Conductor size: 55mm x 32mm
Data logging memory up to 300 groups
Measures at 2 times per second
Auto Power Off (APO) feature
Double insulation protection
Spare 1 & 10 test rings for precision testing
Operates on AA 1.5V x 4 batteries
4-digit LCD Display with black screen
9,999 count resolution
Measures ground resistance from 0–1000Ω
Conductor size: 55mm x 32mm
Data logging memory up to 300 groups
Measures at 2 times per second
Auto Power Off (APO) feature
Double insulation protection
Spare 1 & 10 test rings for precision testing
Operates on AA 1.5V x 4 batteries
Applications:
Electrical safety inspections
Ground system maintenance
Lightning protection systems
Utility grounding measurements
Industrial equipment safety testing
Electrical safety inspections
Ground system maintenance
Lightning protection systems
Utility grounding measurements
Industrial equipment safety testing
Product Benefits:
No need to disconnect the ground electrode
Quick and easy field measurement
Enhanced safety with clamp-on design
Portable and durable with a hard carrying case
Reliable memory storage for field data logging
No need to disconnect the ground electrode
Quick and easy field measurement
Enhanced safety with clamp-on design
Portable and durable with a hard carrying case
Reliable memory storage for field data logging
FAQ:
Q1: Can CE-8200 measure both ground resistance and leakage current?
A1: No, the CE-8200 only measures ground resistance. For current measurement, refer to CE-8202.
Q2: What is the maximum resistance it can measure?
A2: The CE-8200 model can measure resistance up to 1000Ω.
Q3: Is it suitable for live testing without disconnecting the ground?
A3: Yes, it uses clamp-on technology, allowing testing without disconnecting ground rods.
Q1: Can CE-8200 measure both ground resistance and leakage current?
A1: No, the CE-8200 only measures ground resistance. For current measurement, refer to CE-8202.
Q2: What is the maximum resistance it can measure?
A2: The CE-8200 model can measure resistance up to 1000Ω.
Q3: Is it suitable for live testing without disconnecting the ground?
A3: Yes, it uses clamp-on technology, allowing testing without disconnecting ground rods.
