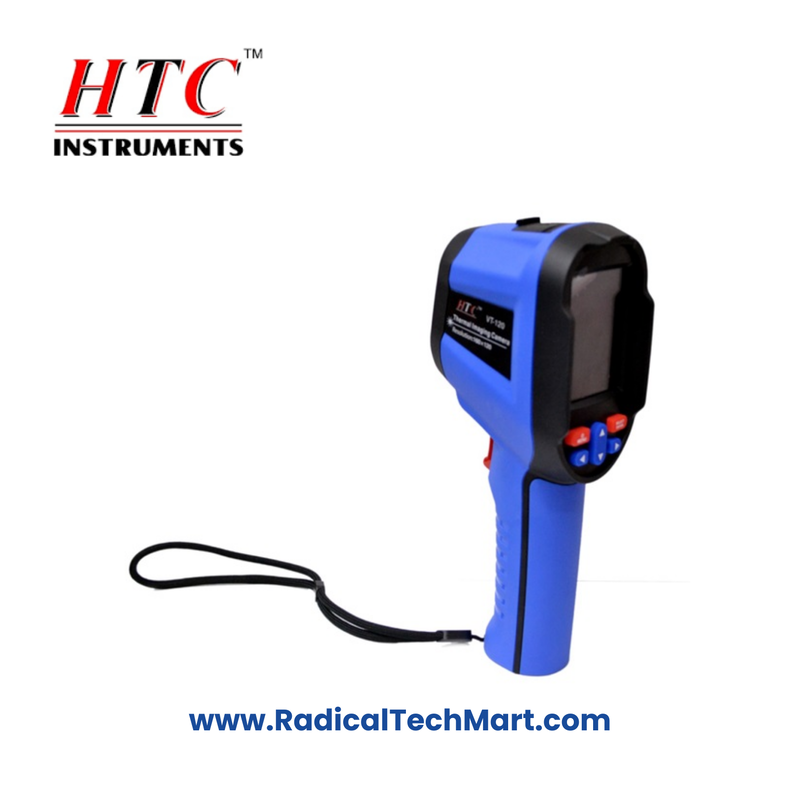

HTC Instruments VT-120 Thermal Imager

Product Summary:
The HTC VT-120 is a compact, professional-grade thermal imager designed for accurate temperature diagnostics with high-resolution infrared detection and dual image fusion technology.

Key Features:

• 160x120 infrared image resolution

• Visual & thermal image fusion (hybrid imaging)

• Built-in 18650 rechargeable lithium battery

• Temperature range: -20°C to +550°C

• 2.8″ TFT color display

• SD card storage for images/videos (JPG/MP4)

• ≤25Hz frame rate & ≤50mK NETD sensitivity

• Adjustable emissivity (0.01 to 1.00)

• Selectable color palettes & LED lighting supplement

• Offline PC analysis support

Applications:

• Electrical panel inspection

• HVAC system diagnostics

• Automotive thermal analysis

• Industrial process monitoring

• Preventive maintenance & troubleshooting

Product Benefits:

• Enhanced image clarity with dual light fusion

• Portable and battery-powered for field use

• Accurate hot/cold spot detection

• Easy data storage and offline analysis

• Reliable for diverse industry needs with wide temp range

FAQ:

Q1: What is the resolution of the thermal sensor in HTC VT-120?
A: It offers an infrared resolution of 160x120 pixels, ensuring detailed thermal imaging for diagnostics.

Q2: Can the HTC VT-120 store captured images or videos?
A: Yes, it stores images in JPG and videos in MP4 format on an SD card.

Q3: Is the emissivity adjustable for different surfaces?
A: Yes, emissivity is adjustable from 0.01 to 1.00, allowing precise readings across various materials.
