Sensor Probe Specifications

• Input: RTD Pt-100, 3-wire for Temperature, Voltage input for Relative Humidity (RH)
• Display: 4-digit 0.56” LED for Temperature, 4-digit 0.39” LED for RH
• Calibration: Through front panel keys
• Accuracy: ±0.25% of Full Scale ±1 count for Temperature, ±3% for RH
• Resolution: 0.1°C for Temperature, 0.1% for RH
• Output (Optional): One relay per set point
• No. of Set Points: Two, programmable as High and Low
• Relay Contact Rating: 3 A @ 230 V AC
• Response Time: Less than 1 second
• Power Supply: 110 or 230 VAC, 50 Hz (factory set for one)
• Mounting: Flush panel mounting
• Ambient Operating Temperature: 0 to 55°C
• Humidity: Up to 95% non-condensing
• Enclosure Protection: IP20
• Dimensions: Bezel 96 x 96 mm, Panel Cutout 92 x 92 mm
• Terminals: Barrier type, suitable for up to 2.5 sq.mm cable
• Optional Communication: RS-232 / RS-485 Serial Port

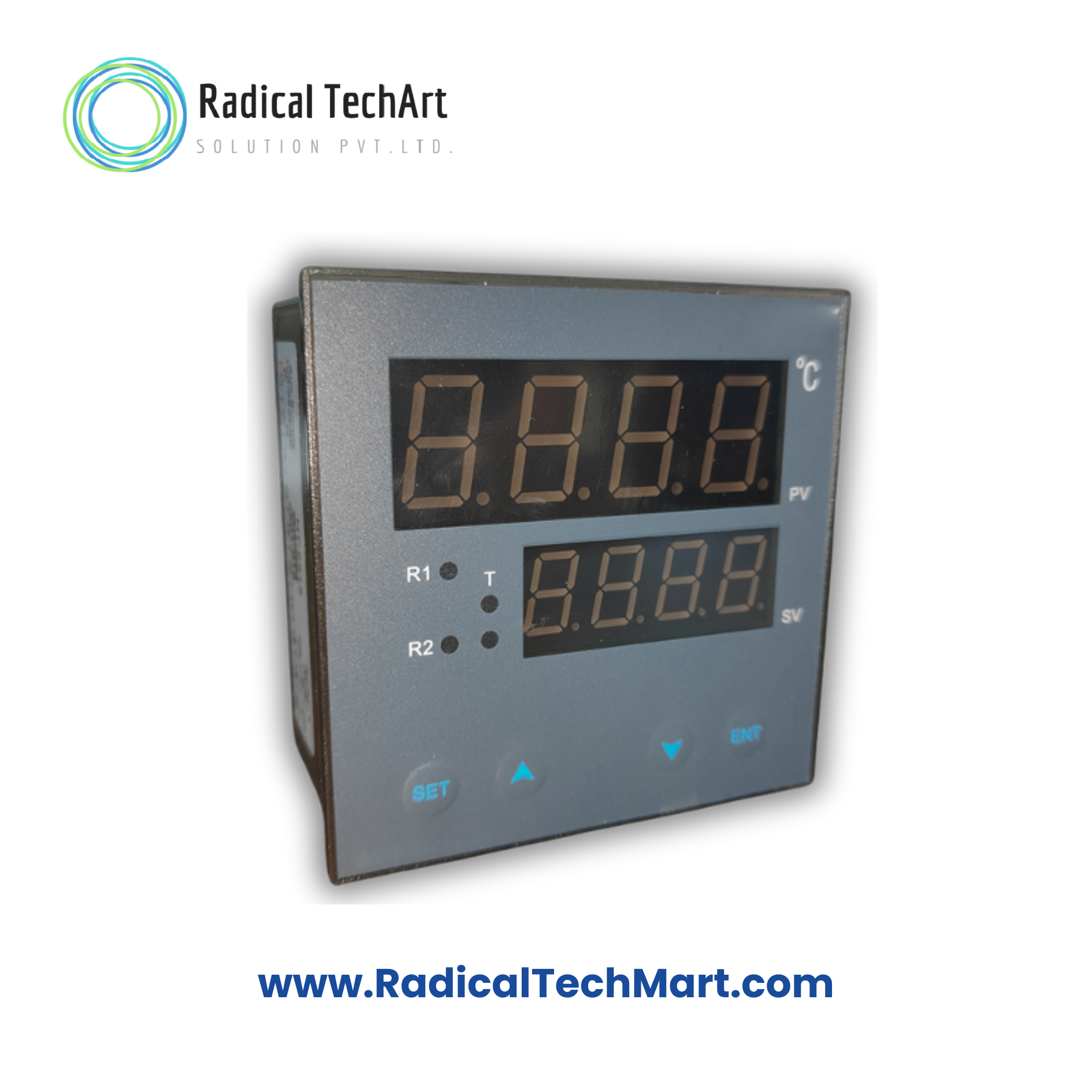

Humidity and Temperature Controller with Honeywell Humidity sensor
