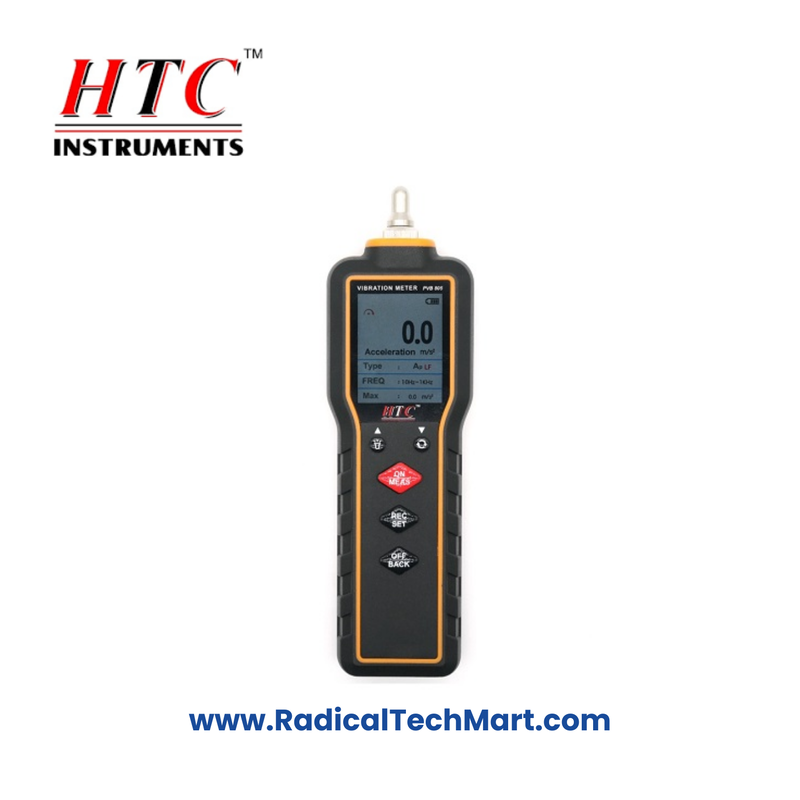

PVB-805 Vibration Meter

Product Summary:
The PVB-805 Vibration Meter provides accurate and quick measurements of vibration parameters with a piezoelectric sensor. It’s ideal for preventive maintenance and machinery monitoring.

Key Features:

• Piezoelectric Accelerated Sensor for precise measurements

• Measuring Range: Acceleration (0.1199.9 m/s²), Velocity (0.1199.9 mm/s), Displacement (0.001~1.999 mm)

• Frequency Range: Wide range for acceleration (10Hz~10KHz)

• 200 Sets Storage Capacity

• 500ms Data Refresh Time

• Battery Life: More than 4 hours of continuous use

• Compact Dimensions: 1765425mm, lightweight (121g)

Application:

• Used for machinery vibration monitoring and diagnostics

• Ideal for industrial equipment health checks

• Suitable for use in factories, plants, and maintenance workshops

Product Benefits:

• Accurate Measurements: Ideal for detecting machine wear and failure risk

• Portable Design: Lightweight and easy to handle for field use

• Long Battery Life: Suitable for extended use without frequent battery changes

• Wide Frequency Range: Works for both low and high-frequency vibration analysis

FAQ:

Q. What is the measurement range of the PVB-805 Vibration Meter?
The PVB-805 measures acceleration (0.1199.9 m/s²), velocity (0.1199.9 mm/s), and displacement (0.001~1.999 mm), making it suitable for diverse industrial applications.

Q. How long does the battery last on the PVB-805 Vibration Meter?
The device offers a battery life of over 4 hours with continuous use, powered by two 1.5V AAA batteries.

Q. What are the operating conditions for the PVB-805?The device operates within a temperature range of 0°C to 50°C and humidity levels from 20%RH to 80%RH, making it versatile for various environments.
