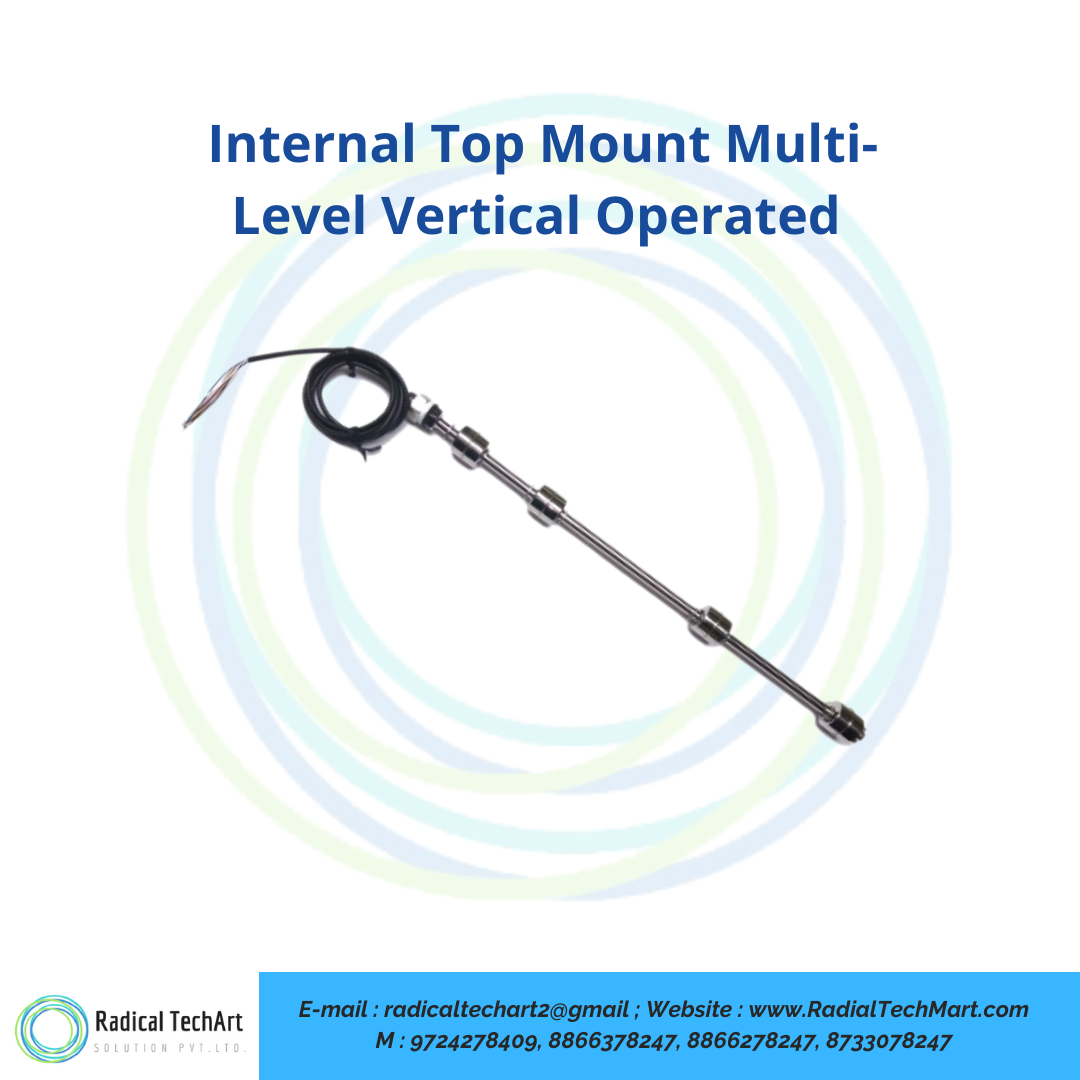

Internal Top Mount Multi-Level Vertical Operated Series
₹0.00
Product Details

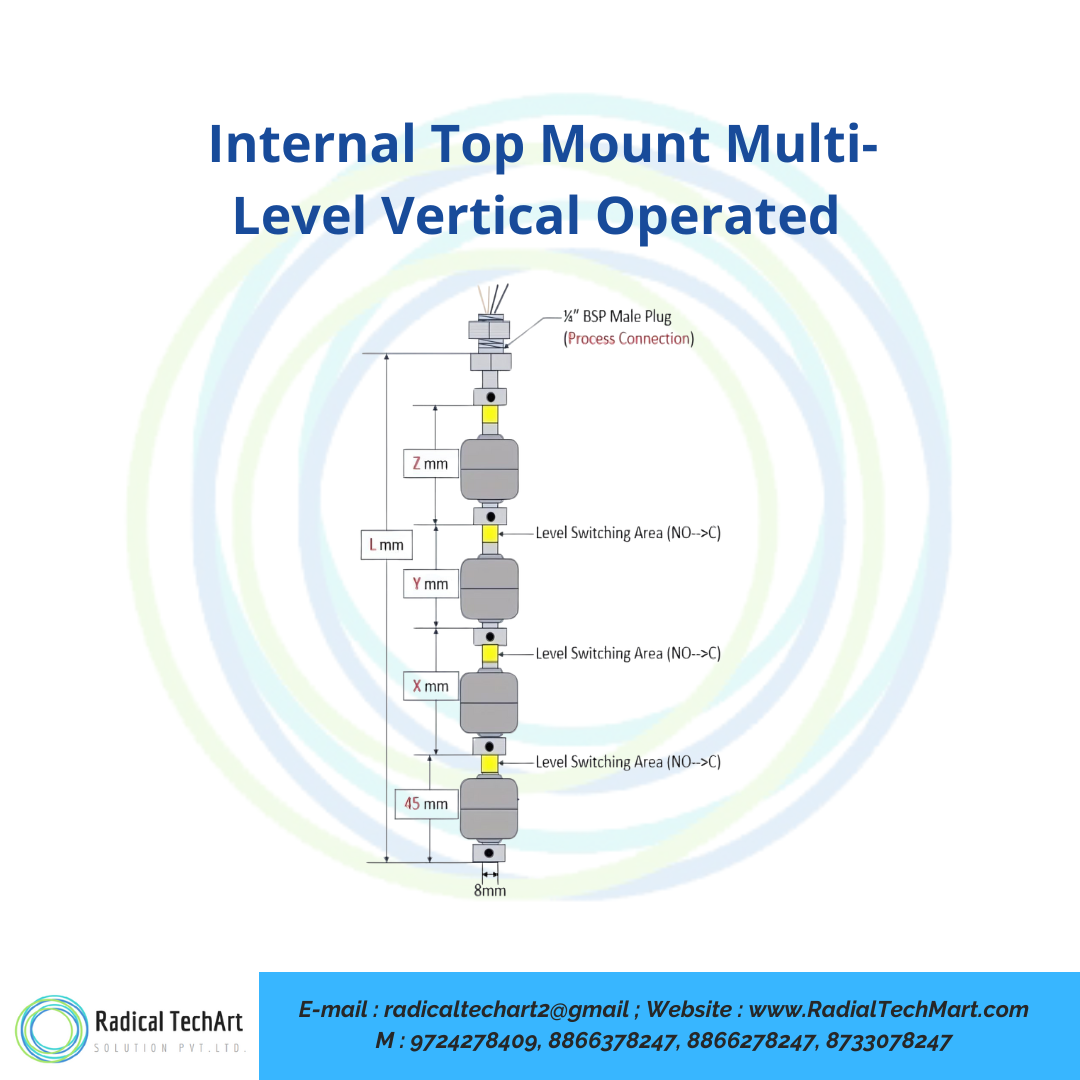

Internal, top mount, reliable switching device. The compact design allows the user to configure the switch action as per application. Switching action can be reversed by removing the float, inverting & refitting it on the stem. Standard mounting is 1/4” BSP and can be customized as per application. Versions can be directly interfaced with contactor loads. Switches can also be customized for multiple switching points, maximum of 5 Levels can be accommodated as per user & application demand. Devices are available in full SS construction, with stem & float In SS ,or hybrid version of SS Stem and plastic floats. Plastic parts can be made available in Nylon or Polypropylene as per application demands.
Application included in industrial process units are:
-Underground tanks
- Industrial cleaning units
- Water reservoir tanks
- Liquid level sensing
- Fuel tanks
