Product Details
| Power Supply | 24VDC ±10% (21.6VDC to 26.4VDC) @ 5W |
| Program Capacity | 8K programming instructions |
| Data Capacity | MZone: 4K Bytes VZone: 16K Bytes |

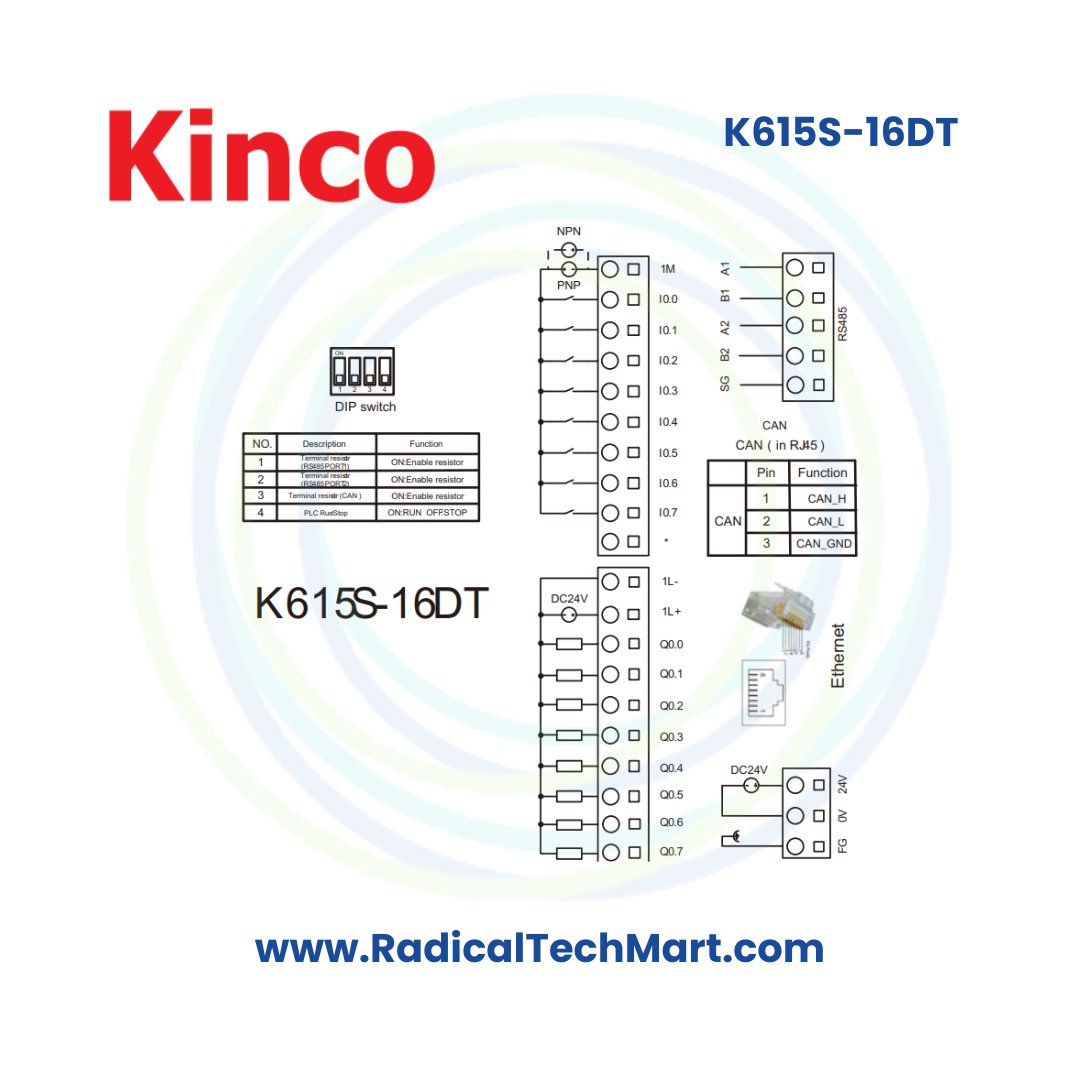

| Integrated I/O | 8 Digital Inputs: Source/Sink Type, DC24V, Maximum Allowable DC30V 8 Digital Outputs: Transistor PNP Output, 300mA @ 24VDC |
| High-speed Input | 4 channels of high-speed pulse input, supports PWM function. For 3 channels, the maximum frequency is 200kHz (load current greater than 20mA). For 1 channel, the maximum frequency is 10kHz. |
| High-speed Output | 4 channels of high-speed pulse output, supports AB phase, P (pulse)/D (direction) mode. For 3 channels, the maximum frequency is 200kHz for single-phase or 10kHz for double-phase. For 1 channel, the maximum frequency is 20kHz. |
| RS485 | 2 RS485 ports (isolated, integrated termination resistor). Supports Modbus RTU master/slave and free communication protocols. |
| Ethernet | 1 Ethernet port, supports Modbus TCP Client/Server industrial bus protocol. Supports free transmission in TCP client/server mode, UDP peer mode, program upload/download, and firmware upgrades. |

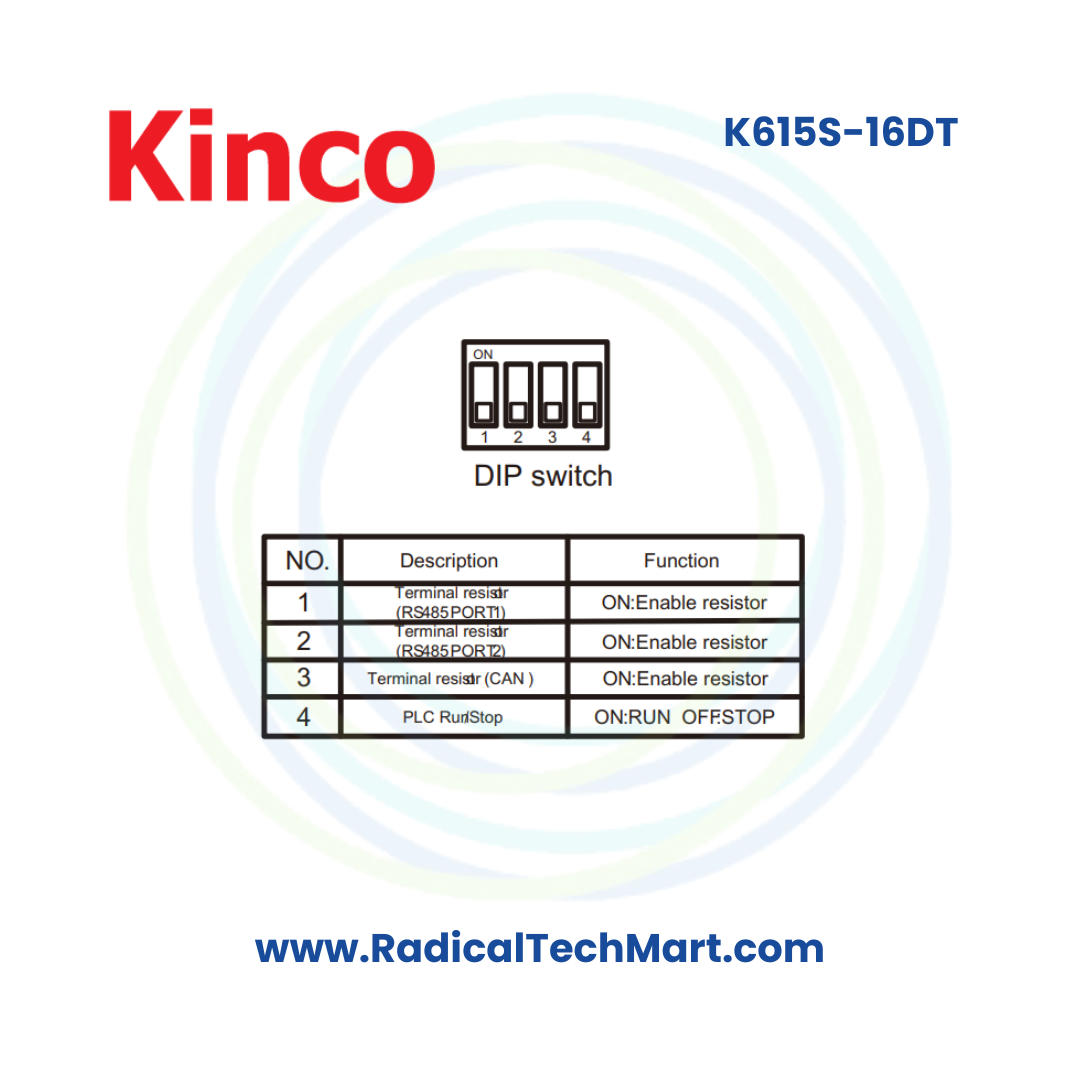

| CAN | 1 CAN (RJ45, with terminal resistor). Supports CANOPEN, free communication in CAN, Kinco motion control functions. Supports a maximum of 16 connected nodes. |
| Expansion | Supports connecting up to 16 K6S-series expansion modules. |
| Power-off Retention | V Zone: 1908 bytes (V80-VB1907) C Zone: C0-C63 |
| RTC | Real-Time Clock (RTC) with an error of less than 5 minutes per month at 25°C. |

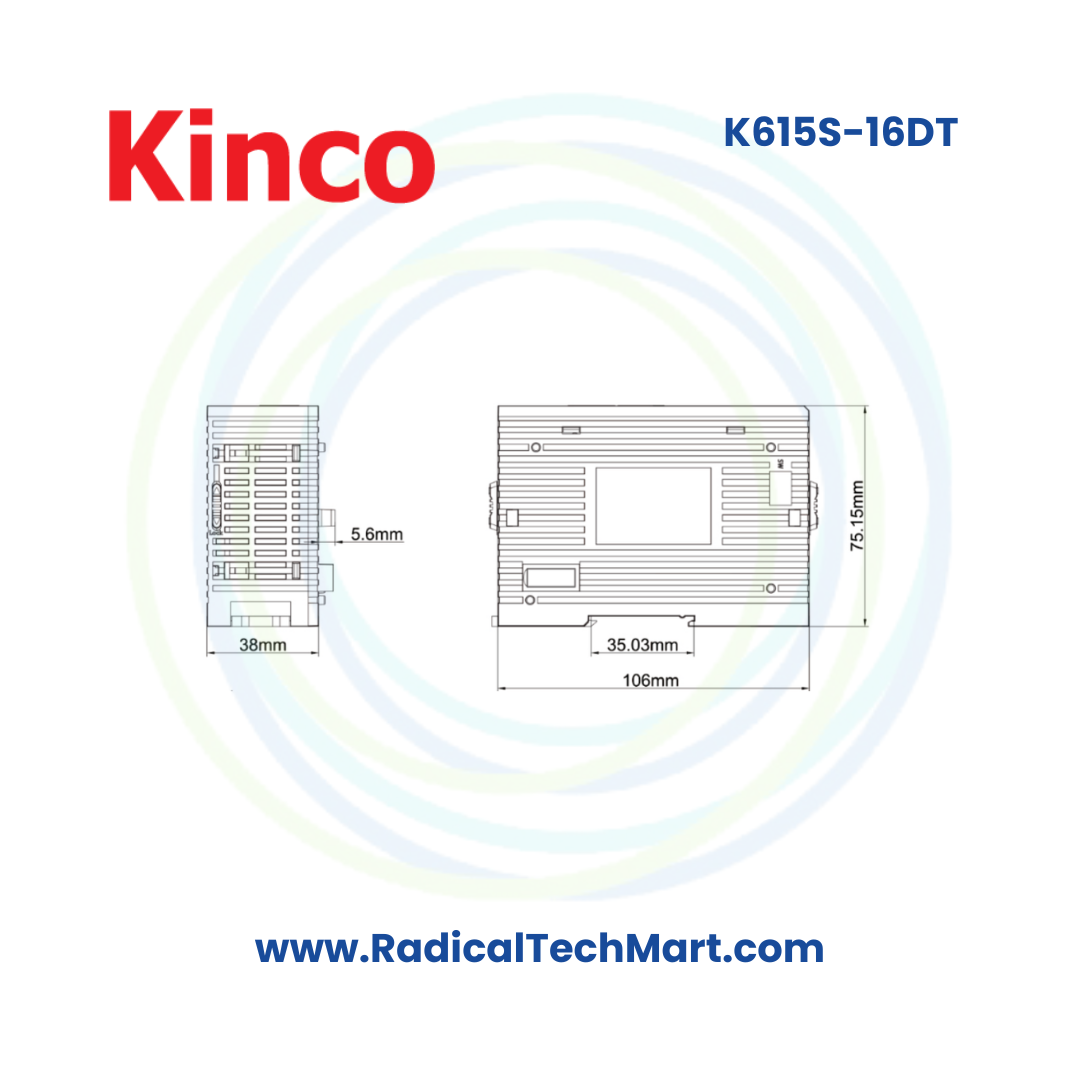

| Dimensions | 38.0mm x 75.15mm x 106.0mm |
| Certification | CE (EN IEC 61000-6-4:2019, EN IEC 61000-6-2:2019) |
