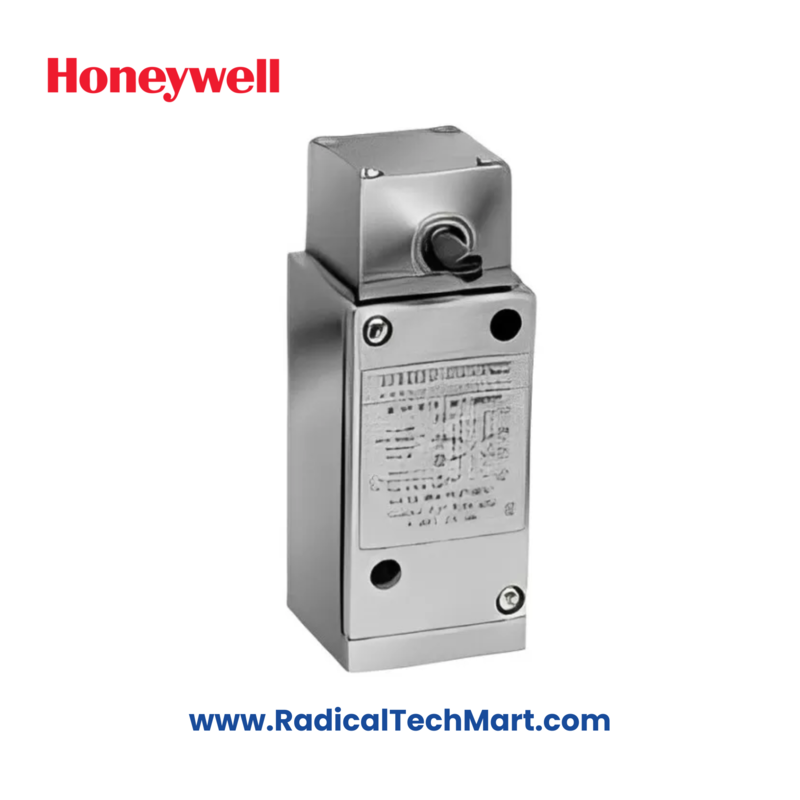

LS2C4L Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | LS2C4L |
| Certifications | UL, CSA, CE, CCC |
| Housing material | 316 Series stainless steel |
| Termination | 0.5-14 NPT, 0.75-14 NPT Factory wired with or without epoxy encapsulated body; 1,5 mm2 (16 AWG) cable SPDT with 5-conductor cable Ø12,7 mm [0.5 in] DPDT with 9-conductor cable Ø15,7 mm [0.62 in] |
| Contact options | 1NC/1NO, 2NC/2NO, 2NC/2NO center neutral, 2NC/2NO sequential |
| Contact type | Snap-action double break (form Za); Same polarity each pole |
| Contact material | Silver alloy (standard), gold-plated (low-energy applications) |
| Utilization category | AC15, A600; DC13, R300 |
| Rated operational voltage (Ue) | 600 Vac; 250 Vdc |
| Rated operational current (Ie) | 1.2 A, 0.1 A |
