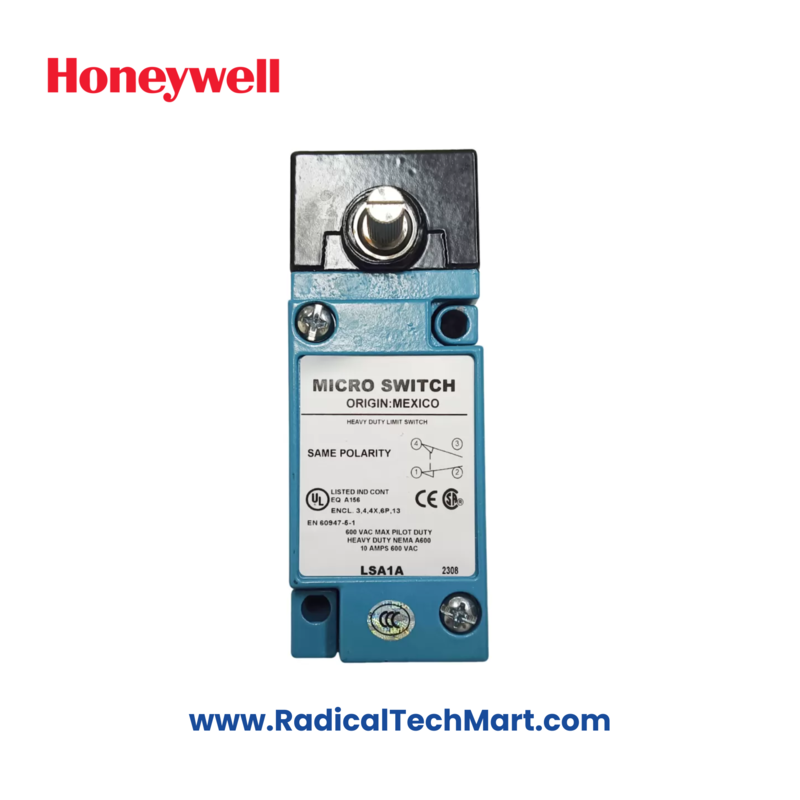

LSA1A Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model no. | LSA1A |
| Product type | MICRO SWITCH heavy-duty limit switches |
| Certifications | UL, CE, CSA, CCC |
| Reference standards | UL508, CSA 22.2 #14, EN/IEC60947-5-1, GB 14048.5 |
| Housing material | Electrostatic epoxy coated zinc |
| Housing type | HDLS Plug-in, HDLS Non-Plug-in |
| Acutators/heads | Side rotary, CW and CCW, momentary |
| Contact type | Snap action double break (form Za) same polarity each pole |
| Contact material | Silver alloy (standard), optional gold-plated (low energy applications) |
| Utilization category | AC-15, A600; DC-13, R300 (electrical ratings on page 5) |
| Rated operational voltage (Ue) | 600 Vac, 250 Vdc |
| Rated operational current (Ie) | 1.2 A, 0.1 A |
| Rated thermal current | 10 A, 2.5 A |
| Short circuit protection device (SCPD) type and rating | Class J fuse, rated 10 A, 600 V |
| Pollution degree | 3 |
| Sealing | IP65/66/67; NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 |
| Operating temperature1 | -12°C to 121°C [10°F to 250°F]; optional: -40°C to 121°C [-40°F to 250 ’F] |
| Vibration | 10 g conforming to IEC 60068-2-6 |
| Shock (actuator not fitted) | 50 g conforming to IEC 60068-2-27 |
