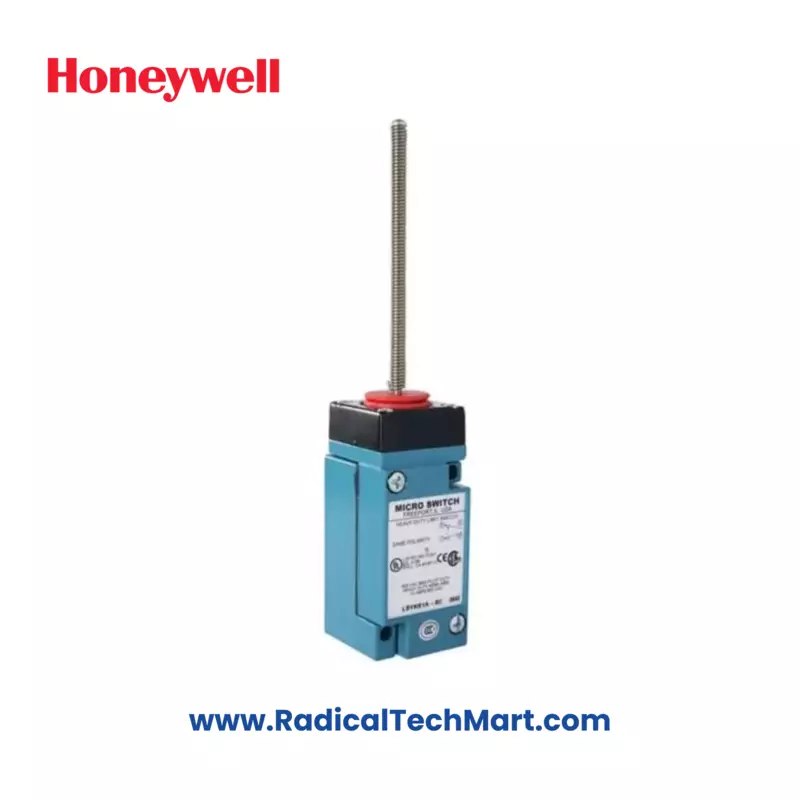

LSYKB1A-8C Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | LSYKB1A-8C |
| Certifications | UL, CSA, CE, CCC |
| Housing material | Electrostatic epoxy coated zinc |
| Circuitry | 1NC 1NO SPDT snap action, double break 2NC 2NO DPDT center neutral, snap action, double break 2NC 2NO DPDT snap action, double break 2NC 2NO DPDT sequential, snap action, double break |
| Rated thermal current | 10 A, 2.5 A |
| Contact type | Snap-action double break (form Za); Same polarity each pole |
| Contact material | Silver alloy (standard), gold-plated (low-energy applications) |
| Utilization category | AC15, A600; DC13, R300 |
| Rated operational voltage (Ue) | 600 Vac; 250 Vdc |
| Rated operational current (Ie) | 1.2 A, 0.1 A |
